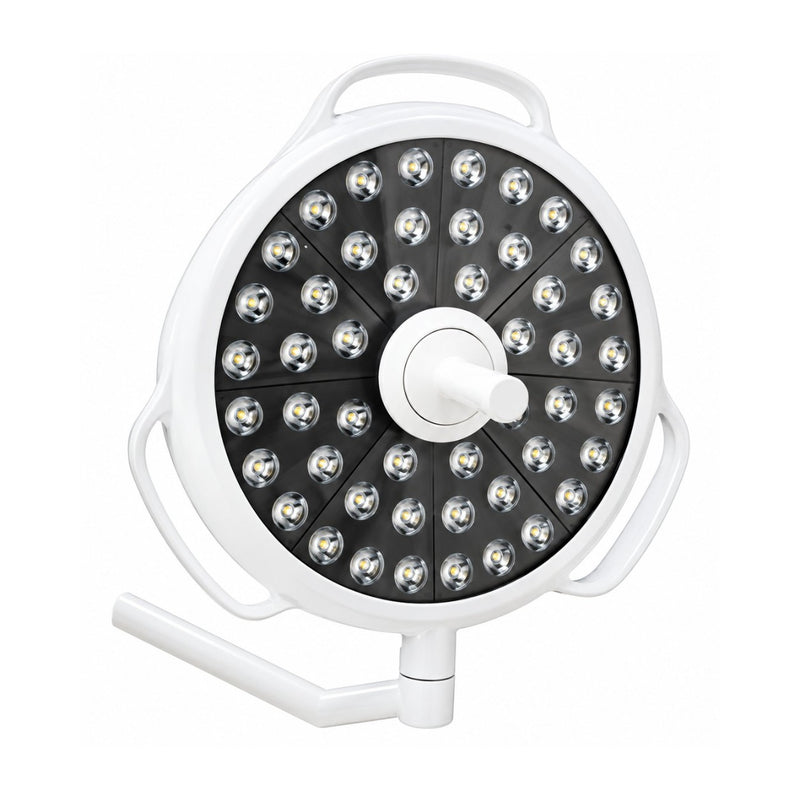

The Medinain Eva-500 Single Dome OT Light is a single-dome LED operating theatre light featuring an ultra-slim, streamlined lamp head designed for modern surgical and clinical environments.
The Eva-500 provides 150,000 Lux illumination through 48 LEDs, with a 100–150 mm spot diameter and 10–25 cm depth. It features 10–100% digital intensity control, dual memory function, 3800–4800K colour temperature, CRI 93 Ra, and an LED average life of more than 50,000 hours.
The supplied product description lists optional functions including shadow compensation, a handheld wireless remote controller, smooth light focus adjustment, and mutual control for both lamp heads. Since the Eva-500 configuration supplied here is Single Dome, these optional functions should be confirmed for the exact configuration before purchase.
✅ Key Features
- Single-dome OT LED surgical light
-
150,000 Lux illumination
- 48 LEDs
- 10–100% digital intensity control
- Dual memory function
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Depth: 10–25 cm
- LED average life: >50,000 hours
- 533 mm lamp diameter
- 220V/50Hz AC power supply
- 38.4W power consumption
- Ultra-slim, streamlined lamp-head design
- Optional shadow compensation
- Optional handheld wireless remote controller
- Optional smooth light-focus adjustment
- Optional mutual control function for lamp heads, subject to configuration
Ultra-Slim Streamlined Lamp Head
The Eva-500 uses an ultra-slim, streamlined lamp head. The design is intended for modern operating-theatre environments while providing high-intensity LED illumination.
The supplied light-head diameter is 533 mm.
150,000 Lux LED Illumination
The Eva-500 provides a specified illumination intensity of 150,000 Lux from its single-dome configuration.
The system uses 48 LEDs, with an average LED life specified at more than 50,000 hours.
Digital Intensity Control
The Eva-500 provides 10–100% digital intensity control, allowing the illumination level to be adjusted according to procedural requirements.
The system also includes a dual memory function for storing and recalling preferred illumination settings.
Optional Functions
The supplied product description identifies several optional functions:
- Shadow Compensation
- Handheld Wireless Remote Controller
- Smooth Light Focus Adjustment
- Mutual Control for Both Lamp Heads
- Other optional functions depending on configuration
Because this listing is specifically for the Eva-500 Single Dome, optional features should be confirmed according to the exact supplied configuration.
Light Field & Focusing
The supplied specifications include:
| Parameter |
Specification |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Manual / Fixed* |
*The supplied specification states “Focusing Manual” and “Fixed” in the source row. This wording has been retained rather than assuming how the two terms relate.
Colour Temperature & CRI
The Eva-500 provides a 3800–4800K colour temperature range and a Colour Rendering Index of 93 Ra.
These specifications define the stated colour characteristics of the surgical light.
Technical Specifications
| Specification |
Eva-500 Single Dome |
| Model |
Eva-500 |
| Configuration |
Single Dome |
| Light Type |
LED OT / Surgical Light |
| Intensity |
150,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual / Fixed* |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
48 |
| Diameter of Light |
533 mm |
| Intensity Control |
10–100% Digital |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
38.4W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
