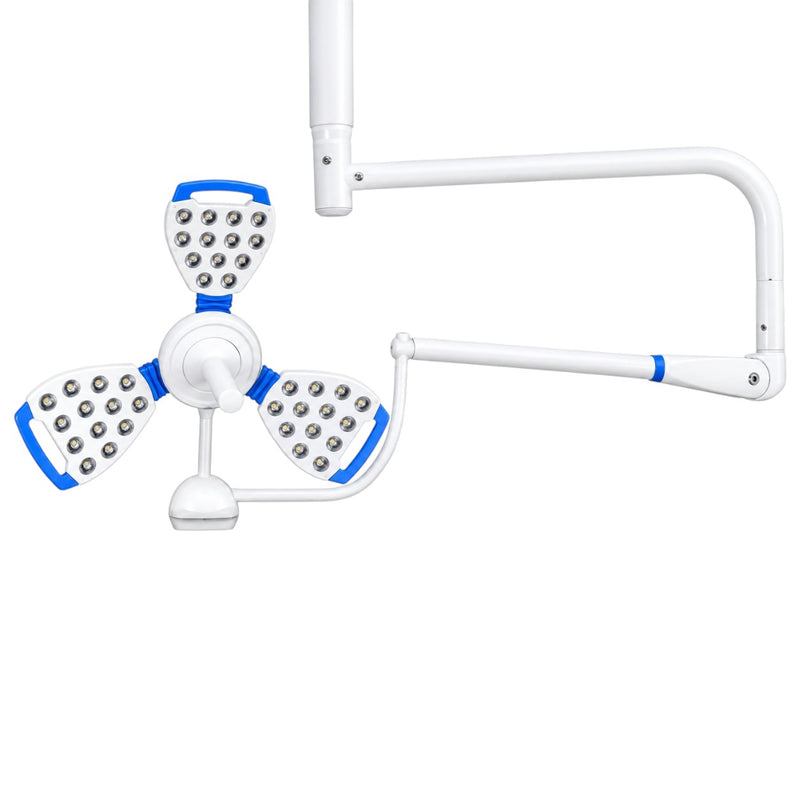

The Medinain Flare-3 is an advanced LED surgical operating theatre (OT) light from the Flare series, designed to provide high-intensity illumination for surgical procedures. It combines a high-definition optical system with a quick-response digital touch panel for convenient control of light intensity.
The streamlined lamp design is intended to minimize disruption to laminar airflow in the operating theatre, while the lightweight construction enables easy positioning and stable placement during surgical procedures.
Product Overview
The Medinain Flare-3 provides a specified illumination intensity of 125,000 Lux and uses 39 LEDs. It features a 711 mm light diameter, 3800–4800 K color temperature, and 93 Ra Color Rendering Index.
The light provides 10–100% digital touch intensity control, manual focusing, and a specified LED average life of more than 50,000 hours. A dual memory function is also included.
✅ Key Features
- Advanced LED surgical OT light
- Illumination intensity: 125,000 Lux
- 39 LEDs
- High-definition optical system
- Quick-response digital touch panel
- 10–100% digital touch intensity control
- Manual focusing
- Color temperature: 3800–4800 K
- CRI 93 Ra
- LED average life of >50,000 hours
- Light diameter: 711 mm
- Spot diameter: 100–150 mm
- Depth diameter: 10–25 cm
- Streamlined design intended to minimize laminar airflow disruption
- Lightweight construction for easy positioning
- Dual memory function
- 220V/50Hz AC power supply
- Power consumption: 31.2 W
High-Intensity Surgical Illumination
The Medinain Flare-3 provides a specified illumination intensity of 125,000 Lux.
Its optical specifications include:
-
Spot diameter: 100–150 mm
-
Depth diameter: 10–25 cm
-
Light diameter: 711 mm
These specifications define the supplied illumination characteristics of the surgical light.
Digital Touch Intensity Control
The Flare-3 incorporates a quick-response digital touch panel integrated with its high-definition optical system.
The specified intensity control range is 10–100%, allowing the operator to adjust the illumination level according to procedural requirements.
Dual Memory Function
The Flare-3 includes a dual memory function for convenient access to stored lighting settings.
High-Definition Optical System
The Flare-3 uses a high-definition optical system with:
-
Color temperature: 3800–4800 K
-
Color Rendering Index: 93 Ra
-
Focusing: Manual
-
Spot diameter: 100–150 mm
-
Depth diameter: 10–25 cm
The specified 93 Ra CRI indicates the light's color-rendering characteristic.
39-LED Configuration
The Medinain Flare-3 uses 39 LEDs as its light source.
The specified average LED life is more than 50,000 hours.
Streamlined Operating Theatre Design
The streamlined shape of the Flare series is intended to minimize disruption of laminar airflow within the operating theatre.
The lightweight construction is designed to make lamp positioning easier and support stable positioning after adjustment.
Technical Specifications
| Specification |
Details |
| Brand |
Medinain |
| Model |
Flare-3 |
| Product Type |
LED Surgical OT Light |
| Intensity |
125,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Color Temperature |
3800–4800 K |
| Color Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 hours |
| Number of LEDs |
39 |
| Light Diameter |
711 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V / 50Hz AC |
| Power Consumption |
31.2 W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
