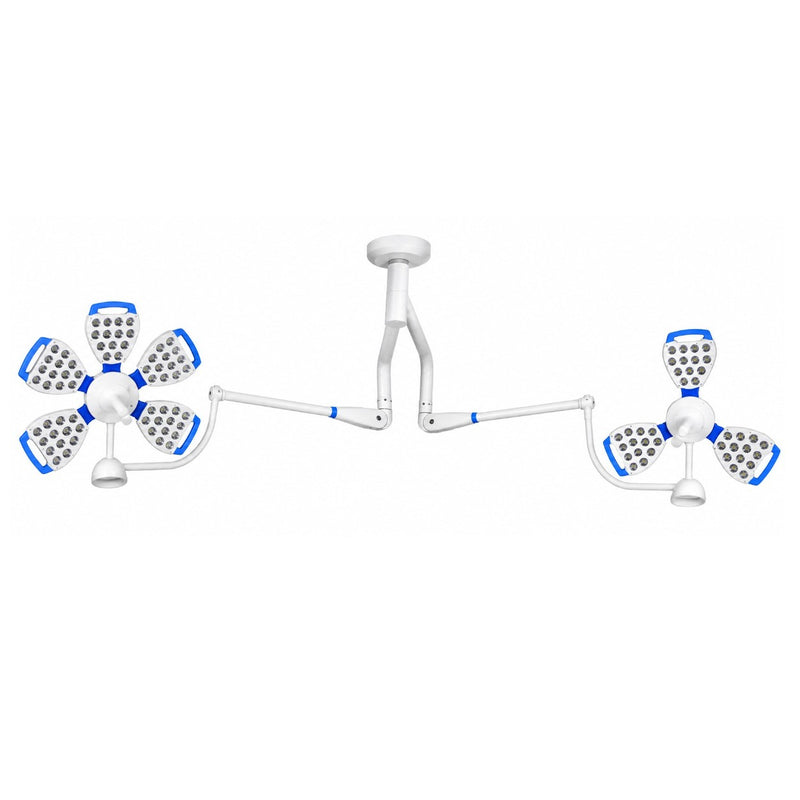

The Medinain Flare-503 is an advanced dual-head operating theatre (OT) light designed to provide high-intensity illumination for surgical procedures. It combines a high-definition optical system with a quick-response digital touch panel for convenient light-intensity adjustment.
The streamlined design is intended to minimize disruption to laminar airflow in the operating theatre, while the lightweight construction enables easy positioning and stable placement of the lamp during procedures.
Product Overview
The Medinain Flare-503 features two surgical light heads with specified illumination intensities of 175,000 Lux + 125,000 Lux. The configuration incorporates 65 + 39 LEDs, with both light heads specified at a 711 mm light diameter.
The system provides 10–100% digital touch intensity control, manual focusing, a 3800–4800 K color temperature, and a 93 Ra Color Rendering Index. It also features a dual memory function.
✅ Key Features
- Advanced dual-head surgical OT light
- Illumination intensity: 175,000 + 125,000 Lux
- 65 + 39 LEDs
- High-definition optical system
- Quick-response digital touch panel
- 10–100% digital touch intensity control
- Manual focusing
- Color temperature: 3800–4800 K
- CRI 93 Ra
- LED average life of >50,000 hours
- Light diameter: 711 + 711 mm
- Spot diameter: 100–150 mm
- Depth diameter: 10–25 cm
- Streamlined design intended to minimize laminar airflow disruption
- Lightweight construction for easy positioning
- Dual memory function
- 220V/50Hz AC power supply
Dual-Head Surgical Illumination
The Flare-503 combines two light heads with different specified illumination levels:
| Light Head |
Intensity |
LEDs |
Light Diameter |
| Head 1 |
175,000 Lux |
65 |
711 mm |
| Head 2 |
125,000 Lux |
39 |
711 mm |
This dual-head configuration provides two sources of illumination for the surgical field.
Digital Touch Intensity Control
The Flare-503 incorporates a quick-response digital touch panel integrated with its high-definition optical system.
The specified intensity control range is 10–100%, allowing the operator to adjust illumination according to procedural requirements.
Dual Memory Function
The system includes a dual memory function, providing convenient access to stored lighting settings.
High-Definition Optical System
The Flare-503 uses a high-definition optical system with the following specified characteristics:
-
Color temperature: 3800–4800 K
-
Color Rendering Index: 93 Ra
-
Focusing: Manual
-
Spot diameter: 100–150 mm
-
Depth diameter: 10–25 cm
LED Configuration & Operating Life
The Flare-503 incorporates 65 + 39 LEDs, giving a specified total of 104 LEDs across the two light heads.
The specified average LED life is more than 50,000 hours.
Streamlined Operating Theatre Design
The streamlined shape of the Flare series is intended to minimize disruption of laminar airflow within the operating theatre.
The lightweight lamp construction is designed to facilitate easy setting and stable positioning during use.
Technical Specifications
| Specification |
Details |
| Brand |
Medinain |
| Model |
Flare-503 |
| Product Type |
Dual-Head Surgical OT Light |
| Number of Light Heads |
2 |
| Intensity |
175,000 + 125,000 Lux |
| Number of LEDs |
65 + 39 |
| Intensity Control |
10–100% Digital Touch |
| Depth Diameter |
10–25 cm |
| Spot Diameter |
100–150 mm |
| Power Supply |
220V / 50Hz AC |
| Light Diameter |
711 + 711 mm |
| Power Consumption |
52 + 31.2 W |
| Special Function |
Dual Memory Function |
| Color Temperature |
3800–4800 K |
| LED Average Life |
>50,000 hours |
| Focusing |
Manual |
| Color Rendering Index |
93 Ra |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
