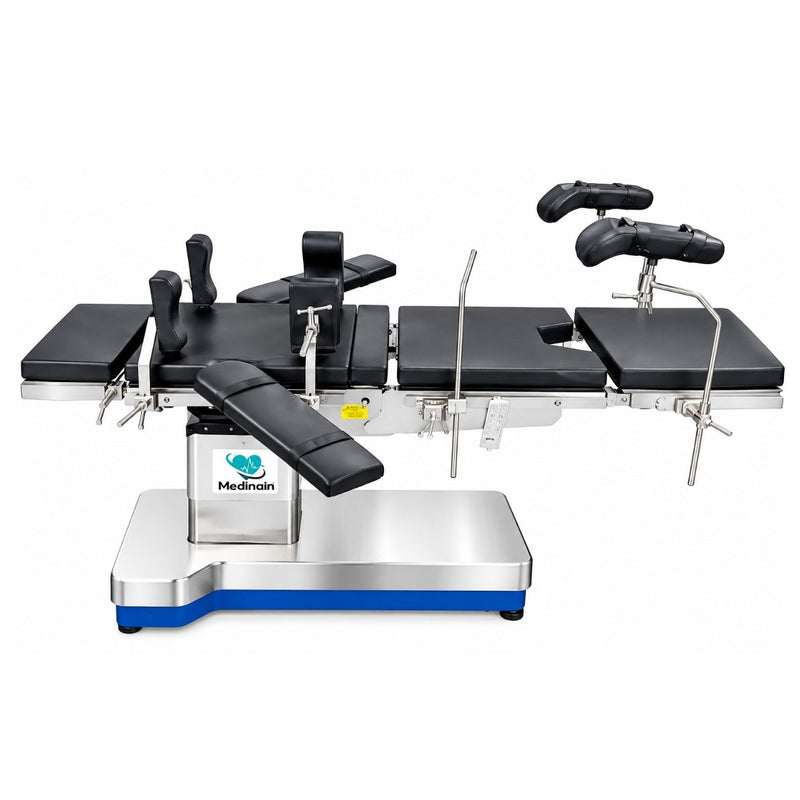

The Medinain ME-1000E Fully Electric OT Table is a five-sectional electric operating table designed for surgical environments requiring controlled, electrically operated patient positioning. All major table positions are operated through a cable remote, while the manually interchangeable head and leg sections provide configuration flexibility.
The table features a radiolucent table top, eccentric pillars, a sturdy base, an inbuilt kidney bridge and major structural components made from 304 stainless steel grade material. Heavy-quality castor wheels support movement of the table within the operating theatre.
✅ Key Features
-
Fully electrically operated operating table
- Five-sectional table design
- Radiolucent table top
- Eccentric pillars and sturdy base
- All specified table positions operated through cable remote
- Manually interchangeable head and leg sections
- Inbuilt kidney bridge
- 130 mm kidney elevator
- Major parts made from 304 stainless steel grade material
- Heavy-quality castor wheels
- 200 kg patient weight capacity
- Patient capacity above 200 kg can be customized, according to the supplied specification
- AC 220V ±10%, 50Hz mains supply
Product Overview
The Medinain ME-1000E Fully Electric OT Table is designed to provide electrically controlled positioning for surgical procedures. Its five-sectional construction incorporates an adjustable backrest, leg rest, headrest and kidney section, with table positions operated using a cable remote.
The table top is specified as radiolucent, while its eccentric pillars and sturdy base provide the structural configuration of the table. The head and leg sections can be manually interchanged according to the required setup.
Major parts of the ME-1000E are manufactured from 304 stainless steel grade material, providing a durable and easy-to-maintain construction for operating-room use.
Fully Electric Operation
The ME-1000E is a fully electrically operated table. The supplied specification states that all positions are operated through a cable remote.
This allows the operator to control the specified positioning functions through the connected remote rather than manually adjusting each primary table movement.
Five-Sectional Radiolucent Table Top
The ME-1000E features a five-sectional radiolucent table top designed for operating-room applications where radiographic access may be required.
The head and leg sections are manually interchangeable, allowing the table configuration to be changed according to procedural requirements.
Kidney Bridge
An inbuilt kidney bridge is incorporated into the table.
The specified kidney elevator adjustment is:
Surgical Positioning
The ME-1000E provides multiple electrically controlled positioning functions.
Height Adjustment
- Minimum: 750 mm
- Maximum: 1000 mm
- Measured without mattress
Trendelenburg / Reverse Trendelenburg
- Trendelenburg: 25°
- Reverse Trendelenburg: 23°
Lateral Tilt
Backrest
Leg Rest
Head Rest
304 Stainless Steel Construction
The supplied product specification states that major parts of the table are made from 304 stainless steel grade material.
The table also features a sturdy base and heavy-quality castor wheels for operating-theatre mobility.
Patient Weight Capacity
The standard specified patient weight capacity is 200 kg.
The supplied specification also states:
Above 200 kg: Customisable
Any higher-capacity configuration should therefore be confirmed with the supplier before ordering.
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
ME-1000E |
| Product Type |
Fully Electric OT Table |
| Operation |
Fully Electric |
| Table Sections |
Five |
| Table Top |
Radiolucent |
| Top Dimension |
L 1900 × W 535 mm |
| Height Adjustment |
750–1000 mm without mattress |
| Trendelenburg |
25° |
| Reverse Trendelenburg |
23° |
| Lateral Tilt |
20° / 20° |
| Kidney Elevator |
130 mm |
| Backrest Up / Down |
90° / 30° |
| Leg Rest Up / Down |
10° / 90° |
| Head Rest Up / Down |
45° / 90° |
| Control |
Cable Remote |
| Head & Leg Sections |
Manually interchangeable |
| Pillars |
Eccentric |
| Base |
Sturdy base |
| Main Material |
304 stainless steel grade |
| Castor Wheels |
Heavy quality |
| Mains Voltage |
AC 220V ±10%, 50Hz |
| Patient Weight Capacity |
200 kg |
| Higher Capacity |
Above 200 kg customizable |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
