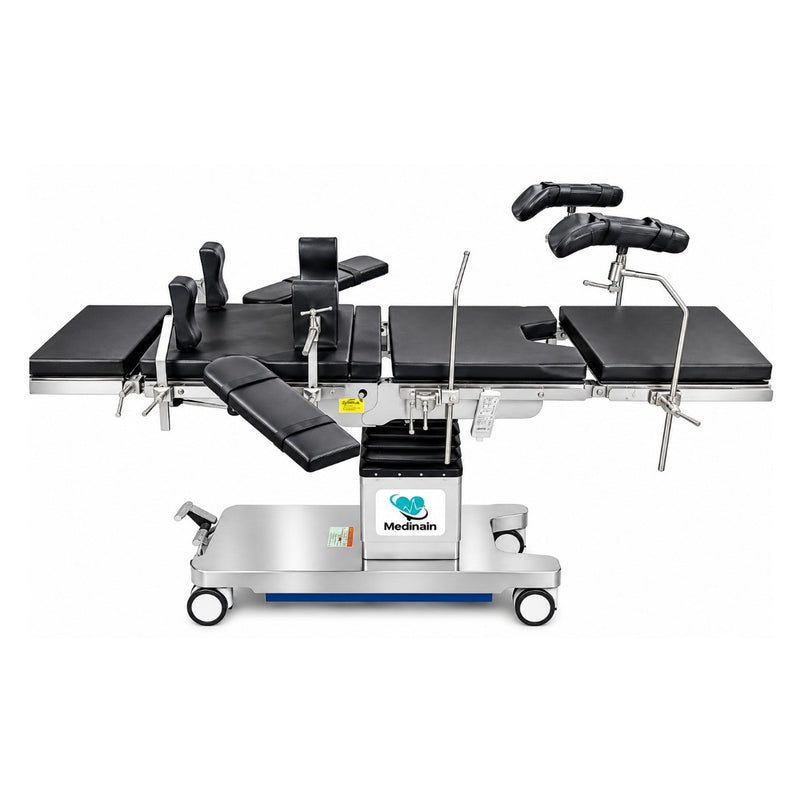

The Medinain ME-1500E Advance Electric OT Table is a fully electrically operated, five-sectional operating table designed for precise surgical positioning. It features a radiolucent table top, eccentric pillars, sturdy base, dual handset control, dual memory function, battery-backup indication and an additional built-in control panel for operation if the main handset is unavailable.
The table incorporates an inbuilt kidney bridge, 304 stainless-steel construction for major components, remote-controlled wheel locking and top-slide functionality. Optional configurations include split legs, castor wheels, remote floor locking and manual override.
✅ Key Features
-
Fully electrically operated five-sectional OT table
- Radiolucent table top
- Eccentric pillars and sturdy base
- Manually interchangeable head and leg sections
-
Two handsets supplied
- Additional control panel on the table top
- Backup control panel can be used in case of failure of the main handset
-
Dual memory function on handset; memory can be set and reset
-
Battery-backup indication on control panel
- Inbuilt kidney bridge
- Major table components made from 304 stainless steel grade
- Remote-controlled wheel lock
- Top-slide function
- 200 kg patient weight capacity
- Optional battery backup of 2–3 hours
- Optional split leg, castor wheels, remote floor locking and manual override
Product Overview
The Medinain ME-1500E Advance Electric OT Table is designed for operating rooms requiring electrically controlled patient positioning and additional control redundancy.
The table has two handsets, while an additional fixed control panel is provided on the table top. According to the supplied product information, this additional control panel can be used if the main handset fails.
The handset incorporates a dual memory function, allowing two stored positioning settings to be set and reset. The control panel also provides an indication of battery backup status.
The ME-1500E has a five-sectional radiolucent top, manually interchangeable head and leg sections, an inbuilt kidney bridge and major components made from 304 stainless steel grade material.
Dual Handset & Backup Control
One of the key features of the ME-1500E is its multiple control options:
- 2 handsets provided
- Additional fixed control panel on the table top
- Control panel can be used if the main handset fails
- Handset features dual memory
- Memory positions can be set and reset
- Battery-backup indication is provided on the control panel
This configuration provides alternative means of operating the table's electrical positioning system.
Electric Surgical Positioning
The ME-1500E provides multiple electrically controlled positioning functions.
Height Adjustment
- 750–1000 mm
- Measured without mattress
Trendelenburg / Reverse Trendelenburg
- Trendelenburg: 25°
- Reverse Trendelenburg: 23°
Lateral Tilt
Kidney Elevator
Backrest
Leg Rest
Head Rest
Flex / Reflex
Inbuilt Kidney Bridge
The ME-1500E incorporates an inbuilt kidney bridge with a specified 130 mm kidney elevator.
This provides additional positioning capability when elevation of the kidney section is required during surgery.
Top Slide
The ME-1500E includes top-slide functionality as a supplied feature.
The source also lists Top-slide under optional features; therefore, the exact top-slide configuration should be confirmed for the specific unit/order.
Remote Wheel Lock
The table is specified with wheel lock by remote, allowing wheel locking to be controlled through the electrical control system.
Floor locking with remote is also listed under optional features.
304 Stainless-Steel Construction
Major parts of the ME-1500E are specified as being manufactured from 304 stainless steel grade.
The table also features a sturdy base and can be configured with castor wheels as an optional feature.
Optional Features
The supplied specifications list the following optional features:
- Split Leg
- Top-slide
- Castor Wheels
- Floor Locking with Remote
- Manual Override
Availability and inclusion should be confirmed for the selected configuration.
Battery Backup
The specified battery backup is:
2–3 hours (optional)
The table also includes battery-backup indication on the control panel.
Because battery backup is listed as optional, the actual backup duration and availability should be confirmed for the ordered configuration.
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
ME-1500E |
| Product Type |
Advance Electric OT Table |
| Operation |
Fully Electric |
| Table Sections |
Five |
| Table Top |
Radiolucent |
| Top Dimension |
L 1990 × W 535 mm |
| Height Adjustment |
750–1000 mm without mattress |
| Trendelenburg |
25° |
| Reverse Trendelenburg |
23° |
| Lateral Tilt |
20° / 20° |
| Kidney Elevator |
130 mm |
| Backrest Up / Down |
90° / 20° |
| Leg Rest Up / Down |
10° / 90° |
| Head Rest Up / Down |
45° / 90° |
| Flex / Reflex |
230° / 110° |
| Control |
2 Handsets + Additional Table-Top Control Panel |
| Handset Memory |
Dual Memory, Set & Reset |
| Battery Indication |
Provided on Control Panel |
| Battery Backup |
2–3 Hours, Optional |
| Mains Voltage |
AC 220V ±10%, 50Hz |
| Patient Weight Capacity |
200 kg |
| Head & Leg Sections |
Manually Interchangeable |
| Kidney Bridge |
Inbuilt |
| Main Material |
304 Stainless Steel Grade |
| Wheel Lock |
Remote Controlled |
| Top Slide |
Provided / Configuration to be Confirmed |
| Split Leg |
Optional |
| Castor Wheels |
Optional |
| Remote Floor Locking |
Optional |
| Manual Override |
Optional |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
