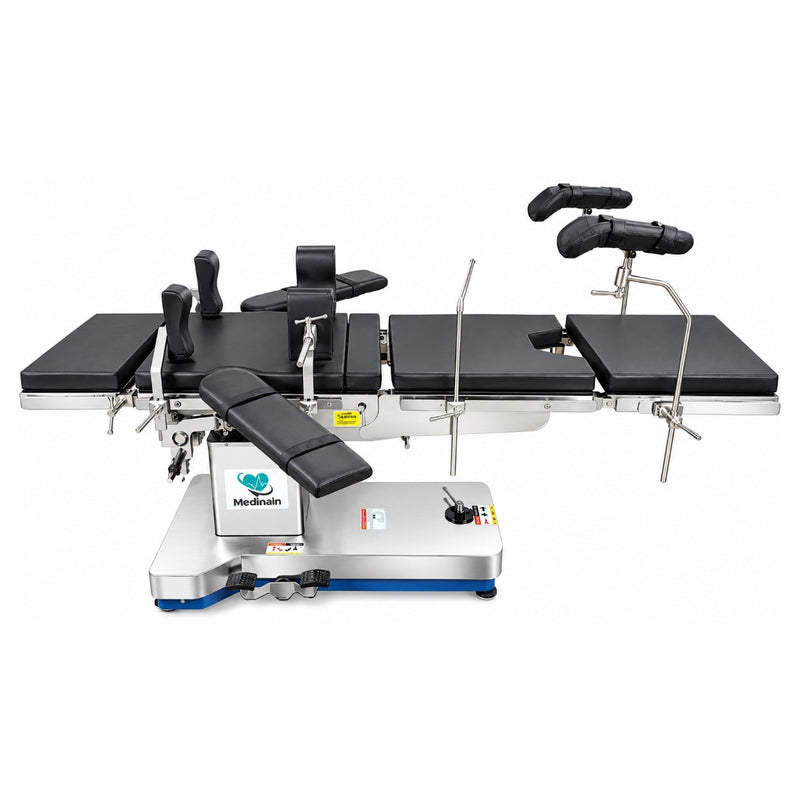

The Medinain ME-800E Hydraulic OT Table is a hydraulic operating table designed for smooth patient positioning during surgical procedures. Its hydraulic mechanism allows controlled adjustment of the table height and positioning, while its C-Arm-compatible design supports intraoperative imaging applications.
The table provides multiple positioning adjustments, including Trendelenburg, reverse Trendelenburg, lateral tilt, kidney elevation, backrest, leg-rest and head-rest movements. With a 200 kg patient weight capacity, the ME-800E is designed for operating-theatre applications requiring versatile positioning and C-Arm access.
✅ Key Features
-
Hydraulic operating table for controlled positioning
-
C-Arm compatible design
- Smooth hydraulic height adjustment
- Height range of 762–1000 mm
- 30° Trendelenburg / 25° reverse Trendelenburg
- 20° / 20° lateral tilt
- 150 mm kidney elevator
- Adjustable backrest, leg rest and headrest
- 200 kg patient weight capacity
- Designed for operating-room procedures requiring intraoperative imaging
Product Overview
The Medinain ME-800E is a hydraulic OT table intended to provide controlled and smooth positioning during surgery. Hydraulic operation allows the table to be adjusted in height and positioning without abrupt movements.
Its C-Arm-compatible configuration is intended to allow the use of a C-Arm for X-ray imaging during surgical procedures, helping the surgical team perform procedures where intraoperative imaging is required.
The table measures 1900 mm × 520 mm at the top and provides a height adjustment range of 762 mm to 1000 mm.
C-Arm Compatible Design
The ME-800E is specified as a C-Arm-compatible OT table. This makes it suitable for operating-room procedures where a mobile C-Arm may be used for intraoperative X-ray imaging.
The table's positioning capabilities allow the surgical team to adjust the patient and table configuration according to procedural requirements while accommodating C-Arm imaging access.
Hydraulic Positioning
The hydraulic mechanism provides controlled table movement for surgical positioning. The specified adjustment functions include:
- Height adjustment
- Trendelenburg
- Reverse Trendelenburg
- Lateral tilt
- Kidney elevation
- Backrest adjustment
- Leg-rest adjustment
- Headrest adjustment
Kidney Elevator
The ME-800E includes a 150 mm kidney elevator, providing substantial elevation adjustment of the kidney section when required for patient positioning.
Patient Positioning
Height Adjustment
- Minimum: 762 mm
- Maximum: 1000 mm
Trendelenburg / Reverse Trendelenburg
- Trendelenburg: 30°
- Reverse Trendelenburg: 25°
Lateral Tilt
Backrest
Leg Rest
Head Rest
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
ME-800E |
| Product Type |
Hydraulic OT Table |
| C-Arm Compatibility |
Yes |
| Top Dimension |
L 1900 × W 520 mm |
| Height Adjustment |
762–1000 mm |
| Trendelenburg |
30° |
| Reverse Trendelenburg |
25° |
| Lateral Tilt |
20° / 20° |
| Kidney Elevator |
150 mm |
| Backrest Up / Down |
80° / 25° |
| Leg Rest Up / Down |
15° / 90° |
| Head Rest Up / Down |
20° / 60° |
| Patient Weight Capacity |
200 kg |
| Operation |
Hydraulic |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
