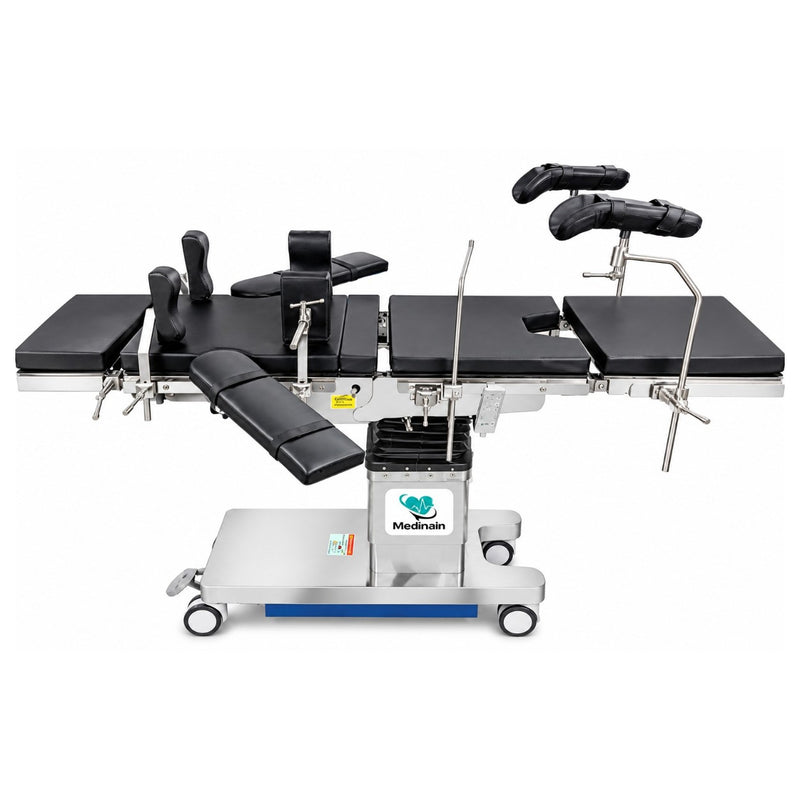

The Medinain ME-800H Hydraulic OT Table is a C-Arm-compatible hydraulic operating table designed for surgical procedures requiring precise patient positioning and intraoperative imaging access. Its eccentric base and eccentric pillars are designed to facilitate C-Arm movement around the operating table.
The table features a five-sectional radiolucent top, detachable head, leg and pelvic sections, an inbuilt kidney bridge, and a mechanism designed for smooth, stepless articulation of the table top. With a 200 kg patient weight capacity, the ME-800H is suited to operating-theatre applications requiring versatile positioning.
✅ Key Features
- Hydraulic OT table with C-Arm-compatible design
-
Eccentric base for C-Arm movements
-
Eccentric pillars with stainless-steel fittings
- Five-sectional radiolucent table top
- Interchangeable leg and head sections
- Detachable head, leg and pelvic sections
- Inbuilt kidney bridge
- 130 mm kidney elevator
- Smooth, stepless table-top articulation for patient positioning
- Easy-to-clean stainless-steel base and cover
- 200 kg patient weight capacity
- Multiple surgical positioning adjustments
Product Overview
The Medinain ME-800H is a hydraulic operating table designed for surgical and C-Arm-assisted procedures. Its eccentric construction provides space for C-Arm movement, while the five-sectional radiolucent top supports procedures where radiographic access through the table is required.
The table incorporates detachable head, leg and pelvic sections, with interchangeable head and leg sections. Its inbuilt kidney bridge provides 130 mm of kidney elevation, while multiple table sections can be adjusted for patient positioning.
The supplied specifications indicate a maximum height range of 750–1000 mm without mattress and a patient weight capacity of 200 kg.
C-Arm Compatible Eccentric Design
The ME-800H features an eccentric base and eccentric pillars specifically described as providing clearance for C-Arm movements.
This configuration is intended for operating-room procedures where a C-Arm may be positioned around the patient for intraoperative imaging.
Five-Sectional Radiolucent Top
The table has a five-sectional radiolucent top, allowing radiographic access through the relevant sections of the table during procedures where C-Arm imaging is required.
The head, leg and pelvic sections are detachable, while the head and leg sections are interchangeable.
Smooth, Stepless Articulation
The supplied product description specifies a mechanism that provides smooth, stepless articulation of the table top for precise patient positioning.
This allows the different table sections to be positioned according to the requirements of the surgical procedure.
Kidney Bridge
The ME-800H incorporates an inbuilt kidney bridge with a specified 130 mm kidney elevator.
Positioning Adjustments
Height Adjustment
- 750–1000 mm
- Measurement specified without mattress
Trendelenburg / Reverse Trendelenburg
- Trendelenburg: 30°
- Reverse Trendelenburg: 25°
Lateral Tilt
Backrest
Leg Rest
Head Rest
Stainless-Steel Construction
The ME-800H has a stainless-steel base and cover with an easy-to-clean surface. The table also features eccentric pillars with stainless-steel fittings.
This construction is intended to support routine cleaning and use within operating-theatre environments.
Technical Specifications
| Specification |
Technical Details |
| Brand |
Medinain |
| Model |
ME-800H |
| Product Type |
Hydraulic OT Table |
| C-Arm Compatibility |
Yes |
| Top Dimension |
L 1990 × W 535 mm |
| Height Adjustment |
750–1000 mm without mattress |
| Trendelenburg |
30° |
| Reverse Trendelenburg |
25° |
| Lateral Tilt |
25° / 25° |
| Kidney Elevator |
130 mm |
| Backrest Up / Down |
90° / 35° |
| Leg Rest Up / Down |
10° / 90° |
| Head Rest Up / Down |
45° / 90° |
| Patient Weight Capacity |
200 kg |
| Base |
Eccentric |
| Pillars |
Eccentric with stainless-steel fittings |
| Table Top |
Five-sectional radiolucent |
| Kidney Bridge |
Inbuilt |
| Head Section |
Detachable |
| Leg Section |
Detachable |
| Pelvic Section |
Detachable |
| Head & Leg Sections |
Interchangeable |
| Base & Cover |
Stainless steel, easy to clean |
| Table Articulation |
Smooth, stepless |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
