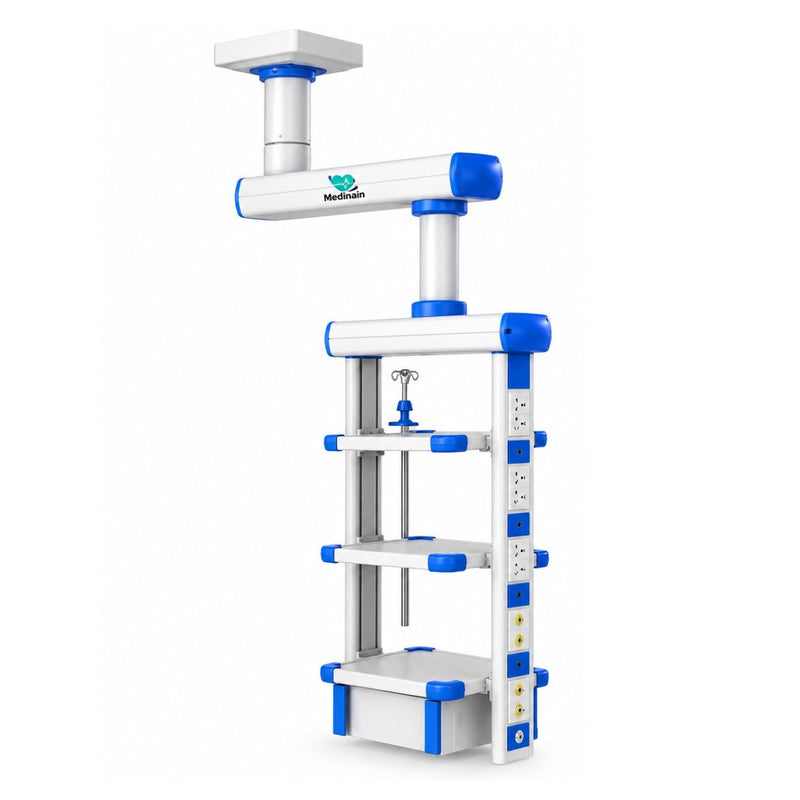

The Medinain ME-E21 Endoscopy & Laparoscopy Medical Pendant is a ceiling-mounted medical equipment support system designed specifically for endoscopy and laparoscopy procedure environments. It provides organized access to medical gases, electrical power, equipotential grounding, infusion support, syringe pump support, and storage.
The system uses high-strength aluminium alloy profiles as its main structural material and features an electrostatic spray surface treatment. Its ceiling-mounted installation is specified as stable and firm.
✅ Key Features
- Model: ME-E21
- Designed for Endoscopy & Laparoscopy
- Ceiling-mounted installation
- Stable and firm mounting arrangement
- Medical gas interface configuration:
- 2 × Oxygen
- 2 × Vacuum Suction
- Compressed Air
- Gas interfaces with different colors and shapes
- Anti-missing function
- More than 20,000 insertion/removal cycles
- Secondary sealing system
- Three gas-interface states:
- Gas maintenance function
- 10 × power sockets
- Electrical rating: 220V / 10A
- 2 × equipotential grounding terminals
- 1 × stainless steel adjustable infusion rod holder
- 1 × stainless steel adjustable syringe pump frame
- 1 × storage item
- High-strength aluminium alloy profile construction
- Electrostatic spray surface treatment
Endoscopy & Laparoscopy Application
The ME-E21 is intended for procedure environments where organized access to medical gas, electrical power, grounding, infusion support, syringe pump support, and storage is required.
Its configuration is suitable for consideration in:
- Endoscopy rooms
- Laparoscopy operating rooms
- Minimally invasive procedure areas
- Gastrointestinal endoscopy areas
- Laparoscopic surgery environments
- Operating and procedure rooms
The final configuration and installation should be verified according to the healthcare facility's room layout, medical-gas requirements, electrical requirements, structural requirements, and equipment compatibility.
Medical Gas Interface
The ME-E21 features a medical gas interface configuration consisting of:
- 2 × Oxygen
- 2 × Vacuum Suction
- Compressed Air
Gas Interface Features
The supplied specification includes:
- Different interface colors and shapes
- Anti-missing function
- More than 20,000 insertion and removal cycles
- Secondary sealing
- Three operating states: ON / OFF / PULL
- Gas maintenance function
The differentiated interface design helps distinguish the various gas connections within the clinical environment.
Infusion & Syringe Pump Support
The specified configuration includes:
- 1 × stainless steel adjustable infusion rod holder
- 1 × stainless steel adjustable syringe pump frame
These dedicated supports allow compatible infusion and syringe pump equipment to be positioned within the procedure-area setup.
Construction & Surface Treatment
The main structure is manufactured using high-strength aluminium alloy profiles.
The surface treatment is specified as electrostatic spraying.
The product is designed for ceiling-mounted installation, with the supplied description specifying the mounting arrangement as stable and firm.
Storage
The ME-E21 includes one storage item, providing additional space for organizing compatible clinical accessories and equipment.
Technical Specifications
| Specification |
Details |
| Product |
Medinain ME-E21 Endoscopy & Laparoscopy Medical Pendant |
| Model |
ME-E21 |
| Application |
Endoscopy & Laparoscopy |
| Installation |
Ceiling-mounted |
| Medical Gas Interface |
Oxygen, vacuum suction, compressed air |
| Oxygen Connections |
2 pcs |
| Vacuum Suction Connections |
2 pcs |
| Compressed Air |
Included |
| Interface Design |
Different colors and shapes |
| Anti-Missing Function |
Yes |
| Insertion/Removal Cycles |
>20,000 |
| Gas Interface Seal |
Secondary sealing |
| Interface States |
ON / OFF / PULL |
| Gas Maintenance |
Specified |
| Power Sockets |
10 |
| Socket Rating |
220V / 10A |
| Equipotential Grounding Terminals |
2 |
| Infusion Rod Holder |
1 × stainless steel, adjustable |
| Syringe Pump Frame |
1 × stainless steel, adjustable |
| Storage |
1 item |
| Main Material |
High-strength aluminium alloy profiles |
| Surface Treatment |
Electrostatic spraying |
| Mounting |
Stable and firm ceiling-mounted installation |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
