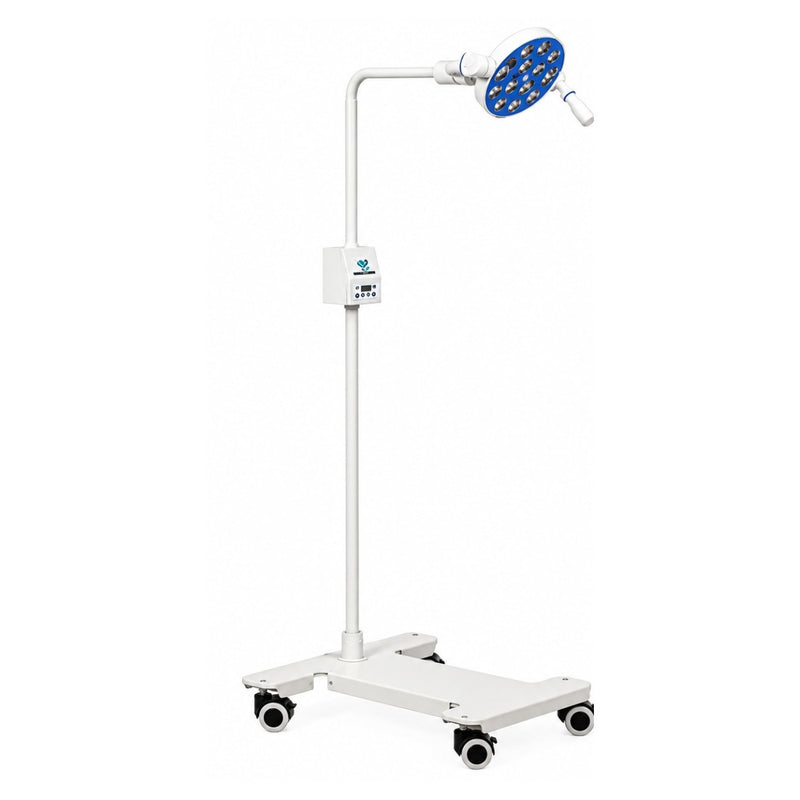

The Medinain Orion 101 Examination Light is a portable floor-standing LED examination light developed for minor surgery and medical examination applications.
The Orion 101 is part of Medinain's examination-light range featuring a combination of white and yellow LEDs. Its portable floor model can be moved around the room when required, helping healthcare facilities reposition the light and clear floor space.
With 50,000 Lux illumination, 12 LEDs, 10–100% digital touch intensity control, fixed focusing, and CRI 91 Ra, the Orion 101 is designed for controlled illumination during examinations and minor procedures.
✅ Key Features
- Portable floor-standing examination light
-
Designed for minor surgery and examination
-
50,000 Lux illumination
- 12 LEDs
- White and yellow LED combination
- 10–100% digital touch intensity control
- 10–25 cm depth
- 100–150 mm spot diameter
- 150 mm light diameter
- 3800–4800K colour temperature
- CRI 91 Ra
- Fixed focusing
- LED average life: >50,000 hours
- 12W power consumption
- 220V/50Hz AC power supply
- Portable stand for flexible positioning
- Floor model can be moved around the room when required
50,000 Lux LED Illumination
The Orion 101 provides a specified illumination intensity of 50,000 Lux.
Its 12-LED configuration provides the light source, while the specified 100–150 mm spot diameter defines the stated illuminated spot range.
Digital Touch Intensity Control
The Orion 101 includes 10–100% digital touch intensity control, allowing the user to adjust the illumination level according to the requirements of the examination or procedure.
This provides greater control over the amount of light directed toward the examination area.
White & Yellow LED Combination
The Medinain examination-light range is described as using a combination of white and yellow LEDs.
The Orion 101 has:
- 12 LEDs
- 3800–4800K colour temperature
- 91 Ra Colour Rendering Index
Portable Floor-Standing Design
The Orion 101 uses a portable stand, allowing the light to be moved around the room whenever required.
The floor-model design can help reposition the examination light and clear space around the clinical working area.
Fixed Focusing & Light Field
The Orion 101 uses fixed focusing according to the supplied technical data.
| Light Parameter |
Specification |
| Intensity |
50,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Fixed |
Colour Temperature & Colour Rendering
The Orion 101 has a specified 3800–4800K colour temperature range and CRI 91 Ra.
These are the supplied colour and rendering specifications for the examination light.
Technical Specifications
| Specification |
Orion 101 |
| Model |
Orion 101 |
| Product Type |
Examination Light |
| Configuration |
Portable Floor Model |
| Application |
Examination / Minor Surgery |
| Intensity |
50,000 Lux |
| Number of LEDs |
12 |
| LED Type |
White + Yellow LED Combination |
| Intensity Control |
10–100% Digital Touch |
| Depth Diameter |
10–25 cm |
| Spot Diameter |
100–150 mm |
| Power Supply |
220V/50Hz AC |
| Diameter of Light |
150 mm |
| Power Consumption |
12W |
| Colour Temperature |
3800–4800K |
| LED Average Life |
>50,000 Hours |
| Focusing |
Fixed |
| Colour Rendering Index |
91 Ra |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
