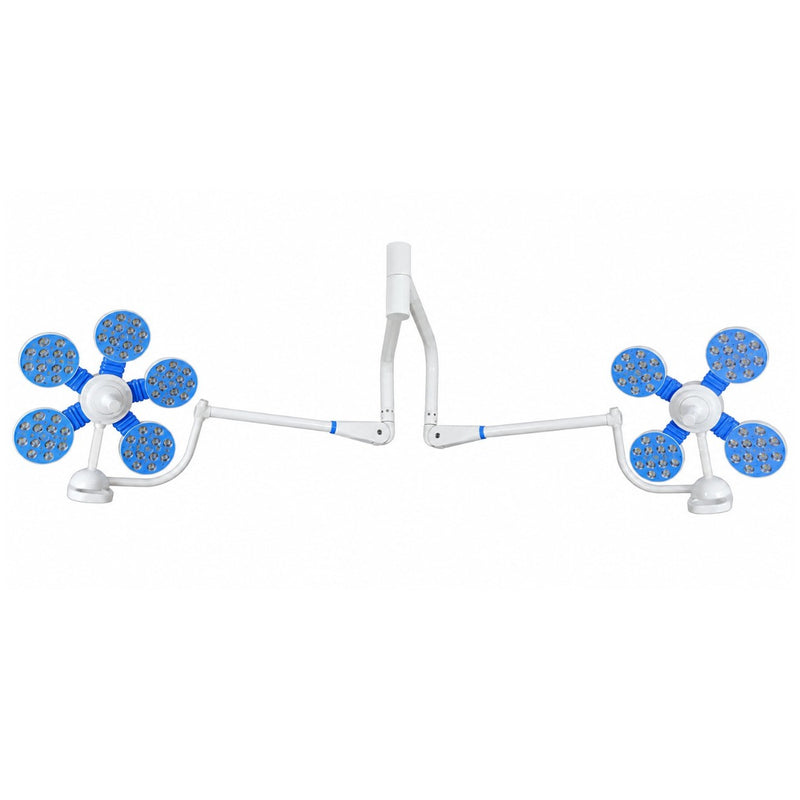

The Medinain Orion 504 is a dual-head LED surgical OT light designed for operating theatres and demanding surgical procedures. Its high-intensity illumination and adjustable digital controls are designed to provide controlled lighting during surgical interventions.
The Orion 504 is described as a maintenance-free OT light, helping reduce routine maintenance requirements while providing flexible illumination through its dual-head configuration.
With 160,000 + 145,000 Lux specified intensity, 60 + 48 LEDs, manual focusing, 93 Ra colour rendering, digital touch intensity control and a Dual Memory Function, the Orion 504 is designed for surgical environments requiring high-intensity dual-head illumination.
✅ Key Features
-
160,000 + 145,000 Lux dual-head illumination
- 60 + 48 LEDs
- Dual-head surgical OT light
- Maintenance-free OT light design
-
3800–4800 K colour temperature
- 93 Ra Colour Rendering Index
- Manual focusing
- LED average life of more than 50,000 hours
- 10–100% digital touch intensity control
- Dual Memory Function
-
584 + 609 mm light diameter
-
100–150 mm spot diameter
-
10–25 cm depth diameter
- 220V/50Hz AC power supply
-
48 + 38.4 Watt power consumption
High-Intensity Dual-Head Illumination
The Orion 504 features two LED light heads with specified intensities of 160,000 Lux + 145,000 Lux. This configuration is designed to provide high-intensity illumination from two light sources during surgical procedures.
The two light heads contain 60 + 48 LEDs, respectively.
Manual Focusing
The Orion 504 features manual focusing, allowing the illuminated field to be adjusted according to the requirements of the surgical procedure.
Digital Touch Intensity Control
The light intensity can be adjusted from 10% to 100% through digital touch control, providing flexibility for different operating conditions.
Dual Memory Function
The Dual Memory Function allows preferred lighting settings to be stored for convenient access during surgical procedures.
Long LED Life
The Orion 504 uses 60 + 48 LEDs with a specified average LED life of more than 50,000 hours.
Technical Specifications
| Specification |
Details |
| Brand |
Medinain |
| Model |
Orion 504 |
| Product Type |
Dual-Head LED Surgical OT Light |
| Intensity |
160,000 + 145,000 Lux |
| Number of LEDs |
60 + 48 |
| Intensity Control |
10–100% Digital Touch |
| Depth Diameter |
10–25 cm |
| Spot Diameter |
100–150 mm |
| Power Supply |
220V/50Hz AC |
| Diameter of Light |
584 + 609 mm |
| Power Consumption |
48 + 38.4 Watt |
| Special Function |
Dual Memory Function |
| Colour Temperature |
3800–4800 K |
| LED Average Life |
>50,000 Hours |
| Focusing |
Manual |
| Colour Rendering Index |
93 Ra |
| Maintenance |
Described as maintenance-free |
Clinical Applications
The Medinain Orion 504 is designed for healthcare environments requiring high-intensity dual-head surgical illumination, including:
- Operation theatres
- Surgical procedure rooms
- Hospitals
- Surgical centres
- General surgery environments
- Clinical procedure areas
- Examination and treatment rooms
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
