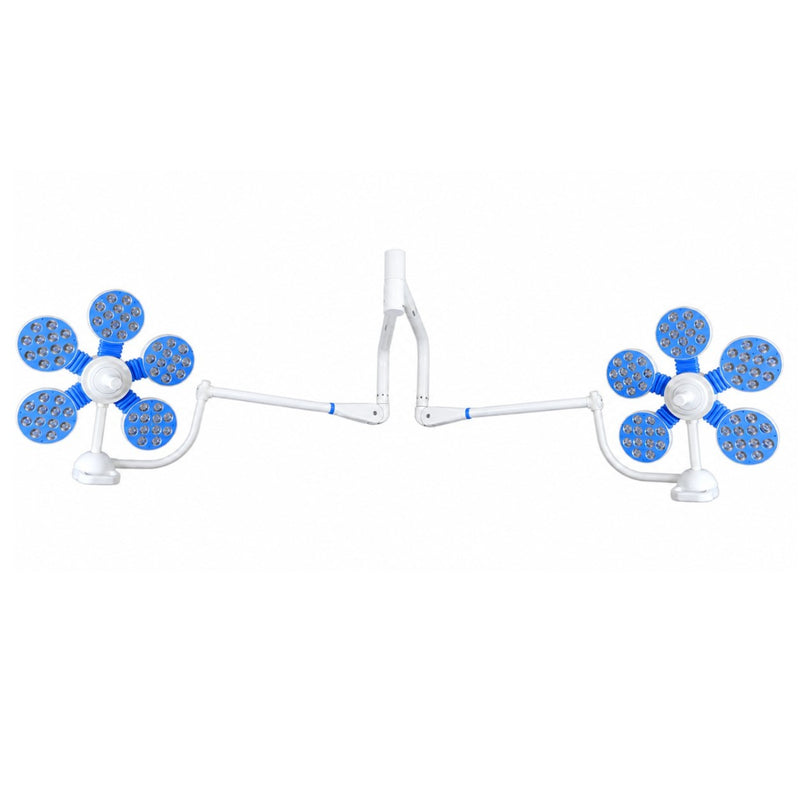

The Medinain Orion 505 is a high-intensity dual-head LED surgical OT light designed for operating theatres and demanding surgical procedures. Its design combines high illumination levels with adjustable lighting controls to support controlled illumination during surgical interventions.
The Orion 505 is described as a maintenance-free OT light, intended to reduce routine maintenance requirements while providing flexible illumination.
With 160,000 + 160,000 Lux specified intensity, 60 × 2 LEDs, 93 Ra colour rendering, manual focusing, digital touch intensity control and a Dual Memory Function, the Orion 505 is designed for surgical environments requiring high-intensity dual-head lighting.
✅ Key Features
-
160,000 + 160,000 Lux specified dual-head intensity
- Dual-head LED surgical OT light
- Designed for demanding surgical procedures
- Maintenance-free OT light design
- 60 × 2 LEDs
-
3800–4800 K colour temperature
- 93 Ra Colour Rendering Index
- Manual focusing
- LED average life of more than 50,000 hours
- 10–100% digital touch intensity control
- Dual Memory Function
-
584 + 584 mm light diameter
-
100–150 mm spot diameter
-
10–25 cm depth diameter
- 220V/50Hz AC power supply
-
48 + 48 Watt power consumption
High-Intensity Dual-Head Illumination
The Orion 505 features two LED light heads, each specified at 160,000 Lux, giving a model specification of 160,000 + 160,000 Lux.
Each light head contains 60 LEDs, represented in the supplied specification as 60 × 2 LEDs.
Manual Focusing
The Orion 505 uses manual focusing, allowing the illuminated field to be adjusted according to surgical requirements.
Digital Touch Intensity Control
The intensity can be adjusted from 10% to 100% through digital touch control, providing flexibility for different operating conditions.
Dual Memory Function
The Dual Memory Function provides convenient access to preferred lighting settings during surgical procedures.
Long LED Life
The Orion 505 incorporates 60 LEDs per light head with a specified average LED life of more than 50,000 hours.
Technical Specifications
| Specification |
Details |
| Brand |
Medinain |
| Model |
Orion 505 |
| Product Type |
Dual-Head LED Surgical OT Light |
| Intensity |
160,000 + 160,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800 K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
60 × 2 |
| Diameter of Light |
584 + 584 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
48 + 48 Watt |
| Special Function |
Dual Memory Function |
| Maintenance |
Described as maintenance-free |
Clinical Applications
The Medinain Orion 505 is designed for healthcare environments requiring high-intensity dual-head surgical illumination, including:
- Operation theatres
- Surgical procedure rooms
- Hospitals
- Surgical centres
- General surgery environments
- Clinical procedure areas
- Examination and treatment rooms
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
