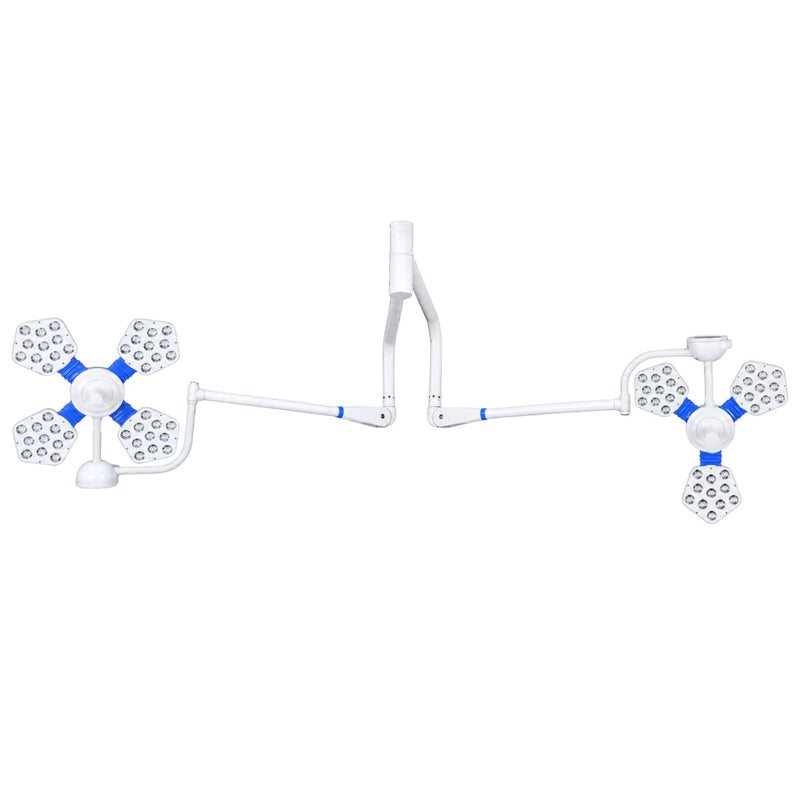

The Medinain Ossio 403 OT LED Light is a dual-head LED surgical lighting system designed for operating theatres and clinical procedure environments. It combines 135,000 Lux + 100,000 Lux illumination with 44 + 33 LEDs, providing two independently specified high-intensity light sources for surgical illumination.
The Ossio series is described as compact, effective, and versatile, with a lamp shape intended to provide visual comfort and suitable laminar-flow conditions. The supplied product description also highlights LED technology intended to minimize heat development in the surgeon's head area and wound field.
The Ossio 403 features 10–100% digital touch intensity control, manual focusing, dual memory function, 3800–4800K colour temperature, and CRI 93 Ra, making it suitable for operating-theatre environments requiring controlled, high-intensity illumination.
✅ Key Features
- Dual-head LED OT surgical light
-
135,000 Lux + 100,000 Lux specified intensity
- 44 + 33 LEDs
- 10–100% digital touch intensity control
- Dual memory function
- Manual focusing
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Light depth: 10–25 cm
- LED average life: >50,000 hours
- 635 mm light diameter specified
- 220V/50Hz AC power supply
- 35.2 + 26.4W power consumption
- Compact and versatile Ossio-series design
- Product description highlights reduced heat development around the surgeon's head area and wound field
- Lamp shape described as supporting visual comfort and suitable laminar-flow conditions
Dual-Head Surgical Illumination
The Ossio 403 uses two LED light heads with different specified illumination intensities:
-
Head 1: 135,000 Lux
-
Head 2: 100,000 Lux
This configuration provides two sources of surgical illumination that can be positioned according to the requirements of the procedure.
Important: The two Lux specifications are listed separately and should not be interpreted as a single combined Lux rating.
LED Lighting Technology
The Ossio 403 incorporates 44 + 33 LEDs across its dual-head configuration.
According to the supplied Medinain product description, the LED technology is designed to help keep the surgeon's head area and wound field cooler through very low heat development.
The specified LED average life is more than 50,000 hours.
Digital Touch Intensity Control
The Ossio 403 features 10–100% digital touch intensity control, allowing the illumination level to be adjusted according to procedural requirements.
It also incorporates a dual memory function for convenient storage and recall of preferred lighting settings.
Manual Focusing & Light Field
The Ossio 403 uses manual focusing with the following supplied specifications:
-
Spot diameter: 100–150 mm
-
Depth: 10–25 cm
These specifications define the stated light-field and illumination-depth range of the system.
Colour Temperature & CRI
The Ossio 403 provides a 3800–4800K colour temperature range and a Colour Rendering Index of 93 Ra.
The high CRI specification is intended to support accurate visualisation of the illuminated surgical field.
Compact Surgical Lamp Design
The Ossio series is described by Medinain as compact, effective, and versatile. The supplied description states that the lamp shape assures visual comfort and suitable laminar-flow conditions.
The supplied specification lists a 635 mm diameter of light for the Ossio 403.
Technical Specifications
| Specification |
Ossio 403 |
| Model |
Ossio 403 |
| Light Type |
LED OT / Surgical Light |
| Configuration |
Dual Head |
| Intensity – Head 1 |
135,000 Lux |
| Intensity – Head 2 |
100,000 Lux |
| No. of LEDs |
44 + 33 |
| Intensity Control |
10–100% Digital Touch |
| Depth Diameter |
10–25 cm |
| Spot Diameter |
100–150 mm |
| Power Supply |
220V / 50Hz AC |
| Diameter of Light |
635 mm |
| Power Consumption |
35.2 + 26.4 W |
| Special Function |
Dual Memory Function |
| Colour Temperature |
3800–4800K |
| LED Average Life |
>50,000 Hours |
| Focusing |
Manual |
| Colour Rendering Index |
93 Ra |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
