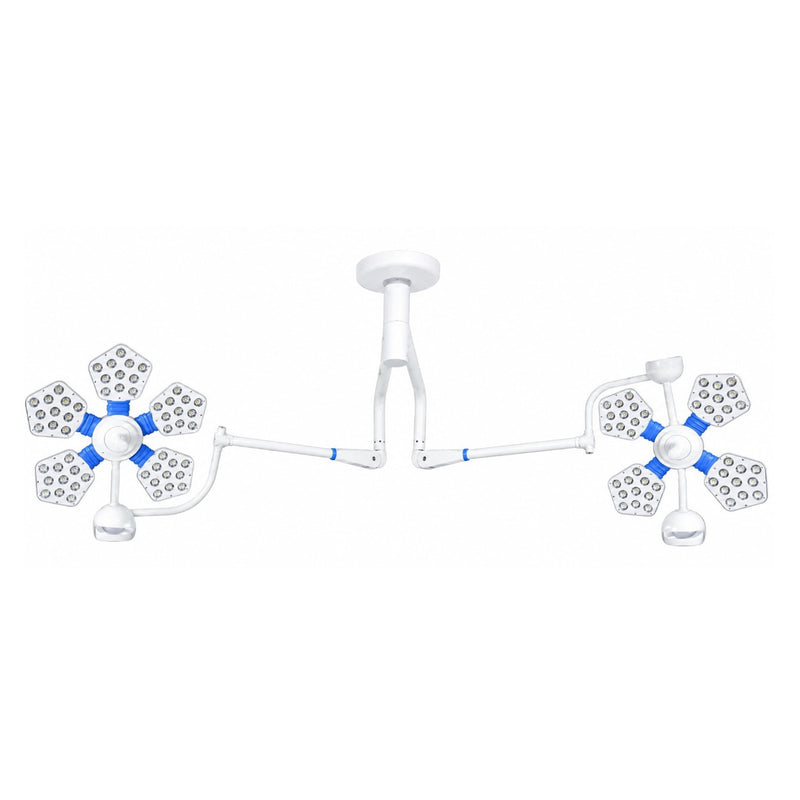

The Medinain Ossio 504 OT LED Light is a powerful dual-head LED operating theatre light designed for surgical and clinical environments requiring focused, high-intensity illumination. It provides a specified 155,000 + 135,000 Lux illumination configuration across its two light heads.
The Ossio series is designed as a compact, effective and versatile lighting solution. According to the supplied product description, its powerful LED technology helps minimise heat development in the surgeon's head area and wound field. The lamp shape is also described as providing visual comfort and supporting suitable laminar flow.
The Ossio 504 combines 55 + 44 LEDs, manual focusing, 10–100% digital touch intensity control, and a Dual Memory Function. The two light heads have a specified diameter of 635 + 635 mm, with an LED average life of more than 50,000 hours.
✅ Key Features
- Dual-head LED operating theatre light
-
155,000 + 135,000 Lux specified intensity
- 55 + 44 LEDs
- 93 Ra Colour Rendering Index
-
3800–4800 K colour temperature
- 100–150 mm spot diameter
- 10–25 cm illumination depth
- Manual focusing
- 10–100% digital touch intensity control
- Dual Memory Function
- LED average life of >50,000 hours
-
635 + 635 mm light diameter
-
44 + 35.2 Watt specified power consumption
-
220V/50Hz AC power supply
- Compact and versatile lamp design
- Lamp shape described as supporting visual comfort and suitable laminar flow
Dual-Head LED Illumination
The Medinain Ossio 504 features two LED light heads with specified intensities of 155,000 Lux + 135,000 Lux.
The two-head configuration provides separate sources of focused surgical illumination. The supplied intensity values are presented individually and are not combined into a single total Lux figure.
Focused Illumination
The Ossio 504 has a specified 100–150 mm spot diameter and 10–25 cm illumination depth, supporting focused illumination of the operative field.
High Colour Rendering
The Ossio 504 provides a specified CRI of 93 Ra with a colour temperature range of 3800–4800 K.
These specifications are designed to provide clear illumination for surgical and clinical environments.
LED Technology & Heat Development
The supplied product description states that the powerful LED technology helps minimise heat development in the surgeon's head area and wound field.
The lamp shape is also described as assuring visual comfort and supporting suitable laminar flow.
Manual Focusing
The Ossio 504 uses manual focusing, allowing the operator to adjust the illumination according to the requirements of the procedure.
Digital Touch Intensity Control
The system features 10–100% digital touch intensity control, providing convenient adjustment of illumination levels.
Dual Memory Function
The Dual Memory Function provides convenient access to preferred illumination settings during procedures.
Long-Life LED Configuration
The Ossio 504 uses 55 + 44 LEDs, with a specified average LED life of more than 50,000 hours.
Technical Specifications
| Specification |
Medinain Ossio 504 |
| Brand |
Medinain |
| Model |
Ossio 504 |
| Product Type |
Dual-Head LED Operation Theatre / Surgical Light |
| Light Intensity |
155,000 + 135,000 Lux |
| Number of LEDs |
55 + 44 |
| Spot Diameter |
100–150 mm |
| Illumination Depth |
10–25 cm |
| Colour Temperature |
3800–4800 K |
| Colour Rendering Index (CRI) |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 hours |
| Light Diameter |
635 + 635 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V / 50Hz AC |
| Power Consumption |
44 + 35.2 Watt |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
