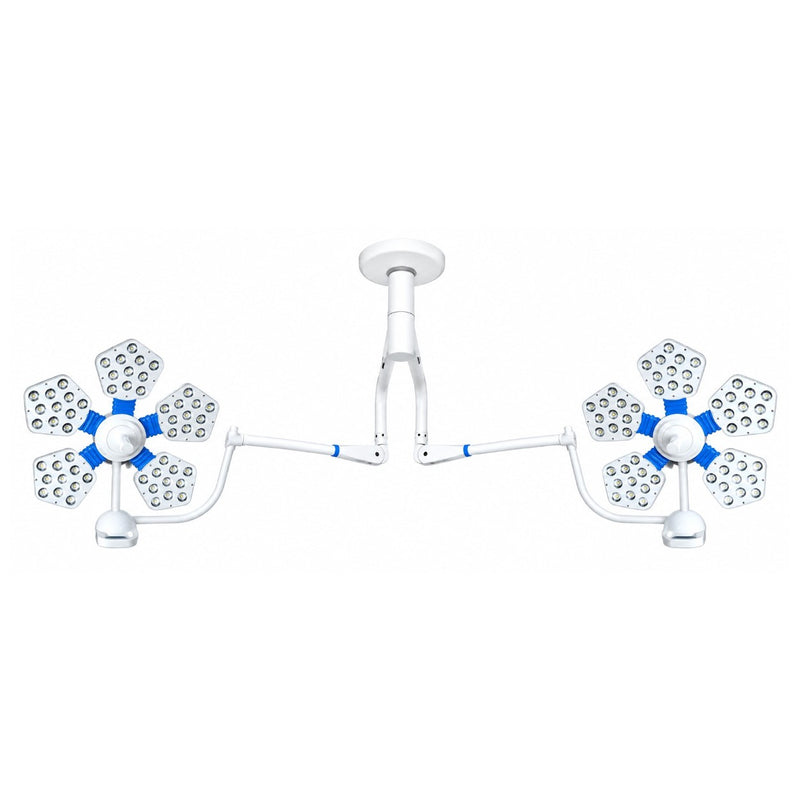

The Medinain Ossio 505 OT LED Light is a powerful dual-head LED operating theatre light designed for surgical and clinical environments requiring high-intensity, focused illumination. It provides a specified 155,000 + 155,000 Lux illumination configuration across its two light heads.
The Ossio series is designed as a compact, effective and versatile lighting solution. According to the supplied product description, its LED technology helps minimise heat development in the surgeon's head area and wound field. The lamp shape is also described as providing visual comfort and supporting suitable laminar flow.
The Ossio 505 features 55 LEDs per light head, manual focusing, 10–100% digital touch intensity control, and a Dual Memory Function. Each light head has a specified diameter of 635 mm, with an LED average life of more than 50,000 hours.
✅ Key Features
- Dual-head LED operating theatre light
-
155,000 + 155,000 Lux specified intensity
- 55 × 2 LEDs
- 93 Ra Colour Rendering Index
-
3800–4800 K colour temperature
- 100–150 mm spot diameter
- 10–25 cm illumination depth
- Manual focusing
- 10–100% digital touch intensity control
- Dual Memory Function
- LED average life of >50,000 hours
-
635 + 635 mm light diameter
-
44 + 44 Watt power consumption
-
220V/50Hz AC power supply
- Compact and versatile lamp design
- Lamp shape described as supporting visual comfort and suitable laminar flow
Powerful Dual-Head LED Illumination
The Medinain Ossio 505 provides 155,000 Lux per specified light head, represented in the supplied specification as 155,000 + 155,000 Lux.
The dual-head configuration provides two dedicated sources of surgical illumination for operating theatre applications. The supplied figures are presented individually and are not mathematically combined into a single total Lux value.
Focused Illumination
The Ossio 505 has a specified 100–150 mm spot diameter and 10–25 cm illumination depth, supporting focused illumination of the operative field.
High Colour Rendering
With a specified CRI of 93 Ra and 3800–4800 K colour temperature, the Ossio 505 is designed to provide clear illumination for surgical and clinical environments.
LED Technology & Heat Development
The supplied product description states that the powerful LED technology helps minimise heat development in the surgeon's head area and wound field.
The lamp shape is also described as assuring visual comfort and supporting suitable laminar flow.
Manual Focusing
The Ossio 505 uses manual focusing, allowing the illumination to be adjusted according to the requirements of the procedure.
Digital Touch Intensity Control
The system provides 10–100% digital touch intensity control, allowing users to adjust the illumination level as required.
Dual Memory Function
The Dual Memory Function provides convenient access to preferred illumination settings during procedures.
Long-Life LED Configuration
The Ossio 505 uses 55 × 2 LEDs, with a specified LED average life of more than 50,000 hours.
Technical Specifications
| Specification |
Medinain Ossio 505 |
| Brand |
Medinain |
| Model |
Ossio 505 |
| Product Type |
Dual-Head LED Operation Theatre / Surgical Light |
| Light Intensity |
155,000 + 155,000 Lux |
| Spot Diameter |
100–150 mm |
| Illumination Depth |
10–25 cm |
| Colour Temperature |
3800–4800 K |
| Colour Rendering Index (CRI) |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 hours |
| Number of LEDs |
55 × 2 |
| Light Diameter |
635 + 635 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V / 50Hz AC |
| Power Consumption |
44 + 44 Watt |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
