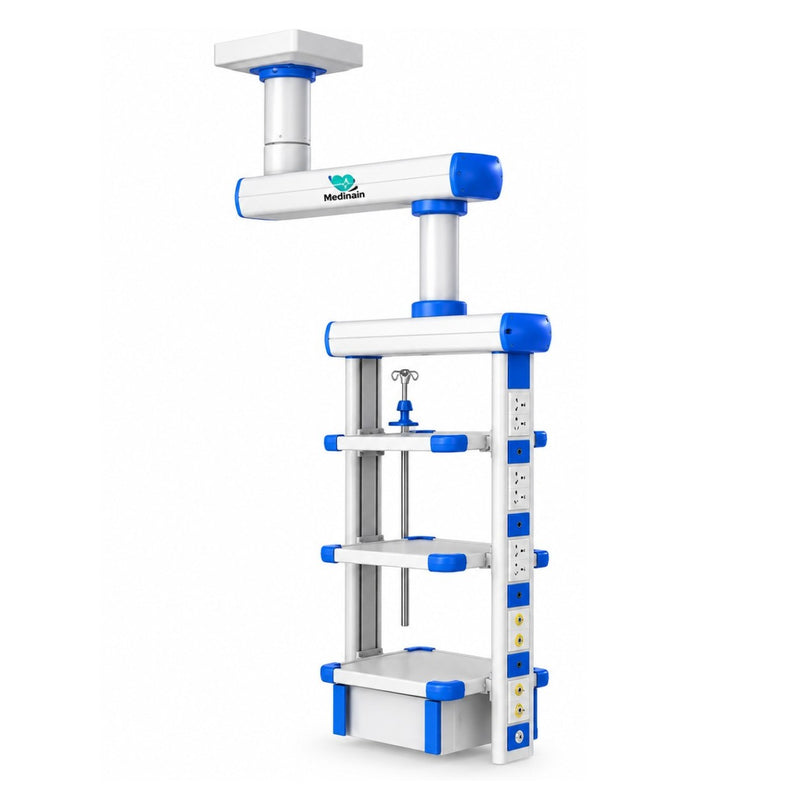

The Medinain Single Arm Floor Model Medical Pendant is designed to provide organized access to medical gases, electrical power, equipotential grounding, infusion support, syringe pump support, and storage within clinical environments.
The supplied specification includes a medical gas interface for oxygen, vacuum suction, and compressed air, multiple electrical power sockets, adjustable equipment-support accessories, and high-strength aluminium alloy construction.
✅ Key Features
-
Single Arm Floor Model configuration
- Medical gas interface for:
- 2 × Oxygen
- 2 × Vacuum Suction
- Compressed Air
- Different gas interface colors and shapes
- Anti-missing function
- More than 20,000 insertion/removal cycles
- Secondary sealing system
- Three gas-interface states: ON / OFF / PULL
- Gas maintenance function
- 10 × power sockets
- Electrical rating: 220V / 10A
- 2 × equipotential grounding terminals
- 1 × stainless steel adjustable infusion rod holder
- 1 × stainless steel adjustable syringe pump frame
- 1 × storage item
- High-strength aluminium alloy profile construction
- Electrostatic spray surface treatment
- Supplied description also states stable and firm ceiling-mounted installation
Medical Gas Interface
The Medinain Single Arm Floor Model is specified with:
- 2 × Oxygen connections
- 2 × Vacuum suction connections
- Compressed air connection
The interfaces have different colors and shapes and incorporate an anti-missing function.
The gas interfaces are specified for more than 20,000 insertion and removal cycles.
Gas Interface Design
The supplied specifications describe:
- Secondary sealing
-
ON state
-
OFF state
-
PULL state
- Gas maintenance function
These features are intended to support organized identification and connection of the specified medical gas services.
Electrical Power & Grounding
The system includes 10 power sockets, rated at 220V / 10A.
It also provides:
- 2 × equipotential grounding terminals
This gives compatible clinical equipment multiple electrical connection points within the pendant configuration.
Infusion & Syringe Pump Support
The specified configuration includes:
- 1 × stainless steel adjustable infusion rod holder
- 1 × stainless steel adjustable syringe pump frame
These supports are intended for compatible infusion and syringe pump equipment.
Storage
The pendant includes one storage item, providing additional space for compatible clinical accessories and equipment.
Construction & Surface Treatment
The main structure is specified as high-strength aluminium alloy profiles.
The surface treatment is electrostatic spraying.
The supplied source also states ceiling-mounted installation, stable and firm. However, because the product is identified as a Floor Model Pendant, the exact mounting configuration should be confirmed before installation or purchase.
Technical Specifications
| Specification |
Details |
| Product |
Medinain Single Arm Floor Model Medical Pendant |
| Configuration |
Single Arm / Floor Model |
| Medical Gas Interface |
Oxygen, vacuum suction, compressed air |
| Oxygen Connections |
2 pcs |
| Vacuum Suction Connections |
2 pcs |
| Compressed Air |
Included |
| Interface Design |
Different colors and shapes |
| Anti-Missing Function |
Yes |
| Insertion/Removal Cycles |
>20,000 |
| Gas Interface Seal |
Secondary sealing |
| Interface States |
ON / OFF / PULL |
| Gas Maintenance |
Specified |
| Power Sockets |
10 |
| Socket Rating |
220V / 10A |
| Equipotential Grounding Terminals |
2 |
| Infusion Rod Holder |
1 × stainless steel, adjustable |
| Syringe Pump Frame |
1 × stainless steel, adjustable |
| Storage |
1 item |
| Main Material |
High-strength aluminium alloy profiles |
| Surface Treatment |
Electrostatic spraying |
| Installation Description |
Source states ceiling-mounted, stable and firm; verify exact configuration |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
