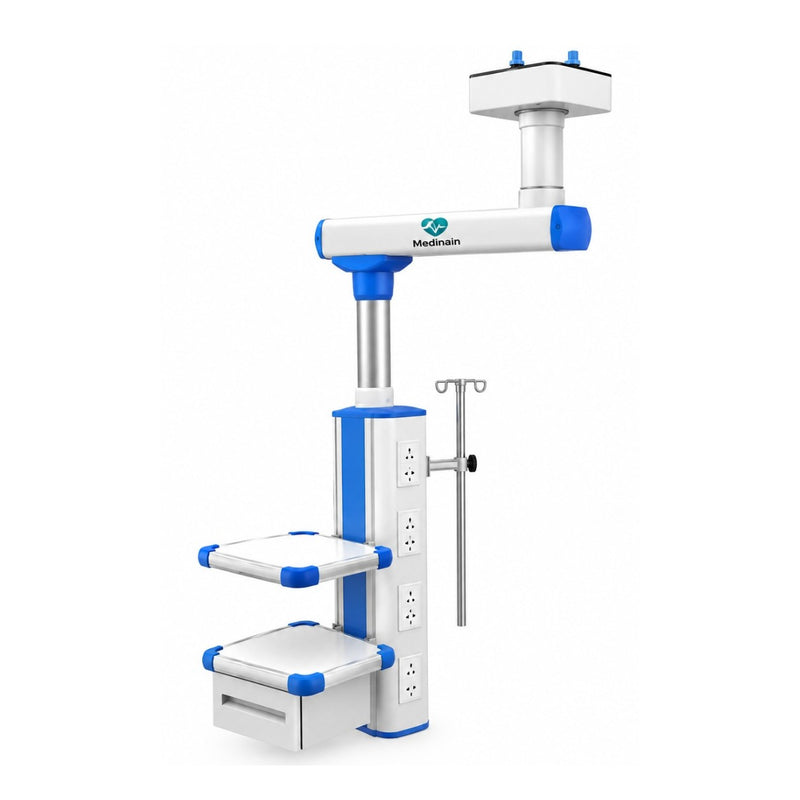

The Medinain Single Arm Medical Pendant is designed for organized positioning of medical equipment, gas connections, electrical power, networking, and clinical accessories within hospital and healthcare environments. It features a 1000 mm horizontal arm radius, 340° horizontal rotation, motorized vertical adjustment, integrated medical gas terminals, adjustable instrument platforms, and dedicated pump racks.
Its high-strength aluminium alloy construction and electrostatic powder-coated surface provide the specified structural and finishing characteristics for clinical equipment installation.
✅ Key Features
- Single-arm medical pendant configuration
- 1000 mm horizontal arm activity radius
- 340° horizontal rotation
- Simultaneous rotation of horizontal arm and functional box
- Motorized functional box vertical lift: 250–600 mm
- 100W motor
- Oxygen balloon expandable isolation brake at rotary joint
- Brake-button operation for positioning and secure locking
- Standard gas configuration: 2 oxygen + 2 suction terminals
- Gas terminals rated for more than 20,000 mating cycles
- Secondary sealing design with ON/OFF/PULL states
- Air service capability as specified
- Two-layer height-adjustable instrument platform
- Rounded bumper design
- 20 kg load capacity per platform
- Six electrical outlets
- Two potential ground terminals
- RJ45 network interface
- Integrated drawer
- Syringe pump rack
- Infusion pump rack
- 150 kg total weight loading capacity
- High-strength aluminium alloy construction
- High-voltage electrostatic powder spray surface treatment
Single Arm Positioning System
The horizontal arm has an activity radius of 1000 mm and a horizontal rotation angle of 340°.
The horizontal arm and functional box can be rotated simultaneously, providing flexible positioning of equipment around the clinical working area.
Motorized Vertical Lift
The functional box provides a vertical lift stroke of 250–600 mm.
A 100W motor operates the vertical adjustment mechanism, allowing the pendant height to be changed according to the working configuration.
Rotary Joint & Isolation Brake
The rotary joint incorporates an oxygen balloon expandable isolation brake.
The supplied operating mechanism allows the user to:
- Hold down the brake button to rotate the device.
- Position the pendant as required.
- Release the brake button to secure the device and help prevent unwanted drift.
Medical Gas Terminals
The standard gas terminal configuration includes:
The gas terminals are available in different colors and shapes and are specified for more than 20,000 mating cycles.
The terminal design uses a secondary seal with three operating states:
The supplied specification also states that the terminal design can carry air service.
Adjustable Instrument Platforms
The Single Arm pendant includes two instrument platform layers.
The platforms are height adjustable and incorporate a rounded bumper design.
Each platform can support a specified load of 20 kg.
Electrical & Network Connections
The pendant provides multiple connection points for clinical equipment:
- 6 × electrical outlets
- Outlet rating: 220V / 10A
- 2 × potential ground terminals
- 1 × RJ45 network interface
Specified power supply options are:
- AC 220V, 50Hz
- AC 110V, 60Hz
Drawer & Pump Racks
The specified configuration includes:
- 1 × drawer
- 1 × syringe pump rack
- 1 × infusion pump rack
These integrated components provide dedicated support and storage for compatible clinical equipment and accessories.
Construction & Surface Treatment
The main structure is manufactured from high-strength aluminium alloy.
The surface treatment is specified as imported high-voltage electrostatic powder spray.
Technical Specifications
| Specification |
Details |
| Product |
Medinain, Single Arm |
| Configuration |
Single Arm |
| Horizontal Arm Radius |
1000 mm |
| Horizontal Rotation |
340° |
| Functional Box Vertical Lift |
250–600 mm |
| Motor Power |
100 W |
| Rotary Brake |
Oxygen balloon expandable isolation brake |
| Oxygen Terminals |
2 pcs |
| Suction Terminals |
2 pcs |
| Gas Terminal Mating Cycles |
>20,000 |
| Gas Terminal Seal |
Secondary seal |
| Gas Terminal States |
ON / OFF / PULL |
| Air Service |
Supported as specified |
| Instrument Platforms |
2 layers |
| Platform Height |
Adjustable |
| Platform Load Capacity |
20 kg each |
| Electrical Outlets |
6 pcs |
| Electrical Outlet Rating |
220V / 10A |
| Potential Ground Terminals |
2 pcs |
| Network Interface |
RJ45, 1 pc |
| Drawer |
1 pc |
| Syringe Pump Rack |
1 pc |
| Infusion Pump Rack |
1 pc |
| Total Weight Loading |
150 kg |
| Power Supply |
AC220V, 50Hz / AC110V, 60Hz |
| Main Material |
High-strength aluminium alloy |
| Surface Treatment |
High-voltage electrostatic powder spray |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
