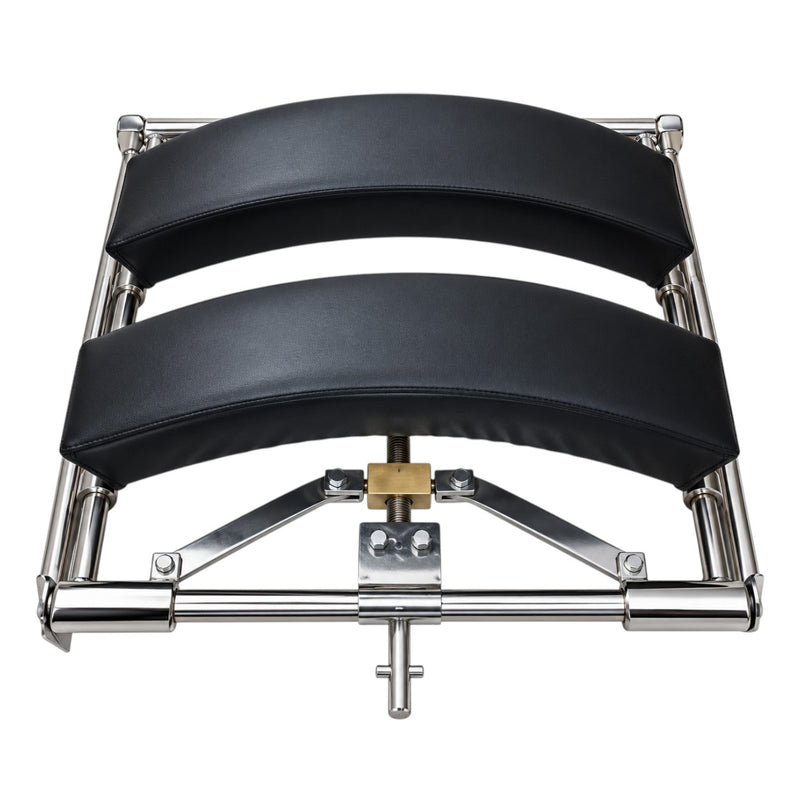

The Medinain Spine Attachments Ortho Attachment is designed to support and align the patient's back during therapy and surgical positioning procedures. Its ergonomically padded, curved supports are intended to improve patient comfort while helping maintain a stable position during treatment.
The attachment uses a strong 304 stainless steel frame and provides versatile positioning for prone, lateral, and supine procedures. Its radiolucent extension measures 48 × 17 inches (1220 × 430 mm) and is designed to provide access for C-Arm and O-Arm imaging.
✅ Key Features
- Designed to support and align the patient's back during therapy treatments
- Ergonomically padded, curved patient supports
- Helps maintain patient stability during procedures
- Allows the operating table's positioning functions to be used for patient repositioning
-
Radiolucent extension: 48 × 17 inches (1220 × 430 mm)
- Provides C-Arm and O-Arm access
- Space-saving design requiring less than 6 sq ft (0.5 sq m) for storage
- Accessories can be stored conveniently on the frame
- Pressure-management supports for the chest, hips and head
- Supports prone, lateral and supine positioning
- Constructed from 304 stainless steel
- Strong and stable frame design
- Adjustable structure for different body types and positioning requirements
Ergonomic Padded Support
The attachment features padded, curved supports designed to provide ergonomic support while positioning the patient's spine. The supplied product information describes the padding as helping keep the patient comfortable and steady during the procedure.
Radiolucent Extension for C-Arm & O-Arm Access
The radiolucent extension measures:
48 × 17 inches (1220 × 430 mm)
Its radiolucent construction is designed to provide access for C-Arm and O-Arm imaging, supporting image-guided surgical positioning requirements.
Versatile Patient Positioning
The Spine Ortho Attachment accommodates multiple positioning configurations, including:
This positioning versatility allows the attachment to be configured according to the procedure and patient requirements.
Pressure Management Supports
The system includes dedicated supports for the:
These supports are designed to help distribute and manage contact pressure while maintaining the patient's intended position.
304 Stainless Steel Construction
The attachment is manufactured from 304 stainless steel, providing a strong structural platform with resistance to rust and corrosion.
Space-Saving Storage
The attachment has a space-saving design that requires less than 6 sq ft (0.5 sq m) for storage. The supplied information also states that accessories can be stored conveniently on the frame.
Adjustable Design
The adjustable structure is designed to accommodate different body types and therapy or surgical positioning requirements. This allows the support arrangement to be adapted according to the patient's needs and procedure.
Technical Specifications
| Specification |
Technical Details |
| Product Name |
Medinain Spine Attachments Ortho Attachment |
| Application |
Spine positioning / therapy and surgical support |
| Extension Type |
Radiolucent Extension |
| Extension Size |
48 × 17 in |
| Extension Size (Metric) |
1220 × 430 mm |
| Imaging Access |
C-Arm and O-Arm |
| Patient Positions |
Prone, Lateral, Supine |
| Support Areas |
Chest, Hips and Head |
| Construction Material |
304 Stainless Steel |
| Support Type |
Ergonomic padded support |
| Frame |
Strong and stable adjustable frame |
| Storage Footprint |
Less than 6 sq ft (0.5 sq m) |
| Accessory Storage |
Accessories stored on frame |
| Adjustment |
Adjustable structure for different body types and positioning needs |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
