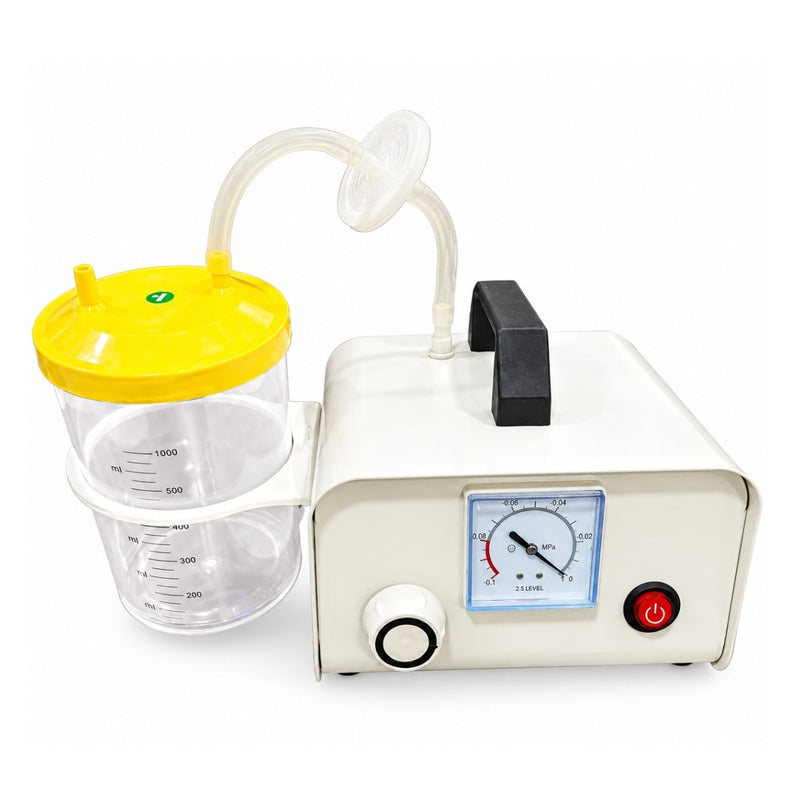

The Medinain Suction Apparatus 10D is an electrically operated suction device equipped with an oil-free piston pump. It is designed to provide suction without the need for routine oil addition and is specified with a maximum vacuum of 90 kPa, pumping rate of ≥10 L/min, and a 1000 mL collection reservoir.
The apparatus is designed for convenient operation and incorporates a configuration intended to prevent reverse flow of liquid when the machine stops.
✅ Key Features
- Oil-free piston pump
- Clean operation without oil and smoke pollution
- No routine oil addition required for daily maintenance
- Automatic operation mode
- No positive pressure during use, as specified
- Designed to prevent reverse-flow pressure when the machine stops
- Helps prevent collected liquid from flowing backward
- Maximum vacuum: 90 kPa
- Pumping rate: ≥10 L/min
-
1000 mL glass jar/reservoir
- Silicone suction tubing
- Electric power source
- Operating voltage: AC 220V ± 22V
- Frequency: 50 Hz ± 1 Hz
- Noise level: ≤65 dB(A)
Oil-Free Piston Pump
The Medinain 10D uses an oil-free piston pump.
According to the supplied product description, this provides:
- Clean operation without oil and smoke
- No requirement to add oil for routine daily maintenance
- Convenient operation and maintenance
Suction Performance
The apparatus is specified with:
-
Maximum vacuum: 90 kPa
-
Pumping rate: ≥10 L/min
These specifications describe the suction performance of the supplied model.
Reverse-Flow Protection
The product description states that there is no flow-backwards pressure when the machine stops, helping prevent collected liquid from flowing backward through the suction system.
This feature is intended to provide additional protection against reverse movement of aspirated liquid when suction is stopped.
Collection Reservoir
The Medinain Suction Apparatus 10D is supplied with:
- 1 glass jar
- 1000 mL reservoir capacity
The collection reservoir is used for collecting aspirated fluids.
Automatic Operation
The specified operation mode is Automatic, with the system powered electrically.
The supplied specifications list an operating voltage of AC 220V ± 22V and frequency of 50 Hz ± 1 Hz.
Technical Specifications
| Specification |
Technical Details |
| Product |
Medinain Suction Apparatus 10D |
| Operation Mode |
Automatic |
| Pump Type |
Piston Pump |
| Pump Design |
Oil-free |
| Power Source |
Electric |
| Voltage |
AC 220V ± 22V |
| Frequency |
50 Hz ± 1 Hz |
| Number of Glass Jars |
1 |
| Reservoir Capacity |
1000 mL |
| Maximum Vacuum |
90 kPa |
| Pumping Rate |
≥10 L/min |
| Tube Material |
Silicone Pipe |
| Noise |
≤65 dB(A) |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
