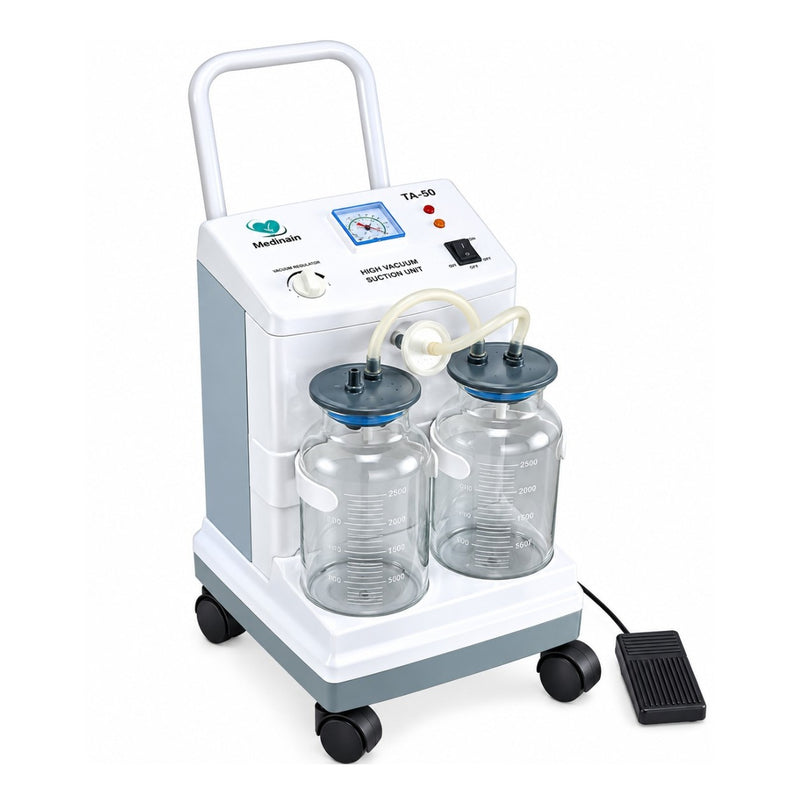

The Medinain Suction Apparatus 7A 25D is an electric medical suction machine equipped with an oil-free piston pump, automatic operation, dual 2500 mL glass jar capacity, and both hand and foot switch controls. Its design eliminates the need for routine oil addition and is specified to operate without oil or smoke pollution.
The unit provides adjustable negative pressure with a maximum vacuum of 90 kPa and a pumping rate of ≥20 L/min. It features four wheels for mobility, overflow protection, and a design intended to prevent liquid from flowing backward when the machine stops.
With a maximum continuous working time of 30 minutes, the 7A 25D is designed for controlled suction applications in healthcare environments.
✅ Key Features
-
Oil-free piston pump technology
- Clean operation without oil and smoke pollution
- No routine daily oil addition required
- Automatic operation
- Hand-switch and foot-switch controls
- Adjustable negative pressure
- Maximum vacuum of 90 kPa
- Maximum negative pressure value >0.09 MPa
- Pumping rate of ≥20 L/min
- Two 2500 mL glass jars
- Overflow protection mechanism
- Four-wheel mobile design
- Silicone suction tubing
- Maximum continuous working time of 30 minutes
- Class I, Type B electrical appliance safety requirement
- Compact dimensions of 400 × 355 × 600 mm
- Electric power operation
Oil-Free Piston Pump
The Medinain 7A 25D uses an oil-free piston pump, eliminating the need for routine oil maintenance. According to the supplied product information, the pump operates without oil or smoke pollution.
Adjustable Negative Pressure
The suction apparatus allows the operator to select negative pressure according to the application. The supplied specifications list a maximum negative pressure value greater than 0.09 MPa and a maximum vacuum of 90 kPa.
Dual 2500 mL Glass Jar System
The unit is equipped with two glass jars and a specified 2500 mL glass jar/reservoir capacity. An overflow protection mechanism is included as part of the suction system.
Hand & Foot Switch Operation
The Medinain 7A 25D includes both hand-switch and foot-switch controls, providing convenient operating options for healthcare personnel.
Mobile Four-Wheel Design
With four wheels and dimensions of 400 × 355 × 600 mm (L × W × H), the apparatus is designed as a mobile suction unit for healthcare environments.
Backflow Protection Design
The supplied product description states that there is no backward-flow pressure when the machine stops, helping prevent collected liquid from flowing backward through the suction system.
30-Minute Continuous Working Time
The specified maximum continuous working time is 30 minutes, with a continuity rate of 50%. Operation should remain within the manufacturer's specified duty cycle.
Technical Specifications
| Specification |
Technical Details |
| Product Name |
Medinain Suction Apparatus 7A 25D |
| Operation Mode |
Automatic |
| Pump Type |
Piston Pump |
| Voltage |
AC 220V ± 22V |
| Frequency |
50 Hz ± 1 Hz |
| Number of Wheels |
4 Wheels |
| Glass Jar Capacity |
2500 mL |
| Number of Glass Jars |
2 Jars |
| Noise Level |
≤65 dB(A) |
| Weight |
14 kg |
| Max Negative Pressure Value |
>0.09 MPa |
| Dimensions |
400 × 355 × 600 mm (L × W × H) |
| Max Vacuum |
90 kPa |
| Tube Material |
Silicone Pipe |
| Power |
≤180 VA |
| Pumping Rate |
≥20 L/min |
| Reservoir Capacity |
2500 mL |
| Maximum Continuous Working Time |
30 minutes |
| Continuity Rate |
50% |
| Electrical Appliance Safety Requirement |
Class I, Type B |
| Power Source |
Electric |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
