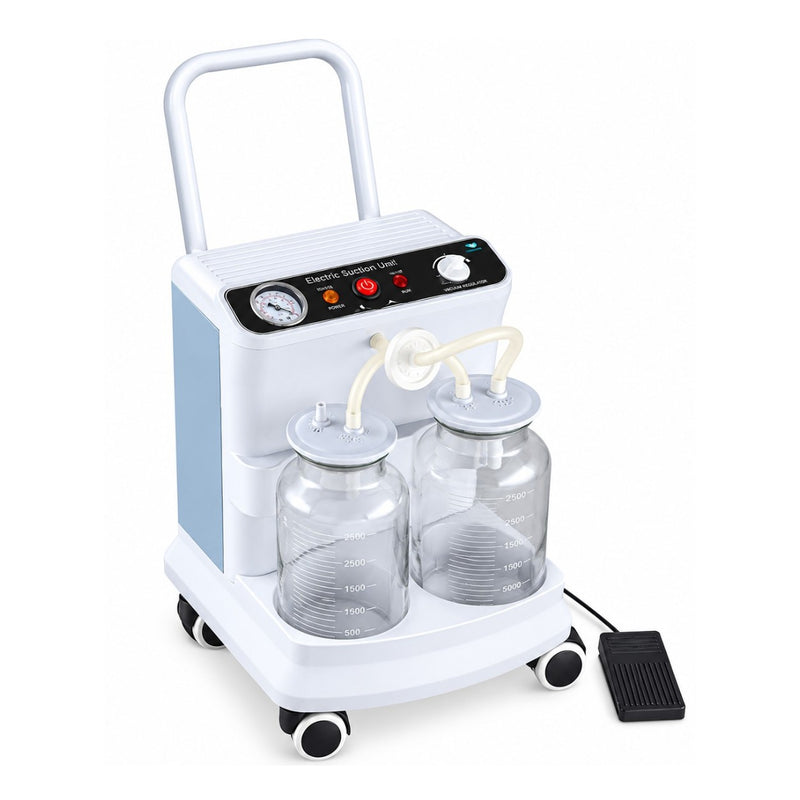

The Medinain Suction Apparatus 7A 45D is an electric medical suction machine featuring an oil-free piston pump, automatic operation, dual 2500 mL glass jars, adjustable negative pressure, and four-wheel mobility. The oil-free pump design eliminates the need for routine oil addition and is specified to operate without oil and smoke pollution.
The unit provides a maximum vacuum of 90 kPa and a pumping rate of ≥20 L/min. It includes both hand and foot switches, an overflow protection mechanism, and a design intended to prevent liquid from flowing backward when the machine stops.
With a specified maximum continuous working time of 30 minutes, the 7A 45D is designed for controlled suction applications in healthcare environments.
✅ Key Features
- Oil-free piston pump
- Clean operation without oil and smoke pollution
- No daily oil addition required
- Automatic operation
- Hand-switch and foot-switch controls
- Adjustable negative pressure
- Maximum vacuum: 90 kPa
- Maximum negative pressure value: >0.09 MPa
- Pumping rate: ≥20 L/min
- Two glass jars
- 2500 mL specified glass jar/reservoir capacity
- Overflow protection mechanism
- Four-wheel mobile design
- Silicone suction pipe
- Maximum continuous working time: 30 minutes
- Continuity rate: 50%
- Class I, Type B electrical appliance safety requirement
- Compact 400 × 355 × 600 mm dimensions
Oil-Free Piston Pump
The 7A 45D uses an oil-free piston pump, providing suction without the need for routine oil addition. According to the supplied product description, this design avoids oil and smoke pollution during operation.
Adjustable Negative Pressure
The suction apparatus allows negative pressure to be selected according to the application. The supplied specifications list a maximum vacuum of 90 kPa and a maximum negative pressure value greater than 0.09 MPa.
Dual Glass Jar System
The unit incorporates two glass jars, with the supplied specification listing 2500 mL for glass jar/reservoir capacity. An overflow protection mechanism is included.
Hand & Foot Switch Operation
The Medinain 7A 45D provides both hand-switch and foot-switch controls, allowing convenient operation during suction procedures.
Four-Wheel Mobile Design
The apparatus is equipped with four wheels, making it suitable for movement within healthcare environments. Its specified dimensions are 400 × 355 × 600 mm (L × W × H).
Backflow Protection
The supplied product description states that there is no backward-flow pressure when the machine stops, helping prevent collected liquid from flowing backward through the suction system.
Technical Specifications
| Specification |
Technical Details |
| Product Name |
Medinain Suction Apparatus 7A 45D |
| Operation Mode |
Automatic |
| Pump Type |
Piston Pump |
| Voltage |
AC 220V ± 22V |
| Frequency |
50 Hz ± 1 Hz |
| Number of Wheels |
4 Wheels |
| Glass Jar Capacity |
2500 mL |
| Number of Glass Jars |
2 Jars |
| Noise Level |
≤65 dB(A) |
| Weight |
14 kg |
| Max Negative Pressure Value |
>0.09 MPa |
| Dimensions |
400 × 355 × 600 mm (L × W × H) |
| Max Vacuum |
90 kPa |
| Tube Material |
Silicone Pipe |
| Power |
≤180 VA |
| Pumping Rate |
≥20 L/min |
| Reservoir Capacity |
2500 mL |
| Maximum Continuous Working Time |
30 minutes |
| Continuity Rate |
50% |
| Electrical Appliance Safety Requirement |
Class I, Type B |
| Power Source |
Electric |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
