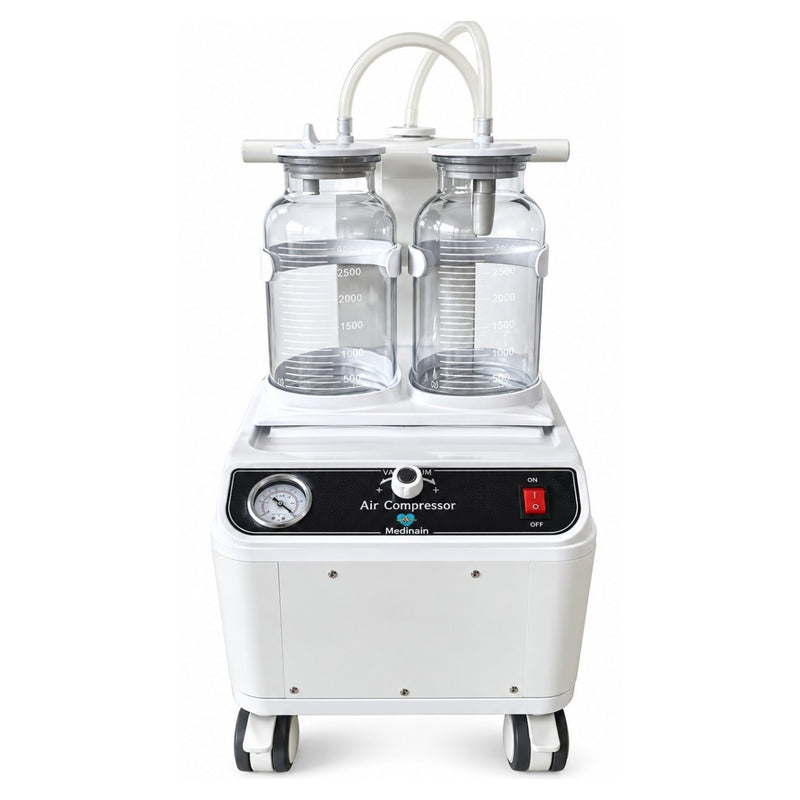

The Medinain Suction Apparatus 7A 75D is an electric medical suction machine equipped with an oil-free piston pump, automatic operation, dual 2500 mL glass jars, adjustable negative pressure, and four-wheel mobility. Its oil-free pump design eliminates the need for routine oil addition and is specified to operate without oil and smoke pollution.
The unit provides a maximum vacuum of 90 kPa and a pumping rate of ≥20 L/min. It includes hand and foot switch controls, an overflow protection mechanism, and a design intended to prevent liquid from flowing backward when the machine stops.
With a specified maximum continuous working time of 30 minutes and a 50% continuity rate, the 7A 75D is designed for controlled suction applications in healthcare environments.
✅ Key Features
- Oil-free piston pump
- Clean operation without oil and smoke pollution
- No daily oil addition required
- Automatic operation
- Hand-switch and foot-switch controls
- Adjustable negative pressure
- Maximum vacuum of 90 kPa
- Maximum negative pressure value >0.09 MPa
- Pumping rate of ≥20 L/min
- Two glass jars
- 2500 mL specified glass jar/reservoir capacity
- Overflow protection mechanism
- Four-wheel mobile design
- Silicone suction pipe
- Maximum continuous working time of 30 minutes
- Continuity rate of 50%
- Class I, Type B electrical appliance safety requirement
- Compact dimensions of 400 × 355 × 600 mm
Oil-Free Piston Pump
The 7A 75D uses an oil-free piston pump, eliminating the need for routine oil addition. According to the supplied product description, the pump operates without oil and smoke pollution.
Adjustable Negative Pressure
The suction apparatus allows negative pressure to be selected according to the application. The supplied specifications list a maximum vacuum of 90 kPa and a maximum negative pressure value greater than 0.09 MPa.
Dual Glass Jar System
The unit incorporates two glass jars, with the supplied specification listing 2500 mL for the glass jar/reservoir capacity. An overflow protection mechanism is included.
Hand & Foot Switch Operation
The Medinain 7A 75D provides both hand-switch and foot-switch controls, allowing convenient operation during suction procedures.
Four-Wheel Mobile Design
The apparatus is equipped with four wheels, supporting mobility within healthcare environments. The specified dimensions are 400 × 355 × 600 mm (L × W × H).
Backflow Protection
The supplied product description states that there is no backward-flow pressure when the machine stops, helping prevent collected liquid from flowing backward through the suction system.
Technical Specifications
| Specification |
Technical Details |
| Product Name |
Medinain Suction Apparatus 7A 75D |
| Operation Mode |
Automatic |
| Pump Type |
Piston Pump |
| Voltage |
AC 220V ± 22V |
| Frequency |
50 Hz ± 1 Hz |
| Number of Wheels |
4 Wheels |
| Glass Jar Capacity |
2500 mL |
| Number of Glass Jars |
2 Jars |
| Noise Level |
≤65 dB(A) |
| Weight |
14 kg |
| Max Negative Pressure Value |
>0.09 MPa |
| Dimensions |
400 × 355 × 600 mm (L × W × H) |
| Max Vacuum |
90 kPa |
| Tube Material |
Silicone Pipe |
| Power |
≤180 VA |
| Pumping Rate |
≥20 L/min |
| Reservoir Capacity |
2500 mL |
| Maximum Continuous Working Time |
30 minutes |
| Continuity Rate |
50% |
| Electrical Appliance Safety Requirement |
Class I, Type B |
| Power Source |
Electric |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
