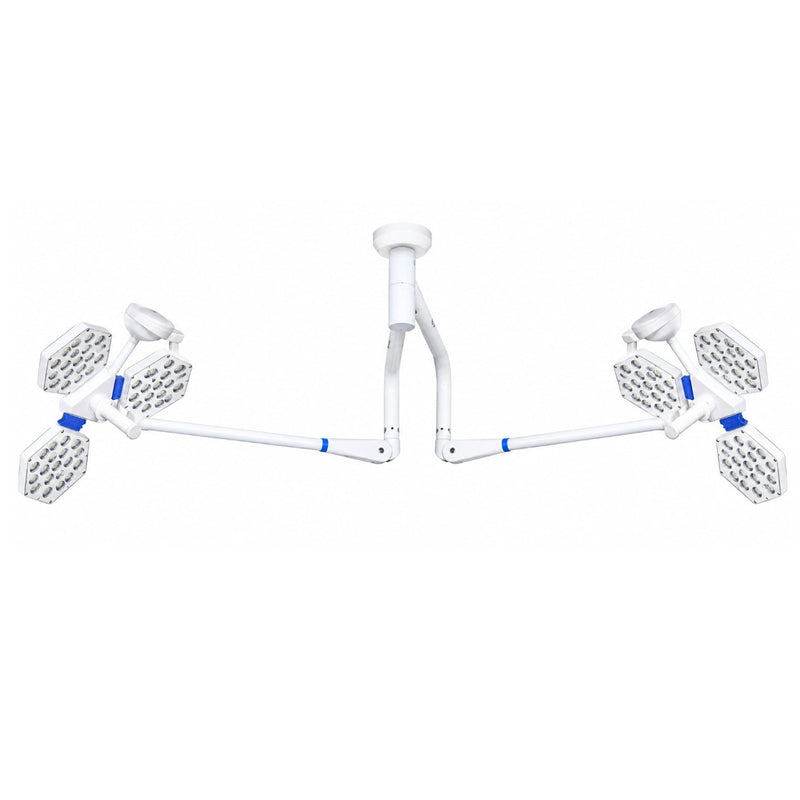

The Medinain Vega 303 OT LED Light is a dual-head LED operating theatre light developed for the requirements of modern surgery and different surgical disciplines.
The Vega Series is described as an innovative surgical lighting solution with a homogeneous light characteristic intended to increase surgeon comfort across different areas of the operative field, whether large or small.
The Vega 303 features 125,000 Lux + 125,000 Lux illumination, with 57 + 57 LEDs, providing two high-intensity LED light heads. It includes 10–100% digital touch intensity control, manual focusing, dual memory function, 3800–4800K colour temperature, and CRI 93 Ra.
✅ Key Features
- Dual-head OT LED surgical light
-
125,000 Lux + 125,000 Lux specified intensity
- 57 + 57 LEDs
- 10–100% digital touch intensity control
- Dual memory function
- Manual focusing
- 3800–4800K colour temperature
- CRI 93 Ra
- Spot diameter: 100–150 mm
- Depth: 10–25 cm
- LED average life: >50,000 hours
- 609.6 + 609.6 mm light-head diameter
- 220V/50Hz AC power supply
- 45.6 + 45.6W power consumption
- Homogeneous light characteristic described as supporting surgeon comfort
- Designed for modern surgical and clinical procedure environments
Dual-Head 125,000 Lux Illumination
The Vega 303 uses two LED light heads, each specified at 125,000 Lux:
-
Head 1: 125,000 Lux
-
Head 2: 125,000 Lux
The two light heads provide separate sources of high-intensity surgical illumination and can be positioned according to the requirements of the procedure.
Specification note: The illumination values are presented separately as 125,000 + 125,000 Lux and should not be represented as a single combined Lux rating.
57 + 57 LED Configuration
Each Vega 303 light head contains 57 LEDs, giving the specified configuration of 57 + 57 LEDs.
The supplied specification gives an LED average life of more than 50,000 hours.
Digital Touch Intensity Control
The Vega 303 incorporates 10–100% digital touch intensity control, allowing the illumination level to be adjusted according to the requirements of the surgical procedure.
A dual memory function is also provided for convenient storage and recall of lighting settings.
Manual Focusing & Light Field
The Vega 303 uses manual focusing.
| Parameter |
Specification |
| Spot Diameter |
100–150 mm |
| Depth |
10–25 cm |
| Focusing |
Manual |
These are the supplied specifications for the light-field and depth characteristics.
Colour Temperature & Colour Rendering
The Vega 303 provides a 3800–4800K colour temperature range and a Colour Rendering Index of 93 Ra.
These specifications describe the colour characteristics of the surgical illumination system.
Homogeneous Vega Light
The supplied Vega Series description states that the homogeneous nature of Vega light increases surgeon comfort throughout the operative field, including both large and small areas.
The Vega 303 therefore combines the series' stated homogeneous-light concept with a dual-head configuration for operating-theatre illumination.
Technical Specifications
| Specification |
Vega 303 |
| Model |
Vega 303 |
| Light Type |
LED OT / Surgical Light |
| Configuration |
Dual Head |
| Intensity – Head 1 |
125,000 Lux |
| Intensity – Head 2 |
125,000 Lux |
| Spot Diameter |
100–150 mm |
| Depth Diameter |
10–25 cm |
| Colour Temperature |
3800–4800K |
| Colour Rendering Index |
93 Ra |
| Focusing |
Manual |
| LED Average Life |
>50,000 Hours |
| Number of LEDs |
57 + 57 |
| Diameter of Light |
609.6 + 609.6 mm |
| Intensity Control |
10–100% Digital Touch |
| Power Supply |
220V/50Hz AC |
| Power Consumption |
45.6 + 45.6W |
| Special Function |
Dual Memory Function |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
