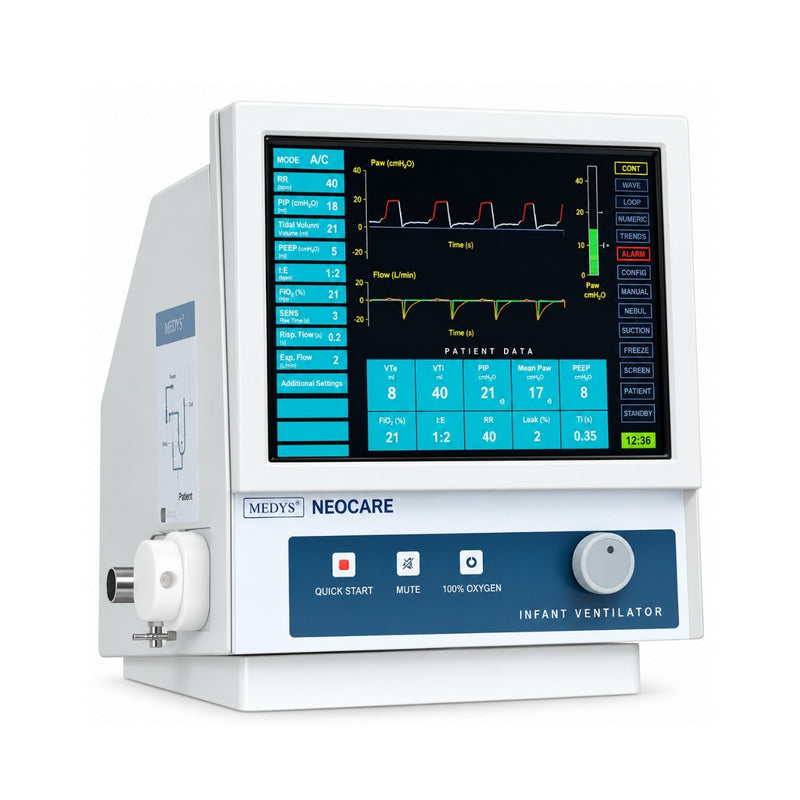

Medisys Neocare Neonatal Ventilator

The Refurbished Medisys Neocare Neonatal Ventilator is a micro-controller-based, continuous-flow mechanical ventilator designed specifically for neonatal, infant, and pediatric patients. It incorporates both pressure-limiting and volume-limiting mechanisms to help protect fragile lungs from excessive airway pressure and delivered volume.

The Neocare provides a tidal-volume range of 6–300 mL, flow from 2–25 L/min, and respiratory rates from 1–150 breaths per minute, making it suitable for ventilation across a broad range of neonatal and pediatric requirements.

A 12.1-inch graphical LCD provides simultaneous visualization of pressure and flow curves. The ventilator also incorporates apnea backup ventilation, sensitive proximal flow and pressure triggering, and a servo-controlled oxygen blender with automatic sensor calibration and closed-loop feedback for controlled FiO₂ delivery.

The compact core ventilator module weighs approximately 8.2 kg and operates from 220–240 VAC, with an approximately 3-hour built-in battery backup.

✅ Key Features

• Neonatal-Specific Ventilation: Designed for neonates, infants, and pediatric patients.
• Continuous-Flow Ventilation: Micro-controller-based continuous-flow architecture.
• Pressure & Volume Limiting: Provides mechanisms intended to help reduce the risk of pressure- and volume-related lung injury.
• Wide Tidal Volume Range: 6–300 mL.
• Broad Respiratory Rate Range: 1–150 breaths/min.
• Flow Range: 2–25 L/min.
• Multiple Ventilation Modes: AC, SIMV/IMV, CPAP with backup ventilation, and Standby.
• Automatic Apnea Backup: Automatically transitions to backup ventilation during apnea episodes.
• Sensitive Patient Triggering: Uses both flow and pressure triggering through proximal patient sensing.
• Servo-Controlled Oxygen Blender: Provides controlled oxygen mixing for FiO₂ delivery.
• Automatic Sensor Calibration: Oxygen-control system incorporates automatic sensor calibration.
• Closed-Loop FiO₂ Feedback: Feedback control is designed to support accurate oxygen concentration delivery.
• 12.1-Inch Graphical LCD: Displays pressure and flow curves simultaneously.
• Built-In Battery: Approximately 3 hours of battery backup according to the supplied specification.
• Compact & Lightweight: Core ventilator module weighs approximately 8.2 kg.
• Refurbished & Tested: A practical option for facilities requiring neonatal and pediatric respiratory support equipment.

Neonatal & Pediatric Ventilation

The Medisys Neocare is specifically designed for:

• Neonates
• Infants
• Pediatric patients

Its low tidal-volume capability, sensitive triggering, continuous-flow architecture, and pressure/volume limiting mechanisms are designed around the requirements of ventilation in smaller and more vulnerable patients.

Clinical parameters must be selected by appropriately qualified neonatal/pediatric healthcare professionals according to patient condition and applicable clinical protocols.

Pressure & Volume Limiting

The ventilator incorporates both pressure-limiting and volume-limiting mechanisms.

These systems are intended to help reduce the potential for:

• Excessive airway pressure
• Excessive delivered volume
• Pressure-related lung injury
• Volume-related lung injury

The actual protective effect depends on appropriate ventilator setup, patient monitoring, clinical settings, and proper use of the equipment.

Ventilation Modes

The Neocare supports multiple ventilation modes:

AC – Assist/Control

Provides assisted or controlled ventilation for patients requiring mandatory respiratory support.

SIMV/IMV

Synchronized Intermittent Mandatory Ventilation (SIMV) and Intermittent Mandatory Ventilation (IMV) modes provide mandatory breaths while accommodating the patient's spontaneous respiratory activity according to the selected configuration.

CPAP with Backup Ventilation

CPAP provides continuous positive airway pressure, with backup ventilation available to provide respiratory support during apnea according to the configured system settings.

Standby

Standby mode allows the ventilator to remain ready without delivering normal active ventilation.

Sensitive Proximal Triggering

The Neocare uses proximal patient sensing and combines:

• Flow triggering
• Pressure triggering

This sensitive triggering system is designed to detect patient respiratory efforts and support synchronized ventilator response.

For neonatal patients, where spontaneous respiratory efforts can be small, sensitive triggering can be particularly important for appropriate patient-ventilator interaction.

Servo-Controlled Oxygen Blender

The ventilator incorporates a servo-controlled oxygen blender designed to provide controlled FiO₂ delivery.

The oxygen-control system includes:

• Automatic sensor calibration
• Closed-loop feedback
• Servo-controlled oxygen blending

This configuration is designed to help maintain accurate oxygen concentration according to the selected settings.
