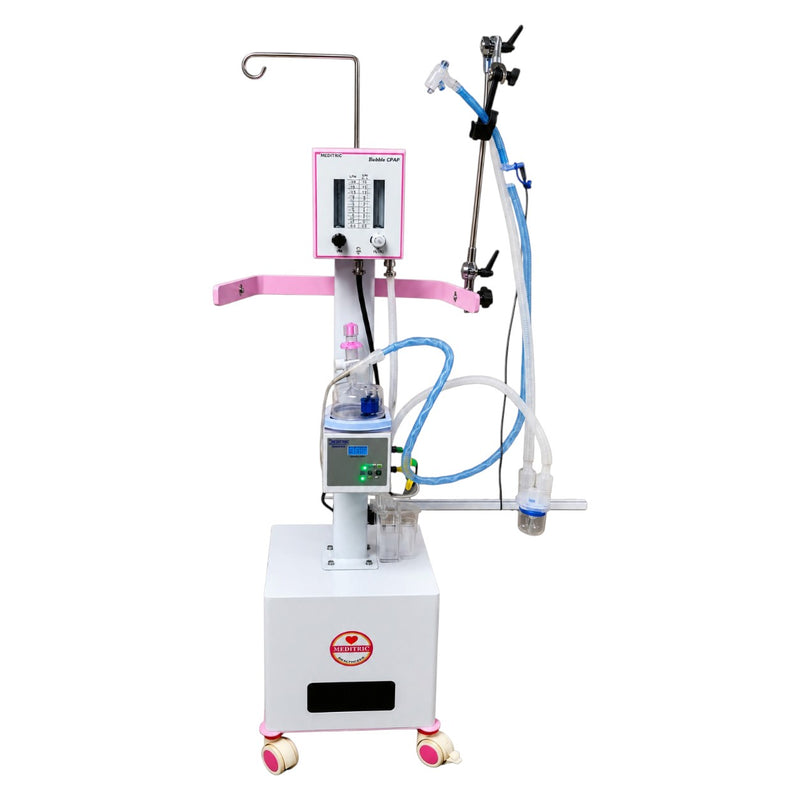

The Meditric Bubble CPAP is a neonatal respiratory support system designed to provide continuous positive airway pressure using a controlled air/oxygen mixture. The system features an inbuilt low-flow air/oxygen blender, allowing FiO₂ to be set from 21% to 100%, along with a flow meter for adjusting output flow.
The system incorporates a fully automatic servo humidifier, heated infant breathing circuit, medical-grade low-noise air compressor, and a reusable bubble generator with pressure gauge for setting airway pressure.
Its mobile design, with an IV stand and anti-skid lockable castors, supports convenient use in neonatal care environments.
Key Features
-
Inbuilt low-flow Air/Oxygen blender
-
FiO₂ adjustment from 21% to 100%
-
Integrated flow meter for output flow adjustment
-
Fully automatic servo humidifier
- Invasive and non-invasive modes
-
Medical-grade low-noise air compressor
- High-flow safety protection
-
IV stand for hanging auto-feed water bag
-
Infant heated-wire breathing circuit
- Designed to help maintain airway temperature
- Reusable bubble generator
-
Integrated pressure gauge for airway pressure setting
- Bubble generator designed for easy cleaning and sterilization
-
Anti-skid lockable castors
- Mobile design for convenient positioning
Inbuilt Air/Oxygen Blender
The Meditric Bubble CPAP features an integrated low-flow Air/Oxygen blender.
The blender allows healthcare professionals to set the FiO₂ percentage from 21% to 100% according to the required respiratory support setting.
A built-in flow meter allows adjustment of the output gas flow.
Automatic Servo Humidifier
The system incorporates a fully automatic servo humidifier with:
- Invasive mode
- Non-invasive mode
- Automatic humidification control
The humidification system is designed to support delivery of appropriately conditioned respiratory gas through the breathing circuit.
Medical-Grade Air Compressor
A medical-grade, low-noise air compressor provides the required air supply for the system.
The compressor includes high-flow safety protection, according to the supplied product specification.
Heated-Wire Infant Breathing Circuit
The Bubble CPAP includes an infant heated-wire breathing circuit designed to help maintain airway temperature during respiratory support.
The heated circuit works as part of the humidification and gas-delivery system.
Reusable Bubble Generator
The system features a reusable bubble generator with an integrated pressure gauge.
The pressure gauge allows the airway pressure to be set according to the required clinical setting.
The bubble generator is also described as easy to clean and sterilize, supporting repeated use according to appropriate cleaning and sterilization protocols.
IV Stand & Auto-Feed Water Bag
An integrated IV stand is provided for hanging the auto-feed water bag used with the humidification system.
This provides a convenient setup for the humidifier water supply.
Mobility & Lockable Castors
The Bubble CPAP is mounted on anti-skid lockable castors, allowing the unit to be moved when required and secured in position during use.
Technical Specifications
| Specification |
Details |
| Product |
Meditric Bubble CPAP |
| System Type |
Bubble CPAP |
| Air/Oxygen Blender |
Inbuilt low-flow blender |
| FiO₂ Range |
21%–100% |
| Flow Control |
Integrated flow meter |
| Humidifier |
Fully automatic servo humidifier |
| Humidifier Modes |
Invasive & non-invasive |
| Air Compressor |
Medical-grade, low-noise |
| Compressor Safety |
High-flow safety protection |
| Breathing Circuit |
Infant heated-wire breathing circuit |
| Bubble Generator |
Reusable |
| Pressure Control |
Pressure gauge for airway pressure setting |
| Water Supply |
Auto-feed water bag |
| Stand |
IV stand |
| Mobility |
Anti-skid lockable castors |
| Cleaning |
Reusable bubble generator designed for easy cleaning and sterilization |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
