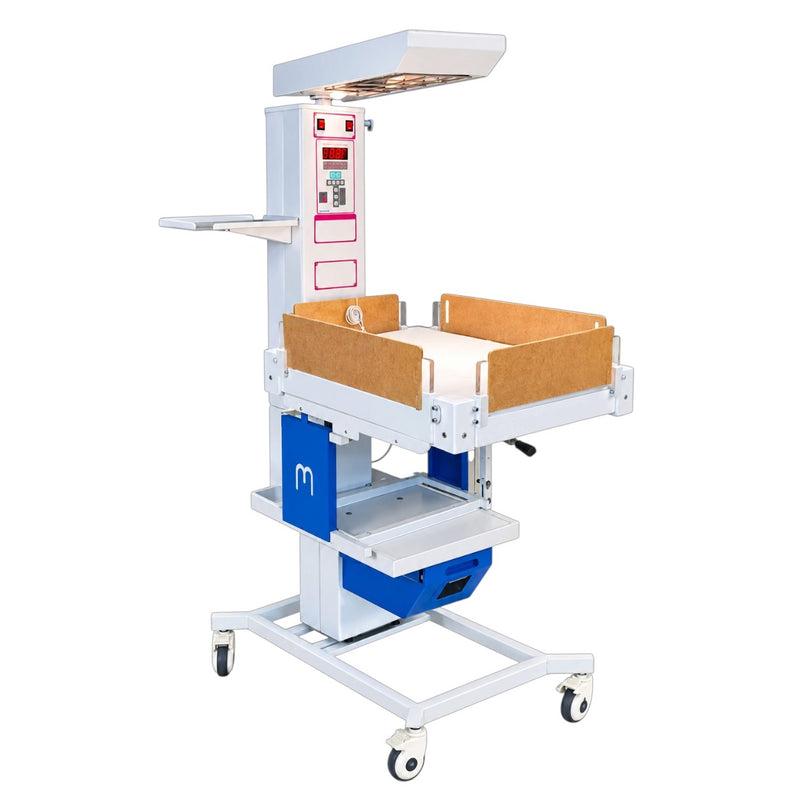

The Meditric Newborn Radiant Warmer with Temperature Control is designed for infant temperature management with skin and manual temperature control. It features a 600 W ceramic/quartz heater, adjustable skin temperature settings, digital temperature display, multiple audio-visual alarms, a stainless-steel baby bed, telescopic IV stand, PT-100 temperature probe, and PU sole wheels.
The model is also available in Dual Sensor & Touch Screen configuration.
✅ Key Features
- Microprocessor-based radiant heat warmer
- Skin and manual temperature control
- High & low temperature facility
- Ceramic / quartz 600 W heater
-
Skin temperature setting range: 32°C to 37°C
-
Display setting range: 28°C to 40°C
- Audio/visual power failure alarm
- Audio/visual high-temperature alarm
- Audio/visual low-temperature alarm
- Optional audio/visual heater-failure alarm
- Audio/visual sensor-failure alarm
- PT-100 temperature probe
- Stainless-steel baby bed tray
- Pressure PU foam mattress
- Telescopic stainless-steel IV stand
- 100 mm PU sole wheels
- Two wheels with brakes and two plain wheels
- Optional Upgar Timer
- Available with Dual Sensor & Touch Screen configuration
Microprocessor-Based Temperature Control
The Meditric radiant heat warmer provides microprocessor-based skin and manual temperature control.
Skin Temperature Setting
-
Setting range: 32°C to 37°C
Display Setting
-
Display setting range: 28°C to 40°C
The system is designed to provide controlled temperature management through the specified skin and manual control modes.
Heater
The radiant heat warmer uses a:
Ceramic / Quartz Heater – 600 W
The heater cutoff method operates from 0 to 100% in 10% intervals, according to the supplied specification.
Alarm System
The Meditric radiant heat warmer incorporates audio and visual alarms for important operating conditions.
| Alarm |
Indication |
| Power Fail |
Audio / Visual |
| Temperature High |
Audio / Visual |
| Temperature Low |
Audio / Visual |
| Heater Fail |
Audio / Visual — Optional |
| Sensor Fail |
Audio / Visual |
Dual Sensor & Touch Screen Option
This model is also available with:
The supplied information does not specify additional technical parameters for this configuration.
Temperature Probe
The radiant warmer uses a:
PT 100 temperature probe
This probe is used with the temperature control system.
Baby Bed
The baby bed consists of a stainless-steel tray.
The mattress specification is:
Pressure PU foam
IV Stand
The warmer is equipped with a telescopic stainless-steel IV stand.
Wheel System
The unit is fitted with 100 mm PU sole wheels:
- 2 wheels with brakes
- 2 plain wheels
Optional Upgar Timer
An Upgar Timer is available as an optional feature.
Heater Cutoff Method
The supplied specification states:
0 to 100% in 10% in each interval
This provides heater cutoff control in specified 10% intervals across the 0–100% range.
Technical Specifications
| Specification |
Details |
| Brand |
Meditric |
| Model |
MPBRHW-1 |
| Type |
Newborn Radiant Warmer with Temperature Control |
| Temperature Control |
Skin & Manual |
| Temperature Facility |
High & Low |
| Heater |
Ceramic / Quartz |
| Heater Power |
600 W |
| Skin Temperature Setting Range |
32°C to 37°C |
| Display Setting Range |
28°C to 40°C |
| Temperature Probe |
PT 100 |
| Power Fail Alarm |
Audio / Visual |
| High Temperature Alarm |
Audio / Visual |
| Low Temperature Alarm |
Audio / Visual |
| Heater Fail Alarm |
Audio / Visual — Optional |
| Sensor Fail Alarm |
Audio / Visual |
| Dual Sensor |
Available |
| Touch Screen |
Available |
| Mattress |
Pressure PU Foam |
| Upgar Timer |
Optional |
| IV Stand |
Telescopic Stainless Steel |
| Baby Bed |
Stainless Steel Tray |
| Heater Cutoff Method |
0–100% in 10% intervals |
| Wheels |
100 mm PU Sole |
| Braked Wheels |
2 |
| Plain Wheels |
2 |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
