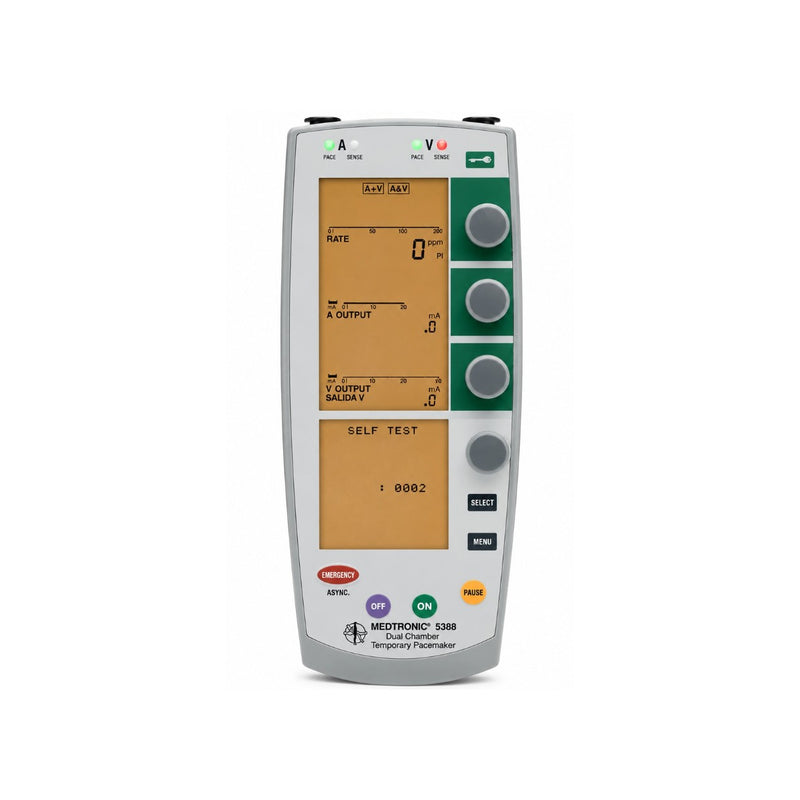

The Refurbished Medtronic 5388 Temporary Pacemaker is a battery-powered dual-chamber external pacemaker designed for short-term ant bradycardia pacing in critical-care and emergency-care environments. It can be used for temporary cardiac pacing applications, including emergency transport and bedside critical-care monitoring, according to the supplied product information.
The Medtronic 5388 operates using a standard 9V alkaline or lithium battery and supports eight selectable pacing modes, providing flexibility for different temporary pacing requirements. The device supports pacing rates up to 200 pulses per minute (ppm), with rapid atrial burst pacing capability up to 800 ppm.
The system is compatible with transvenous, epicardial, or myocardial pacing leads when used with appropriate compatible cables.
As a refurbished medical device, the exact condition, accessories, lead/cable compatibility, battery status, testing, calibration, and functional performance should be confirmed before procurement and clinical use.
✅ Key Features
- ✅ Refurbished Medtronic 5388 Pacemaker – Cost-effective option for temporary cardiac pacing applications.
- ✅ Dual-Chamber External Pacemaker – Designed for temporary pacing support.
- ✅ Battery-Powered Operation – Operates using a standard 9V battery.
- ✅ Eight Pacing Modes – Supports DDD, DVI, DDI, DOO, VOO, VVI, AOO and AAI modes.
- ✅ Pacing Rate Up to 200 ppm – Provides adjustable temporary pacing support.
- ✅ Rapid Atrial Burst Pacing – Supports atrial burst pacing up to 800 ppm according to the supplied specifications.
- ✅ Constant Current Output Control – Provides controlled pacing output.
- ✅ Defibrillation Shock Protection – Designed with defibrillation shock protection.
- ✅ Low-Battery Indicator – Provides an indication when battery replacement is required.
- ✅ Continuous Operation During Battery Replacement – Supplied information specifies continued operation during battery replacement.
- ✅ Key-Lock Function – Helps prevent accidental changes to pacing settings.
- ✅ Multiple Lead Compatibility – Compatible with transvenous, epicardial and myocardial leads through appropriate cables.
- ✅ Portable Design – Suitable for temporary pacing applications where mobility is required.
Technical Specifications
| Specification |
Details |
| Product Name |
Medtronic 5388 Temporary Pacemaker |
| Brand |
Medtronic |
| Model |
5388 |
| Condition |
Refurbished |
| Device Type |
Temporary External Pacemaker |
| Pacing Configuration |
Dual Chamber |
| Primary Application |
Temporary Antibradycardia Pacing |
| Pacing Modes |
DDD, DVI, DDI, DOO, VOO, VVI, AOO, AAI |
| Maximum Pacing Rate |
Up to 200 ppm |
| Rapid Atrial Burst Pacing |
Up to 800 ppm |
| Power Source |
9V Alkaline or Lithium Battery |
| Output Control |
Constant Current |
| Defibrillation Protection |
Yes |
| Low Battery Indicator |
Yes |
| Battery Replacement |
Continuous operation specified during replacement |
| Key Lock |
Yes |
| Lead Compatibility |
Transvenous, Epicardial or Myocardial via compatible cables |
| Application |
Critical Care, Emergency Transport & Bedside Use |
Pacing Modes
The Refurbished Medtronic 5388 Temporary Pacemaker supports eight pacing modes:
- DDD
- DVI
- DDI
- DOO
- VOO
- VVI
- AOO
- AAI
The appropriate pacing mode should be selected by qualified healthcare professionals according to the patient's clinical requirements and the applicable device instructions.
Battery & Power
The Medtronic 5388 is powered by a standard 9V alkaline or lithium battery.
The supplied information also identifies:
- Low-battery indication
- Continuous operation during battery replacement
- Portable battery-powered operation
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
