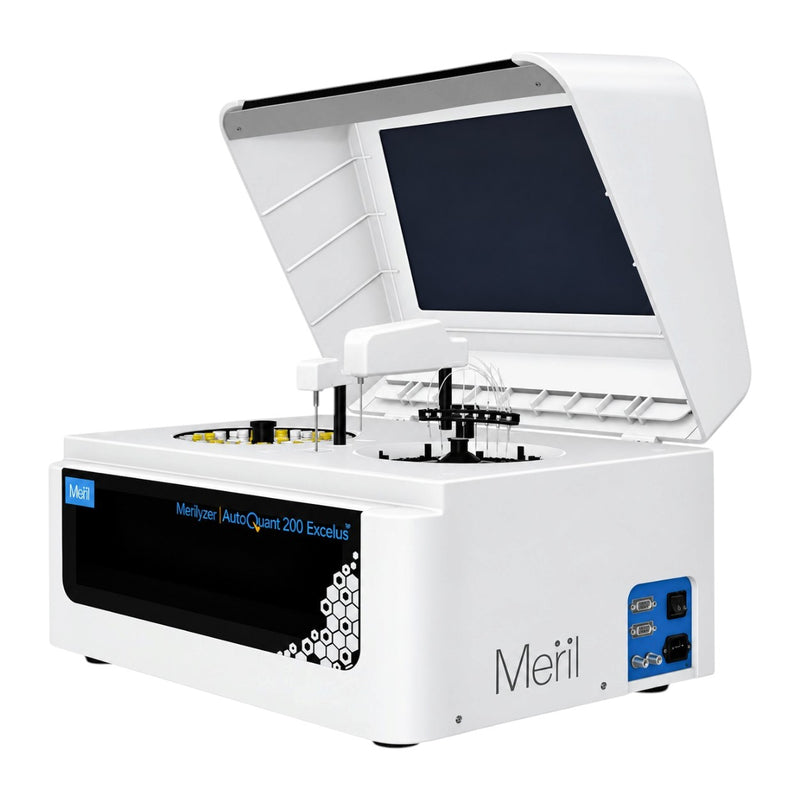

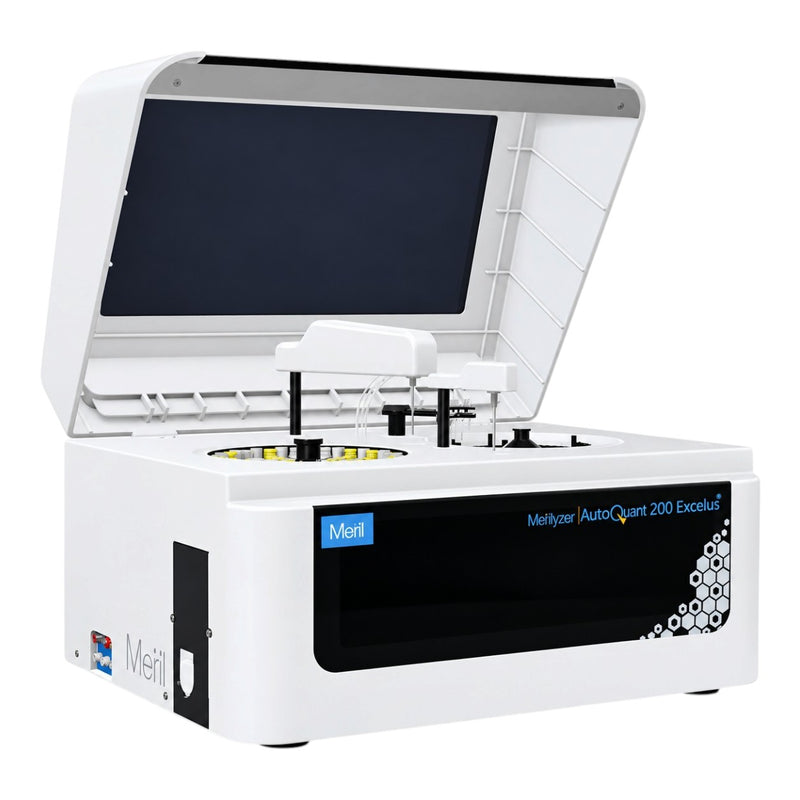

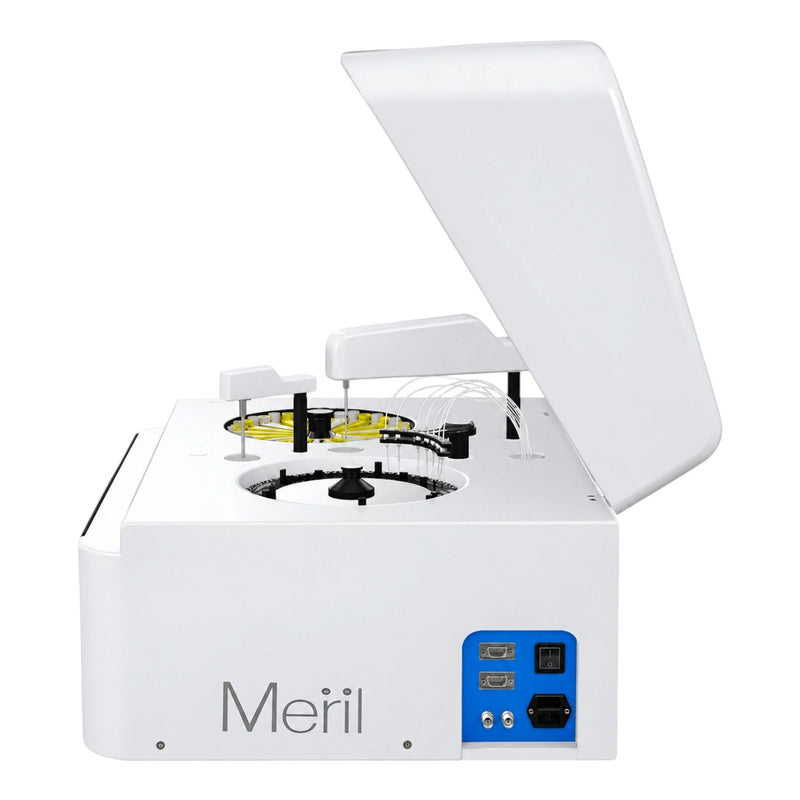

The Meril AutoQuant 200 Excelus Fully Automated Biochemistry Analyzer is a compact, fully automated biochemistry analyzer designed to support high-throughput laboratories. With a throughput of up to 200 tests per hour, it features advanced software for managing reflex tests, priority samples, and minimizing cross-contamination.
The analyzer includes onboard reagent cooling, a built-in reagent wash system, reusable cuvettes, and three wash modes to handle forbidden-pair tests and reduce carry-over. Its ceramic-block piston supports precise volume measurement, while software-based reflex testing and STAT sampling help manage laboratory workflows efficiently.
Test Menu
-
Albumin
-
Creatinine
-
Urea and Uric Acid
-
Lipid Profile: HDL, LDL, Triglycerides
-
LDH, GGT, ALP, Phosphorus, Magnesium
-
CRP and Microalbumin
-
Additional biochemistry tests through available system-packs
Key Highlights
-
Throughput of approximately 200 tests per hour
-
Optional ISE with throughput of up to 300 tests per hour
-
Onboard reagent cooling
-
Built-in reagent wash system
-
Three wash modes to handle forbidden-pair tests and reduce carry-over
-
Software-based reflex testing
-
Priority (STAT) sampling
-
Precise volume measurement with a ceramic-block piston
-
60 reusable reaction cuvettes
-
Onboard seven-step cuvette washing system
-
Multiple analytical methods and assay modes
-
Calibration with up to six points
-
Automatic rerun for abnormal marking or range errors
-
Unlimited test-result and reaction-curve storage
-
Daily and monthly quality control with archiving
Technical Specifications
| Parameter |
Specification |
| Analyzer Type |
Fully automated biochemistry analyzer |
| Throughput |
200 tests/hour |
| ISE |
Optional; up to 300 tests/hour |
| Analysis Methods |
End Point, Fixed Time (2-point), Kinetic Rate-A, Kinetic Rate-B, Sample/Reagent Blanking, ISE |
| Assay Modes |
Colorimetry, Turbidimetry, Single and Double Reagent, Multi-Standard, Mono and Bi-Chromatic |
| Sample Types |
Serum, Plasma, Urine, CSF |
| Reagent Positions |
45 each for R1 and R2 |
| Mixing |
Paddle or separate disperser |
| Reaction Cuvettes |
60 reusable cuvettes |
| Cuvette Washing |
Onboard seven-step washing |
| Reaction Time, Two-Reagent Chemistry |
30ā300 seconds per reagent |
| Reaction Time, One-Reagent Chemistry |
30ā600 seconds |
| Measurement Principle |
Photometry |
| Light Source |
Tungsten halogen lamp, 12 V, 20 W, with cooling and automatic on/off |
| Wavelengths |
9 filters: 340, 405, 450, 510, 548, 578, 620, 670 and 700 nm |
| Detector |
Silicon photodiode |
| Calibration Modes |
K-Factor, Linear, Multi-point, Logit-log, Spline, Exponential, Polynomial |
| Calibration Points |
Up to 6 points, with repeat-run list or auto-execution |
| Automatic Rerun |
Available for abnormal marking or range error |
| Quality Control |
Daily and monthly QC with archiving |
| Power Supply |
110/220 VAC, 50/60 Hz |
| Maximum Power |
250 W |
| Operating Temperature |
10Ā°Cā30Ā°C |
| Humidity |
40ā80%, with no water dew formation |
| Operating System |
Windows XP, Windows 7, Windows 8, Windows 10, or Win7x |
| Input |
Multifunctional keypad |
| Output |
RS-232 interface / printer |
| Dimensions (L Ć W Ć H) |
73.6 Ć 55.3 Ć 43.2 cm |
| Approximate Weight |
55 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
