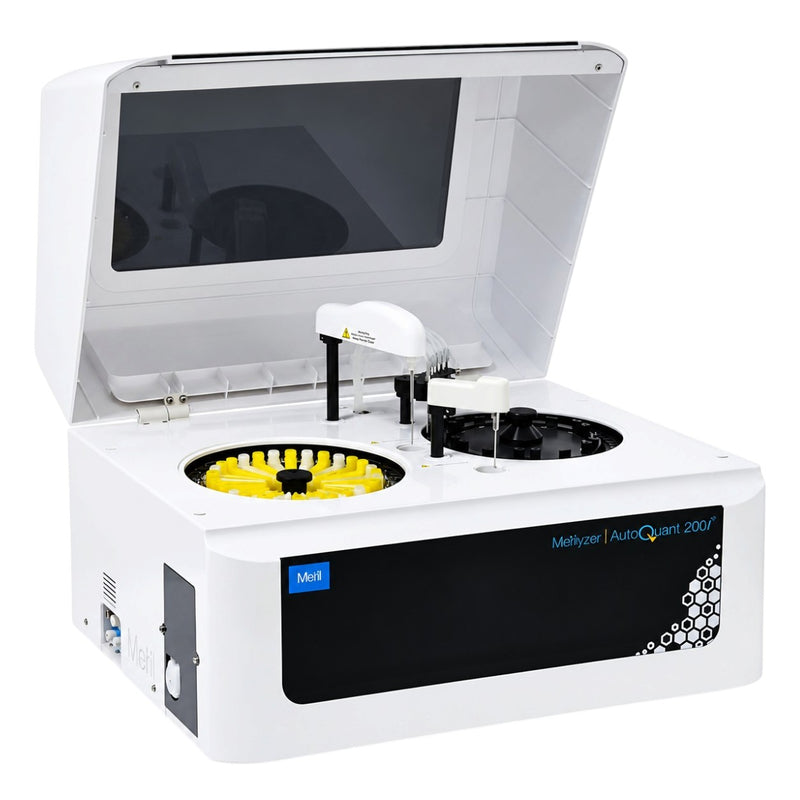

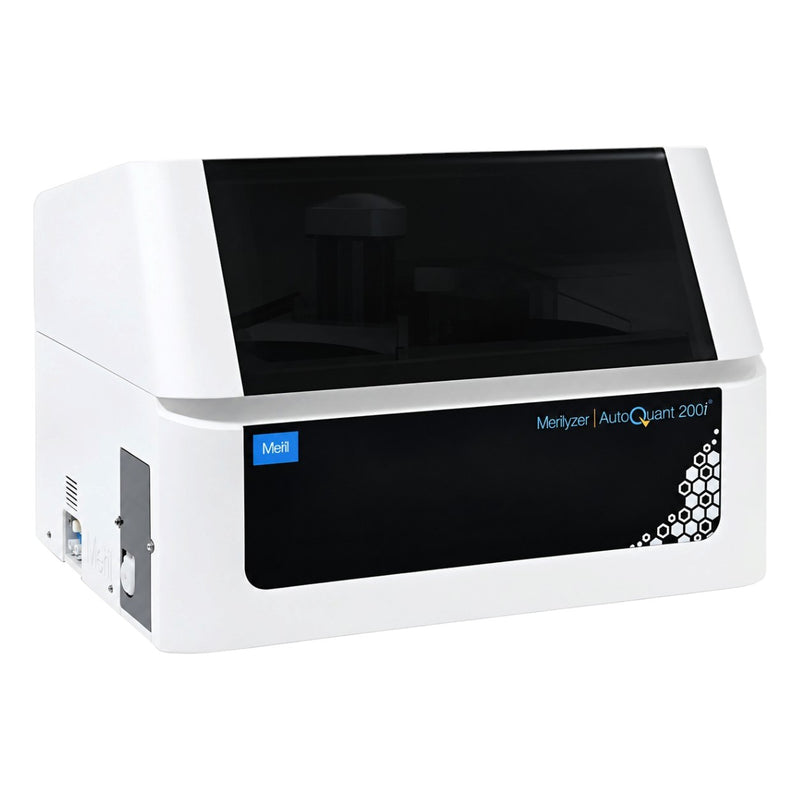

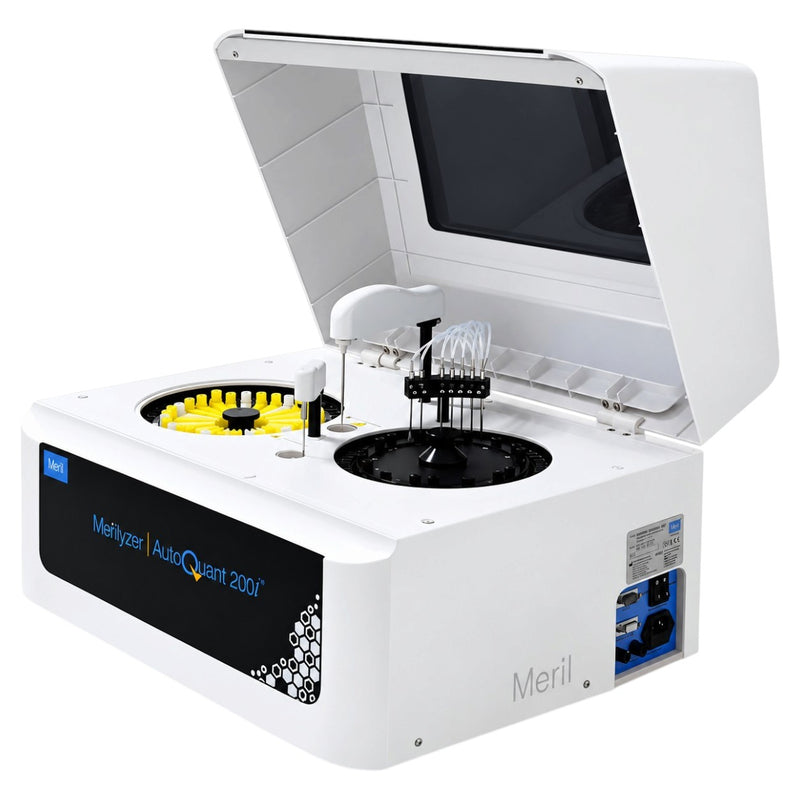

The Meril AutoQuant 200i Fully Automatic Biochemistry Analyzer is designed for clinical laboratories that require reliable, efficient, and automated biochemical testing. With a throughput of up to approximately 200 tests per hour using double-reagent testing and 240 tests per hour using single-reagent testing, it supports routine and advanced clinical chemistry applications.
The analyzer supports multiple analytical methods, including end-point, fixed-time, and kinetic analysis, with an optional ion-selective electrode (ISE) configuration for electrolyte testing.
Key Features of Meril AutoQuant 200i
-
Automated testing: Supports routine and specialty biochemical investigations.
-
Efficient throughput: Approximately 200 tests/hour with double reagents and 240 tests/hour with single reagents.
-
Optional ISE configuration: Throughput of up to approximately 300 tests/hour is specified with ISE.
-
Random-access operation: Includes STAT priority for urgent samples.
-
Built-in reagent cooling: Peltier-based cooling maintains the reagent compartment at 8–12°C.
-
Automatic cuvette washing: 60 semi-disposable reaction cuvettes with a seven-step washing system.
-
Multiple analytical methods: End-point, fixed-time, and kinetic analysis.
-
Flexible sample handling: Sample volumes from 2–50 µL with 0.1 µL adjustment steps.
-
Adjustable reagent dispensing: Reagent volumes can be adjusted in 1 µL increments.
-
Compact footprint: Designed for laboratories where bench space is limited.
-
Touchscreen operation: User-friendly interface for routine laboratory workflows.
-
Controlled reaction temperature: Maintains a specified reaction temperature of 37 ± 0.2°C.
Test Menu and Applications
The Meril AutoQuant 200i supports a broad range of clinical chemistry applications, including:
-
Liver function tests (LFT)
-
Kidney function tests (KFT)
-
Electrolyte testing with optional ISE
-
Protein profile
-
Photometric cardiac markers
-
C-reactive protein (CRP)
-
Enzyme assays
-
Substrate testing
-
Metabolite testing
-
Specialty reagent assays
-
General biochemistry panels
Technical Specifications
| Parameter |
Specification |
| Analyzer type |
Fully automatic biochemistry analyzer |
| Testing system |
Random access with STAT priority |
| Throughput, double reagent |
Approximately 200 tests/hour |
| Throughput, single reagent |
Approximately 240 tests/hour |
| Throughput with ISE |
Up to approximately 300 tests/hour |
| Sample dilution |
2–40 times |
| R1 reagent volume |
180–350 µL |
| R2 reagent volume |
0 or 10–350 µL |
| Reagent cooling |
8–12°C, Peltier cooling |
| Reaction cuvettes |
60 semi-disposable cuvettes |
| Cuvette washing |
Automatic seven-step washing |
| Water consumption |
Approximately 5–6 L/hour |
| Light source |
Halogen tungsten lamp |
| Wavelength filters |
340, 405, 450, 510, 546, 578, 620, 670, 700 nm |
| Dimensions (W × D × H) |
55 × 42 × 38 cm |
| Approximate weight |
23 kg |
| Power supply |
110/220 V AC, 50/60 Hz |
| Maximum power consumption |
250 W |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
