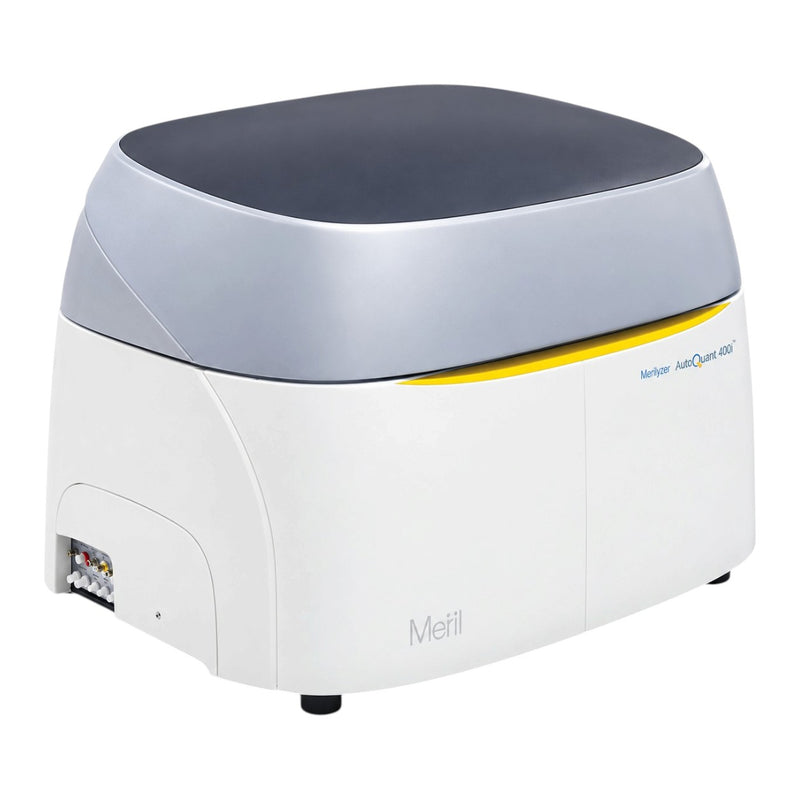

The Meril AutoQuant 400i Supremus with Grating is an automated biochemistry analyzer designed for busy diagnostic laboratories that require high-throughput biochemical testing, efficient reagent handling, and reliable measurement. With a throughput of approximately 400 tests per hour, it supports routine and specialized laboratory testing workflows.
With multiple calibration modes, automated liquid handling, reaction-curve storage, and Windows-based software, the Meril AutoQuant 400i is suited to laboratories looking for an automated chemistry analyzer for high-volume biochemical testing.
Key Highlights of Meril AutoQuant 400i
-
High throughput: Processes approximately 400 tests per hour.
-
Grating-based detection: Uses a grating optical system for measurement.
-
Automated liquid handling: Features two reagent probes and one sample probe, with a stepper-motor-driven pipetting system.
-

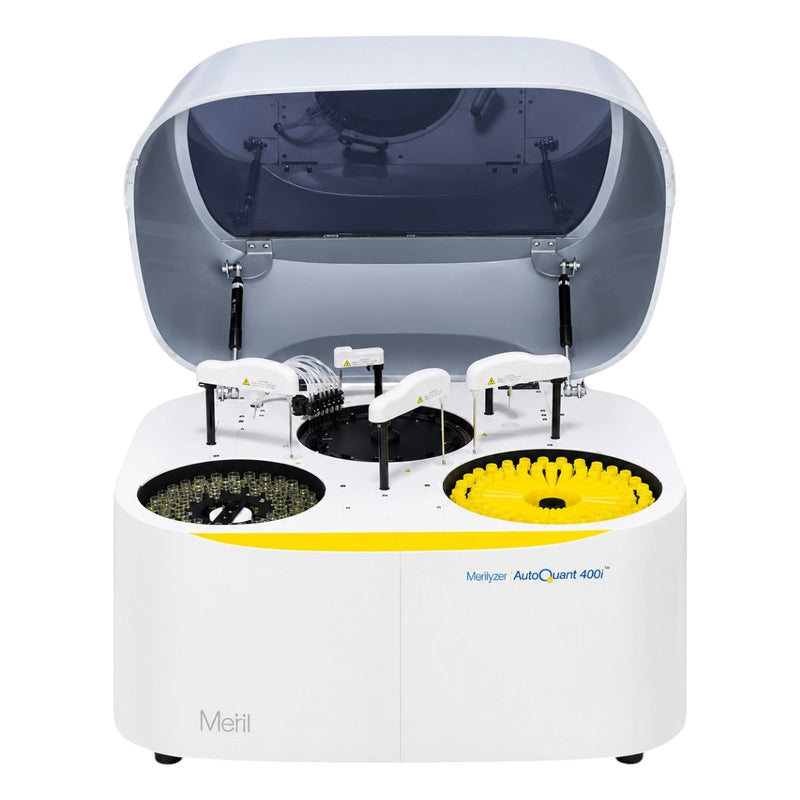

Flexible sample loading: Offers 75 sample positions with barcode identification.
-
Refrigerated reagent storage: Provides 60 refrigerated reagent positions for R1 and R2.
-
Practical reagent capacity: Supports 70 ml R1 and 20 ml R2 bottles.
-
Low reagent dead volume: 2 ml for R1 and 0.5 ml for R2.
-
Multiple calibration options: Supports K-factor, linear, logit-log, spline, exponential, and polynomial calibration modes.
-
Automatic washing: Includes a seven-step washing system and three wash options for forbidden pairs.
-
Data storage: Stores up to 1,000,000 test results and 40,000 reaction curves.
-
Closed-system reagents: Product information specifies reagents with calibrators and controls.
-
Laboratory workflow support: Designed for routine and specialized biochemical testing.
Technical Specifications
| Specification |
Details |
| Product name |
Meril AutoQuant 400i Supremus with Grating |
| Product type |
Automated biochemistry analyzer |
| Throughput |
Approximately 400 tests/hour |
| Sample positions |
75 |
| Sample identification |
Barcode identification |
| Reagent positions |
60 refrigerated positions for R1 and R2 |
| R1 reagent bottle capacity |
70 ml |
| R2 reagent bottle capacity |
20 ml |
| R1 dead volume |
2 ml |
| R2 dead volume |
0.5 ml |
| Optical system |
Grating-based detection system |
| Optical filters |
9 static filters |
| Filter wavelengths |
340, 405, 450, 510, 546, 578, 620, 670, 700 nm |
| Light source |
Halogen-tungsten lamp |
| Reagent probes |
2 (R1 and R2) |
| Sample probes |
1 |
| Stirring system |
2 stirrers |
| Washing system |
7-step automatic washing |
| Forbidden-pair washing |
3 wash options |
| Water consumption |
6β8 L/hour |
| Calibration modes |
K-factor; linear (1-point, 2-point, multipoint); logit-log; spline; exponential; polynomial (2ndβ4th order) |
| Data storage |
1,000,000 test results |
| Reaction-curve storage |
40,000 reaction curves |
| Operating system |
Windows-based |
| Power supply |
110/220 V (as specified) |
| Dimensions |
Approximately 77 Γ 64 Γ 60 cm |
| Weight |
Approximately 75 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
