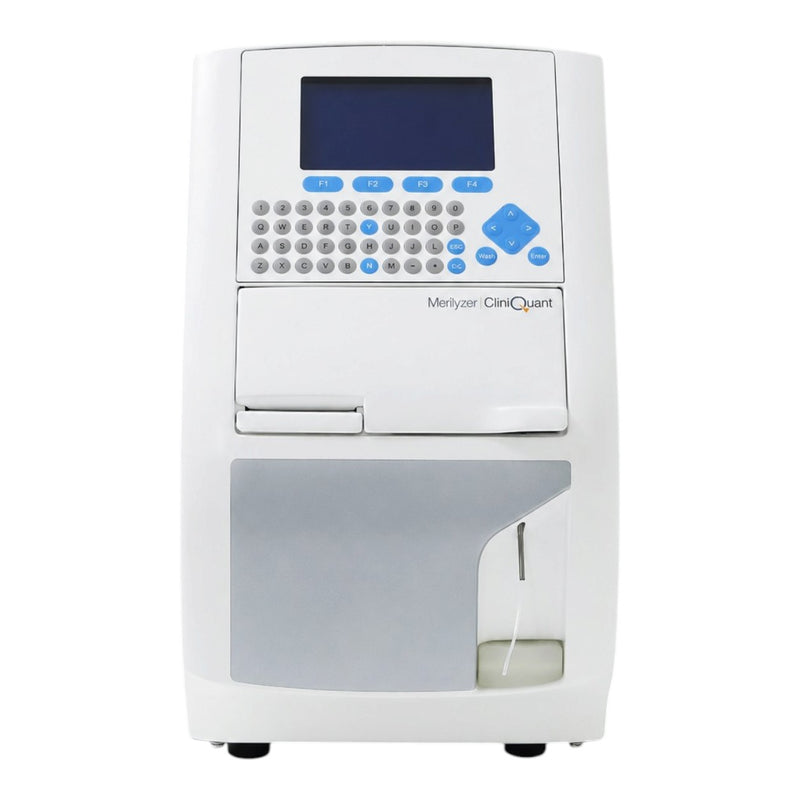

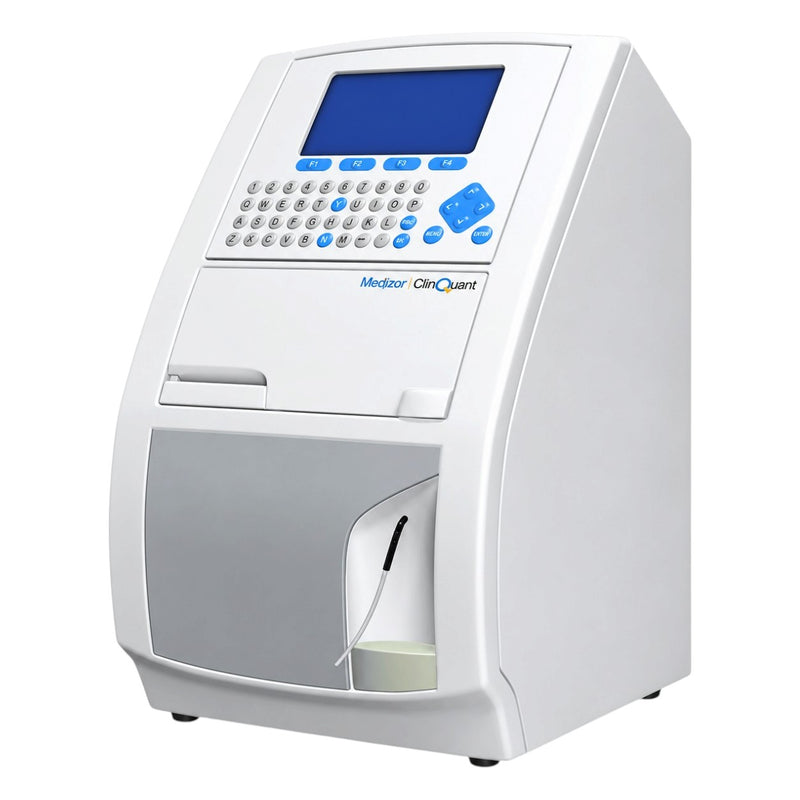

The Meril CliniQuant Semi-Automatic Biochemistry Analyzer is a compact clinical chemistry analyzer designed for routine and specialized biochemical testing in diagnostic laboratories. It supports testing of serum, plasma, urine, body fluids, and hemolysate samples, using a range of assay modes and monochromatic or bichromatic measurement methods.
The Meril CliniQuant features a quartz flow cell, a quartz halogen light source, and seven predefined wavelength filters with one free filter position. Its Peltier temperature control offers settings of 25°C, 30°C, and 37°C with a stated accuracy of ±0.1°C.
Designed for practical laboratory operation, the analyzer includes a graphical LCD, an inbuilt thermal printer, onboard result storage, and three-level quality control with Levey-Jennings graph display. RS232 PC connectivity supports data management, with optional PC software available. Its compact footprint and specified maximum power consumption of 45 W make it an option for laboratories seeking a semi-automatic biochemistry system.
Key Features of Meril CliniQuant
-
Semi-automatic operation: Designed for routine and specialized clinical chemistry assays.
-
Eight assay modes: Includes absorbance, end point, fixed time, rate, sample blank, multi-standard, two-point nonlinear, and sample-blank nonlinear modes.
-
Temperature-controlled incubation: Peltier control at 25°C, 30°C, and 37°C, with stated accuracy of ±0.1°C.
-
Quartz halogen lamp: 6 V, 10 W light source with an approximate lifespan of 2,000 hours.
-
Multi-wavelength optical system: Seven filters at 340, 405, 505, 546, 578, 620, and 670 nm, plus one free position.
-
Monochromatic and bichromatic measurements: Supports both listed measurement methods.
-
Quartz flow cell: Specified flow-cell volume of 32 µL.
-
Built-in thermal printer: Inbuilt 384-dot thermal printer for result printing.
-
Graphical LCD display: 240 × 128 pixel blue graphical LCD with LED backlight.
-
PC connectivity: 9-pin D-type serial connector for PC communication; optional PC software.
-
Result storage: Stores up to 25,600 test data entries, with three-month QC data storage as specified.
-
Three-level quality control: Daily and monthly QC with Levey-Jennings graph display.
-
Recalculation function: Recal function for kinetic assays involving hyperactive samples, as described in the supplied information.
-
Compact benchtop design: Measures 25 × 29 × 41.5 cm and weighs approximately 11 kg.
Technical Specifications
| Specification |
Details |
| Brand |
Meril |
| Model |
CliniQuant |
| Analyzer type |
Semi-automatic biochemistry analyzer |
| Assay modes |
8 |
| Assay modes supported |
Absorbance, end point, fixed time, rate, sample blank, multi-standard, two-point nonlinear, sample-blank nonlinear |
| Sample types |
Serum, urine, plasma, body fluids, hemolysate |
| Light source |
Quartz halogen lamp, 6 V, 10 W |
| Approximate lamp lifespan |
2,000 hours |
| Measurement method |
Monochromatic and bichromatic |
| Photodetector |
Silicon photodiode |
| Wavelength filters |
340, 405, 505, 546, 578, 620, 670 nm |
| Additional filter position |
1 free position |
| Absorbance range |
0–3 Abs |
| Resolution |
0.0001 |
| Delay/incubation time |
3–999 seconds |
| Rate and fixed-time read time |
30–999 seconds |
| Display |
240 × 128 pixel blue graphical LCD with LED backlight |
| Printer |
Inbuilt 384-dot thermal printer |
| PC communication |
9-pin D-type serial connector |
| PC software |
Optional |
| Memory |
FLASH |
| Test data storage |
25,600 entries |
| QC data storage |
3 months, |
| Result reports |
Collated by ID, date, and test |
| Quality control |
Daily and monthly QC for 3 levels with Levey-Jennings graph |
| Aspiration volume |
200–1,500 µL |
| Air aspiration volume |
Variable |
| Temperature control |
25°C, 30°C, 37°C ±0.1°C |
| Temperature control method |
Peltier |
| Operating voltage |
230 V, 50 Hz |
| Maximum power consumption |
45 W |
| Dimensions (W × D × H) |
25 × 29 × 41.5 cm |
| Approximate weight |
11 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
