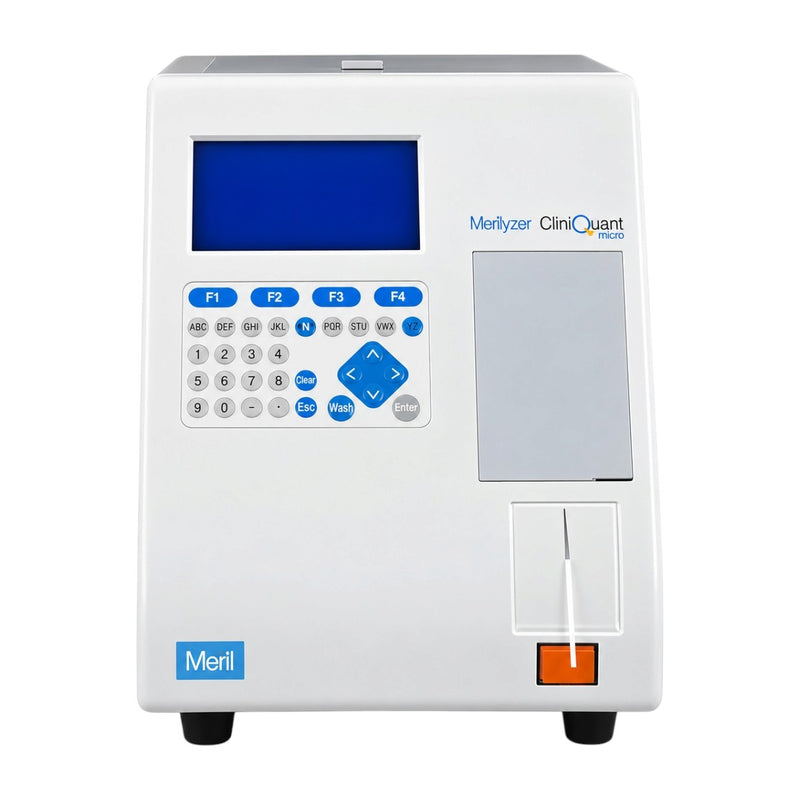

The Meril Merilyzer CliniQuant Micro Semi Automatic Biochemistry Analyzer is a compact, vertical laboratory instrument designed for routine and specialized clinical chemistry testing. Suitable for small to medium-sized diagnostic laboratories, it supports a broad range of biochemical assays with flexible testing modes, low sample and reagent requirements, and sensitive absorbance measurement.
With a reaction volume of approximately 350 µL and adjustable air-gap aspiration to reduce carry-over, the analyzer is designed for laboratories seeking a compact and versatile semi-automated clinical chemistry solution.
Key Features of Merilyzer CliniQuant Micro
-
Semi-automated biochemistry analyzer: Designed for routine and specialized clinical chemistry testing.
-
Eight assay modes: Supports absorbance, end-point, fixed-time, rate/kinetic, sample blank, multi-standard, and non-linear testing methods.
-
High-resolution measurement: Resolution of 0.0001 absorbance units.
-
Temperature control: Selectable 25°C, 30°C, and 37°C settings with ±0.1°C accuracy using Peltier control.
-
Graphical LCD display: 240 × 128 pixel blue display with LED backlight.
-
Inbuilt printer: Supports convenient laboratory reporting.
-
Onboard data storage: Stores up to 25,600 test results and three months of QC data.
-
PC connectivity: 9-pin D-type serial connector with optional PC software.
-
Compact footprint: Measures 24.5 × 27.3 × 29.9 cm and weighs approximately 10 kg.
Test Menu and Applications
The Meril Merilyzer CliniQuant Micro supports a broad range of clinical chemistry investigations, depending on the selected assay and reagent kit.
| Test Category |
Parameters |
| Proteins |
Albumin, Total Protein |
| Liver Function Tests |
Total Bilirubin, Direct Bilirubin, SGPT/ALT, SGOT/AST, ALP, GGT |
| Renal Function Tests |
Urea, Creatinine |
| Lipid Profile |
Cholesterol, Triglycerides, HDL, LDL |
| Enzymes |
LDH, CK, Amylase |
| Glucose Testing |
Glucose |
| Uric Acid |
Uric Acid |
| Electrolytes and Minerals |
Calcium, Phosphorus, Magnesium |
| Other Biochemical Tests |
Other routine biochemical parameters as required |
Technical Specifications
| Specification |
Details |
| Product Name |
Merilyzer CliniQuant Micro |
| Manufacturer Brand |
Meril |
| Analyzer Type |
Semi-automatic biochemistry analyzer |
| Assay Modes |
8 modes |
| Sample Types |
Serum, Urine, Plasma, Body Fluids, Hemolysate |
| Light Source |
6 V, 10 W quartz halogen lamp |
| Approximate Lamp Life |
2,000 hours |
| Detector |
Silicon photodiode |
| Wavelength Filters |
340, 405, 505, 546, 578, 620 nm |
| Display |
240 × 128 pixel blue graphical LCD with LED backlight |
| Test Data Storage |
25,600 test results |
| QC Data Storage |
3 months |
| Quality Control |
Daily and monthly, 3 levels, with LJ graph |
| Air Aspiration Volume |
Variable, 0–50 µL |
| Cross-Contamination |
Less than 1% |
| PC Communication |
9-pin D-type serial connector |
| PC Software |
Optional |
| Memory |
FLASH |
| Temperature Settings |
25°C, 30°C, 37°C |
| Temperature Control |
Peltier |
| Operating Voltage |
230 V AC, 50 Hz |
| Maximum Power Consumption |
45 W |
| Dimensions (W × D × H) |
24.5 × 27.3 × 29.9 cm |
| Weight |
10 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
