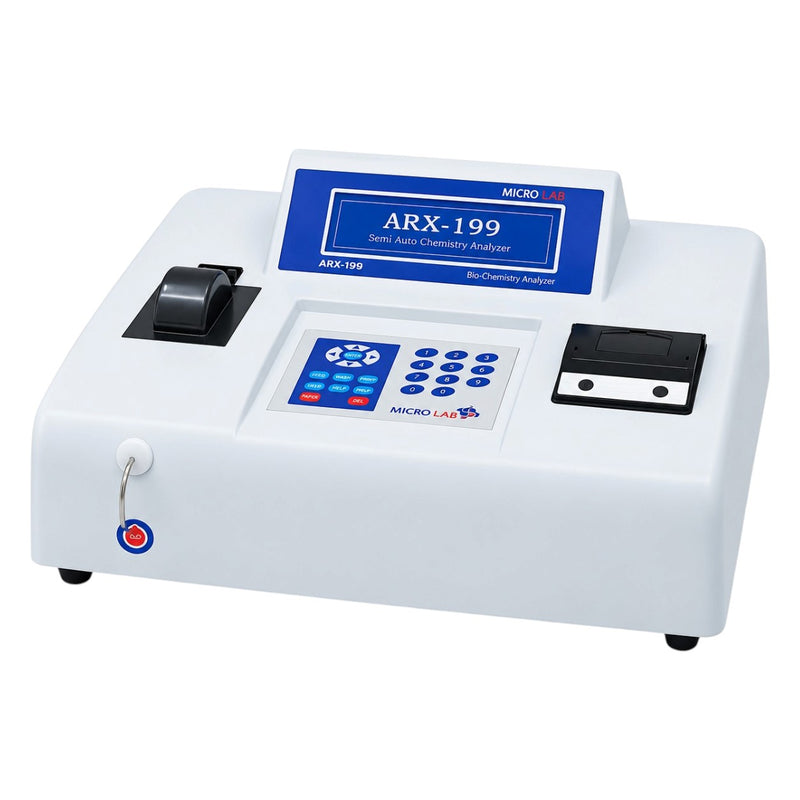

The Microlab ARX 199 Biochemistry Analyzer is a semi-automatic clinical chemistry analyzer designed for hospitals, diagnostic laboratories, and clinical testing facilities. It uses absorption photometry to measure biochemical parameters and supports multiple assay methods, including absorbance, end-point, kinetic, fixed-time, and differential analysis.
Featuring a blue-backlit LCD display, user-friendly software, a built-in thermal graphic printer, and memory for up to 1,000 test results with patient identification, the Microlab ARX 199 supports routine laboratory workflows. Its Peltier-controlled incubator, dual measurement system, and quality control memory provide additional functionality for clinical chemistry testing.
Key Features of Microlab ARX 199
-
Semi-Automatic Operation: Designed for biochemical testing in clinical laboratories and hospitals.
-
Absorption Photometry: Supports photometric measurement of biochemical parameters.
-
Multiple Assay Methods: ABS, end-point, kinetic, fixed-time, and differential methods.
-
Blue-Backlit LCD Display: 240 × 64-pixel display for viewing test information.
-
Patient Data Management: Allows entry and editing of patient ID, patient name, and test factors.
-
Real-Time Kinetic Graphs: Displays kinetic test graphs and supports graph editing.
-
Result Storage: Stores up to 1,000 test results with patient identification.
-
Lamp Saver Mode: Helps extend halogen lamp life.
-
Built-In Thermal Printer: 57 mm print width and 50 mm/sec printing speed.
-
Quality Control Memory: Stores the last 30 QC results.
-
Wide Voltage Input: Supports the specified 90–265 V input range for operation across varying supply voltages.
-
Compact Design: Measures approximately 40 × 32 × 16 cm.
Technical Specifications
| Specification |
Details |
| Product Name |
Microlab ARX 199 Biochemistry Analyzer |
| Brand |
Microlab |
| Model |
ARX 199 |
| Analyzer Type |
Semi-automatic biochemistry analyzer |
| Measurement Principle |
Absorption photometry |
| Assay Methods |
ABS, End Point, Kinetic, Fixed Time, Differential |
| Wavelength Filters |
340, 405, 505, 546, 578, 630, 670 nm |
| Additional Filter Position |
1 extra slot |
| Light Source |
6 V/10 W halogen lamp |
| Detector |
Silicon photodiode |
| Display |
Blue-backlit LCD, 240 × 64 pixels |
| Temperature Control |
Peltier-controlled |
| Temperature Settings |
25°C, 30°C, 37°C |
| Cuvette Options |
Removable macro, semi-micro, and micro cuvettes |
| Test Result Memory |
Up to 1,000 results with patient identification |
| QC Memory |
Last 30 QC results |
| Printer |
Built-in thermal graphic printer |
| Printer Width |
57 mm |
| Printing Speed |
50 mm/sec |
| Input Voltage |
90–265 V (feature specification); 110–220 V (listed electrical specification) |
| Frequency |
50–60 Hz |
| Maximum Power Consumption |
80 W |
| Ambient Temperature |
10–40°C |
| Dimensions |
40 × 32 × 16 cm |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
