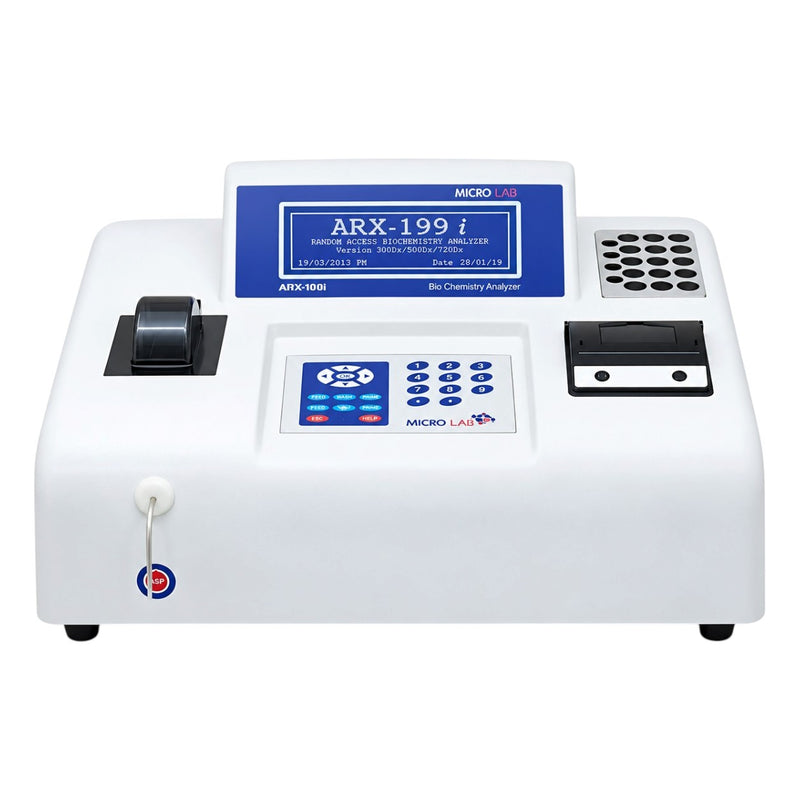

Microlab ARX 199i Semi-Automatic Clinical Chemistry Analyzer

The Microlab ARX 199i Semi-Automatic Clinical Chemistry Analyzer is a semi-automatic biochemistry analyzer designed for clinical laboratories, hospitals, and diagnostic centers. It uses absorption photometry to measure biochemical parameters such as enzymes, proteins, and metabolites in blood and other body fluids. Its user-friendly operation, compact design, and reliable performance make it suitable for small to medium-sized diagnostic setups.

The Microlab ARX 199i features a clear 240 × 64 pixel LCD with blue LED backlight, multiple assay methods, and a dual measurement system supporting an 18 µL flow cell and removable cuvettes in macro, semi-micro, and micro modes. It supports ABS, End Point, Kinetic, Fixed Time, and Differential methods, with real-time graphical display and graph editing for kinetic tests.

The analyzer stores up to 1,000 test results with patient identification and retains the last 30 quality control results. Its built-in Peltier-controlled incubator offers temperature settings of 25°C, 30°C, and 37°C with ±0.2°C accuracy. Optical filters cover wavelengths of 340, 405, 505, 546, 578, 630, and 670 nm, with one additional filter slot.

Key Features

• Semi-automatic clinical chemistry and biochemistry analyzer

• Absorption photometry measurement principle

• 240 × 64 pixel LCD with blue LED backlight

• User-friendly software for patient ID, patient name, and factor entry and editing

• Real-time graphical display and graph editing for kinetic tests

• Memory for up to 1,000 test results with patient identification

• Quality control memory for the last 30 QC results

• Lamp saver mode to extend halogen lamp life

• Printer paper width of 57 mm and printing speed of 50 mm/sec

• ABS, End Point, Kinetic, Fixed Time, and Differential assay methods

• Peltier-controlled incubator with 25°C, 30°C, and 37°C settings

• Optical filters at 340, 405, 505, 546, 578, 630, and 670 nm, plus one extra slot

• Dual measurement system with 18 µL flow cell and removable cuvettes

• Macro, semi-micro, and micro cuvette modes

• Compact and durable design

• Wide input voltage range for laboratory use

Hospital and Laboratory Benefits

• Supports biochemical testing for a range of parameters.

• Suitable for small to medium hospitals and diagnostic centers.

• Compact footprint helps save laboratory bench space.

• Wide input voltage range supports operation in areas with unstable power supply.

• Semi-automatic operation offers a cost-effective alternative to fully automatic analyzers.

• Storage for 1,000 test results supports patient result management.

• Quality control storage supports result traceability.

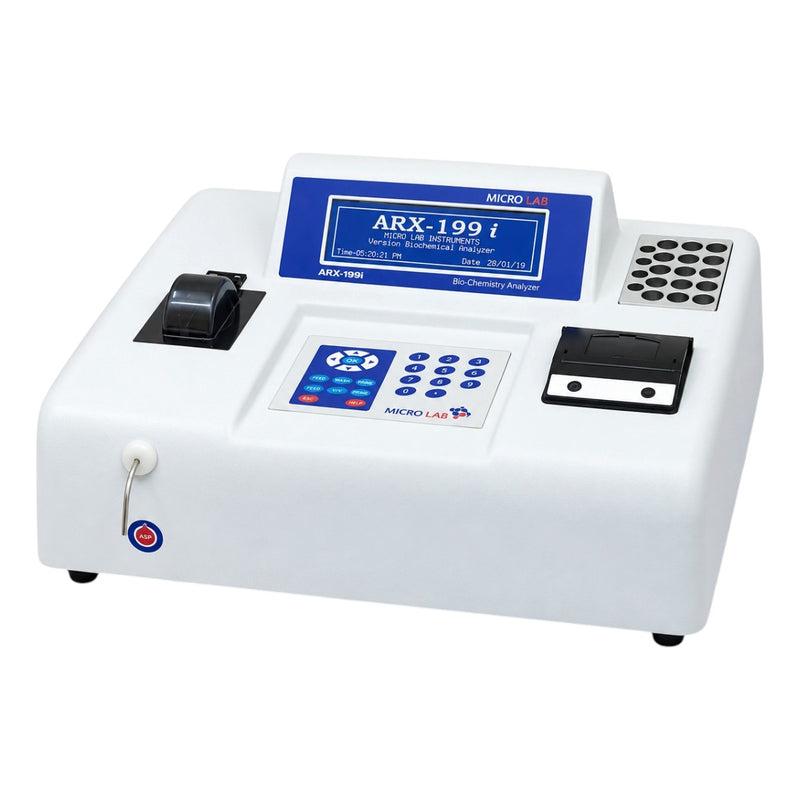

Technical Specifications

Product Disclaimer

Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
