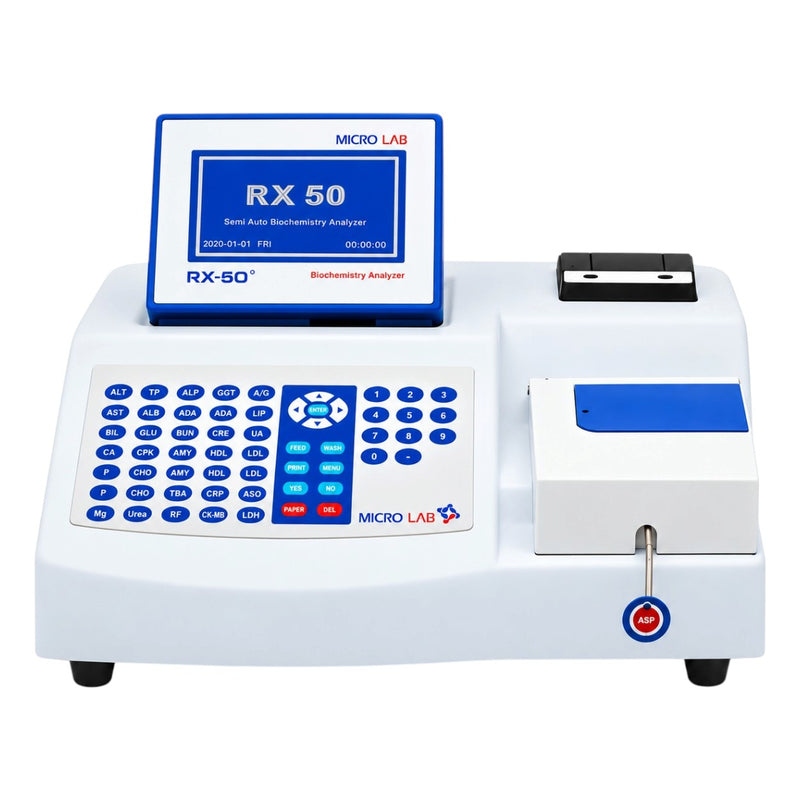

The Microlab RX 50 Biochemistry Analyser is a semi-automatic clinical chemistry analyzer designed for small- to medium-sized laboratories, hospitals, and clinics. It supports biochemical and coagulation testing using multiple assay methods, including absorbance, end-point, kinetic, fixed-time, and differential modes.
The Microlab RX 50 features an eight-filter optical system, a quartz halogen lamp, Schottky-type silicon photodiode detector, and Peltier-regulated temperature control. Its compact design, backlit LCD, built-in thermal graphic printer, and USB and RS232 interfaces support convenient laboratory operation and result management.
Key Features of Microlab RX 50
-
Semi-automatic biochemistry analyzer for clinical laboratories
-
Compatible with serum, plasma, urine, CSF, whole blood, and hemolysate samples
-
Eight-filter wavelength system from 340 to 670 nm
-
Quartz halogen lamp rated at 12 V/20 W, with an approximate 2,000-hour life
-
Peltier temperature control at 25°C, 30°C, and 37°C
-
Storage for 1,000–2,000 test results with patient information
-

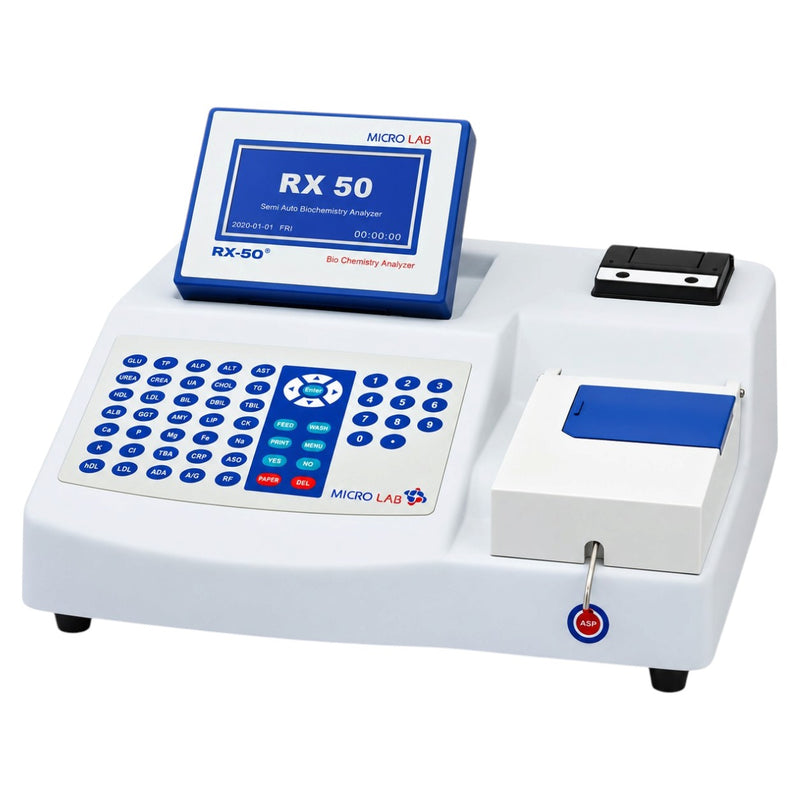

Built-in thermal graphic printer with 57 mm paper width
-
Backlit LCD with 240 × 128 pixel resolution
-
USB keyboard input and data backup via USB drive
-
RS232 port for PC connectivity
-
Compact design measuring 38 × 41 × 15 cm
-
Power consumption below 80 W
Technical Specifications
| Specification |
Details |
| Product Name |
Microlab RX 50 Biochemistry Analyser |
| Brand |
Microlab |
| Model |
RX 50 |
| Operation Type |
Semi-Automatic |
| Assay Methods |
Absorbance, End-Point, Kinetic, Fixed-Time, Differential, Coagulation |
| Sample Types |
Serum, plasma, urine, CSF, whole blood, hemolysate |
| Wavelength Range |
340–670 nm |
| Filter System |
8 filters |
| Light Source |
Quartz Halogen Lamp, 12 V/20 W |
| Lamp Life |
Approximately 2,000 hours |
| Detector |
Schottky-type Silicon Photodiode |
| Temperature Control |
Peltier-regulated |
| Temperature Settings |
25°C, 30°C, 37°C |
| Cuvettes |
Square micro plastic cuvettes or round test tubes, 13 mm |
| Printer |
Thermal graphic printer |
| Printer Paper Width |
57 mm |
| Printer Speed |
50 mm/sec |
| Display |
Backlit LCD, 240 × 128 pixels |
| Interfaces |
RS232, USB keyboard, USB drive data backup |
| Memory Capacity |
1,000–2,000 results |
| Power Consumption |
Less than 80 W |
| Dimensions (W × D × H) |
38 × 41 × 15 cm |
| Weight |
Approximately 6 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
