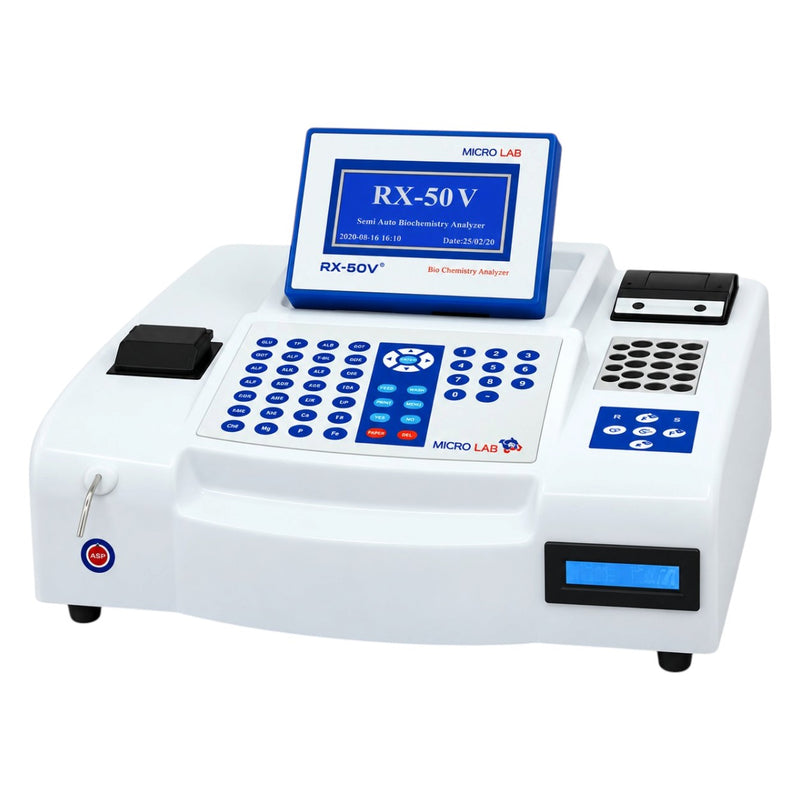

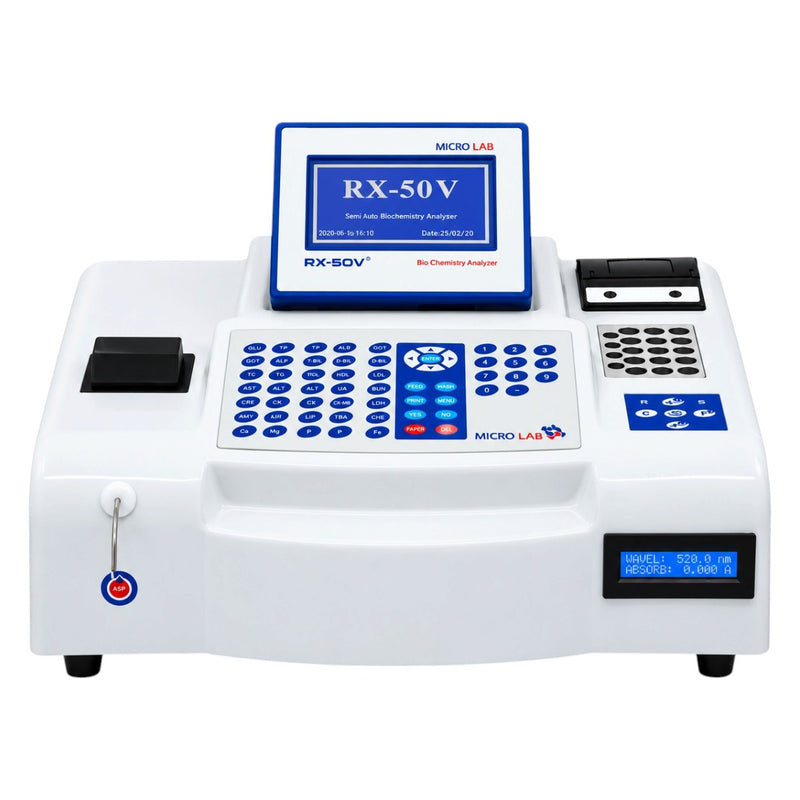

The Microlab RX 50V Biochemistry Analyzer is a compact benchtop clinical chemistry analyzer designed for hospitals, diagnostic laboratories, and clinical testing facilities. It supports a broad range of biochemical investigations using end-point, kinetic, fixed-time, differential, and coagulation assay methods.
With a menu-driven software interface, extensive test programmability, on-screen kinetic graphs, and multiple calibration and sampling modes, the Microlab RX 50V supports routine and specialized laboratory testing. Its compact design, quality control features, and result storage capabilities make it suitable for laboratories seeking a versatile biochemistry analyzer.
Key Features of the Microlab RX 50V
-
Multiple Testing Methods: Supports end-point, kinetic, fixed-time, differential, and coagulation assays.
-
User-Friendly Operation: Menu-driven software interface with on-screen graphing for kinetic tests.
-
Kinetic Graphing: Stores reagent blank absorbance in memory for end-point testing and supports up to 10 graphs in kinetic mode.
-
Triplicate Calibration and Sampling: Provides triplicate calibration and triplicate sampling modes to support precision.
-
35 Direct Test Selection Keys: Enables quick selection of frequently used tests.
-
Multiple Sample Types: Supports serum, plasma, cerebrospinal fluid (CSF), urine, whole blood, and hemolysate.
-
Carry-Over Control: Air purge between samples helps reduce carry-over.
-
Lamp Saver Mode: Helps extend light-source life.
-
Temperature Regulation: Peltier-regulated incubation at 25°C, 30°C, 37°C, or room temperature, with ±0.1°C accuracy.
-
Quality Control: Stores the last 30 QC results and supports Levey-Jennings charts and Westgard rules.
-
Result Management: Stores approximately 1,000 test results with patient IDs.
-
Data Backup: Offers a USB keyboard/data backup option.
-
Compact Benchtop Design: Approximate dimensions of 45 × 41 × 17 cm and weight of 8 kg.
Technical Specifications
| Specification |
Details |
| Product Name |
Microlab RX 50V Biochemistry Analyzer |
| Brand |
Microlab |
| Model |
RX 50V |
| Analyzer Type |
Benchtop clinical chemistry/biochemistry analyzer |
| Measurement Principle |
Absorption spectrometry |
| Testing Methods |
End-point, kinetic, fixed-time, differential, coagulation assays |
| Wavelength Filters |
340, 405, 450, 505, 546, 578, 630, 700 nm |
| Light Source |
Halogen lamp, 12 V/20 W or 6 V/10 W |
| Temperature Regulation |
Peltier regulated |
| Temperature Settings |
25°C, 30°C, 37°C, or room temperature |
| Calibration Mode |
Triplicate calibration |
| Sampling Mode |
Triplicate sampling |
| Kinetic Graphs |
Up to 10 graphs |
| Result Memory |
Approximately 1,000 test results with patient IDs |
| Memory Type |
128 KB EEPROM |
| QC Storage |
Last 30 QC results |
| QC Features |
Levey-Jennings charts and Westgard rules |
| Sample Types |
Serum, plasma, CSF, urine, whole blood, hemolysate |
| Dimensions |
Approximately 45 × 41 × 17 cm |
| Weight |
Approximately 8 kg |
| Voltage |
110–220 V |
| Frequency |
50–60 Hz |
| Maximum Power Consumption |
Less than 110 W |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
