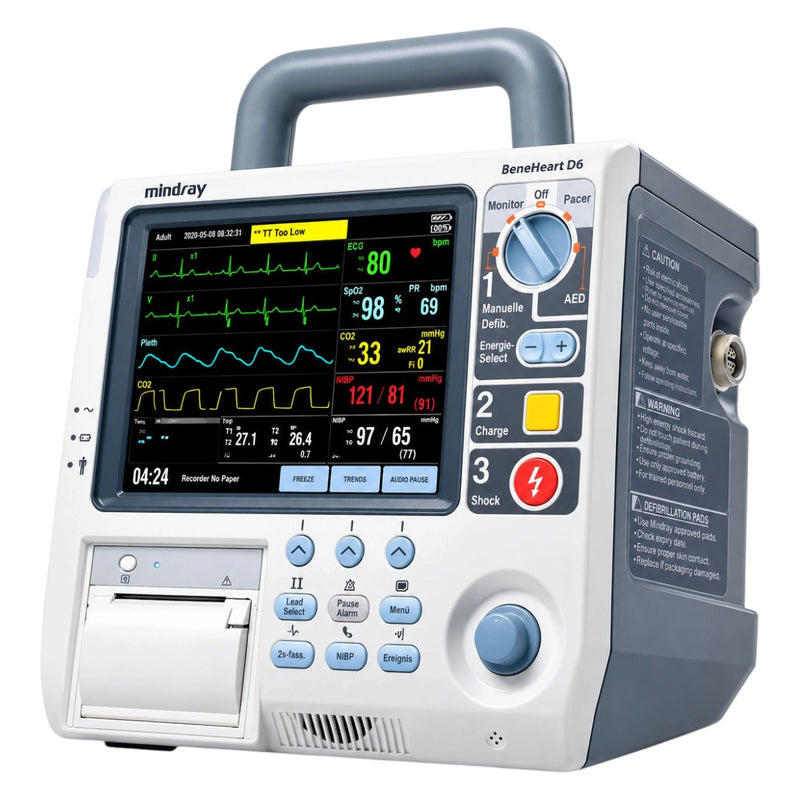

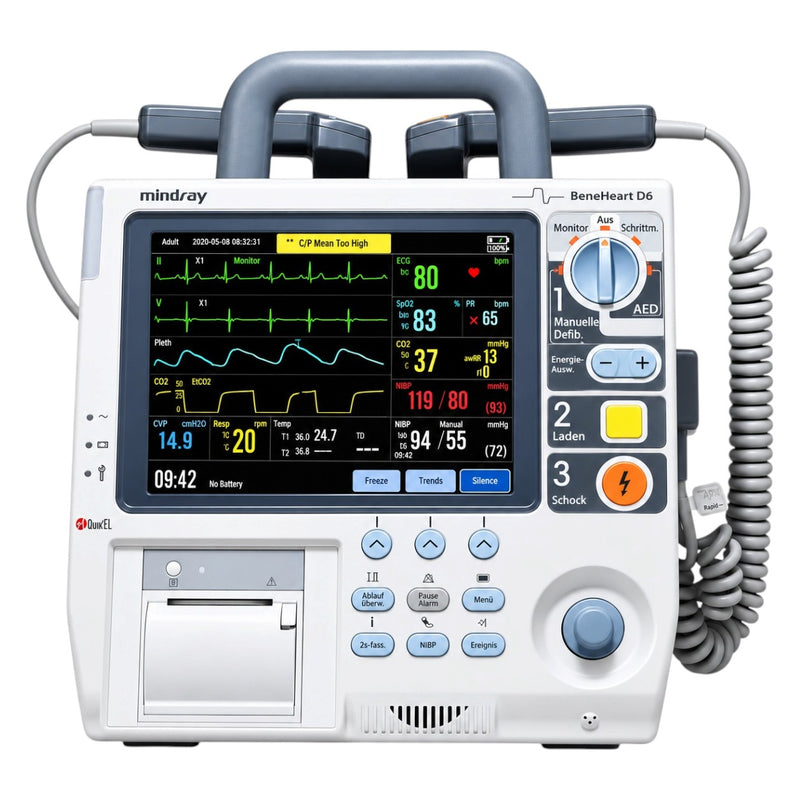

Mindray BeneHeart D6 4-in-1 Biphasic Defibrillator & Patient Monitor

The Mindray BeneHeart D6 is a professional 4-in-1 biphasic defibrillator and patient monitor designed for emergency, hospital, and clinical applications. It combines manual defibrillation, AED, non-invasive pacing, and multi-parameter patient monitoring in a single compact platform.

Key Features

• 4-in-1 emergency life-support platform
• Manual biphasic defibrillation up to 360J
• Synchronized and unsynchronized defibrillation
• Integrated AED mode with automatic rhythm analysis
• Voice and text guidance in AED operation
• Up to 180 minutes of voice recording
• Demand and fixed non-invasive pacing
• Quick 4:1 pacing key for underlying rhythm observation
• Integrated multi-parameter patient monitoring
• 8.4-inch color display
• ECG with respiration and 12-lead ECG reporting options
• Optional SpO₂, NIBP, dual-channel temperature, dual-channel IBP and EtCO₂
• Fast startup and charging
• 200J charging in approximately 3 seconds
• ECG recovery in approximately 2.5 seconds
• Rugged IPX4 water-resistant design
• Wi-Fi connectivity with 2.4G/5G support
• IHE HL7 protocol support
• Up to 72 hours of data/trend storage
• Approximate main-unit weight: 5.5 kg

1. Manual Biphasic Defibrillation

The BeneHeart D6 supports manual defibrillation for professional users, with both:

• Unsynchronized defibrillation for appropriate ventricular fibrillation situations
• Synchronized defibrillation for cardioversion applications such as atrial fibrillation

The device supports escalating biphasic energy up to 360J, providing a broad energy range for professional emergency cardiac care.

2. Automated External Defibrillator (AED)

The integrated AED mode provides automated rhythm analysis and guides the operator through the resuscitation process using:

• Voice prompts
• Text guidance
• Automatic rhythm analysis
• Up to 180 minutes of voice recording

This makes the D6 suitable for emergency response environments where rapid rhythm assessment and defibrillation are required.

3. Non-Invasive Pacing

The BeneHeart D6 incorporates non-invasive pacing for patients requiring temporary electrical cardiac stimulation.

Available pacing functions include:

• Demand pacing
• Fixed pacing
• Adjustable pacing rate and output
• Dedicated 4:1 key for rapid observation of the underlying rhythm

4. Integrated Patient Monitoring

A major advantage of the D6 is that defibrillation and patient monitoring are integrated into the same device, reducing the need for a separate bedside monitor during emergency care.

Monitoring Options

The SpO₂ configuration can use Mindray, Masimo, or Nellcor modules, depending on the selected configuration.

Technical Specifications
