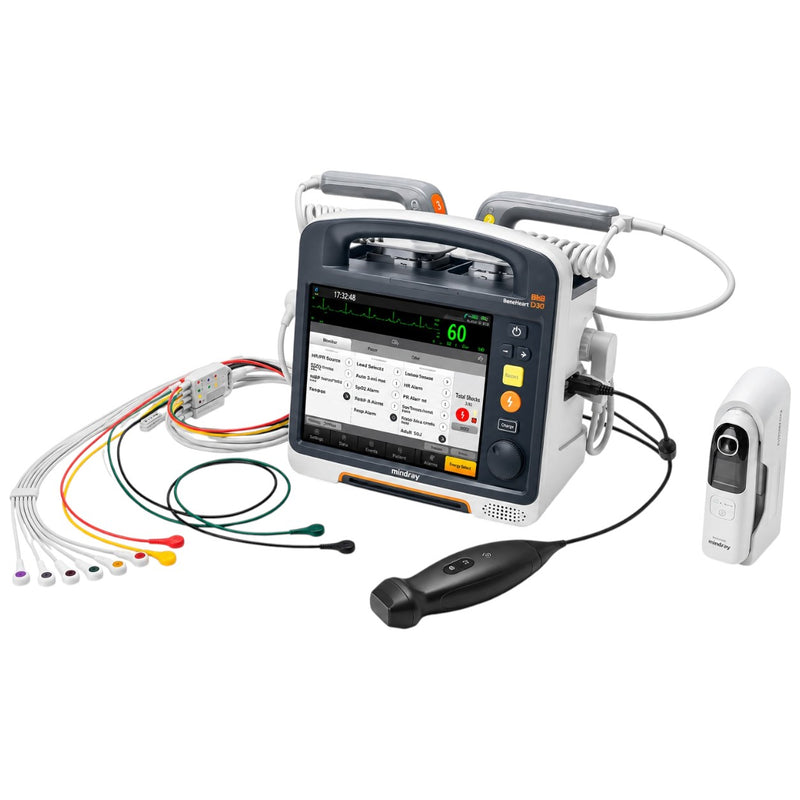

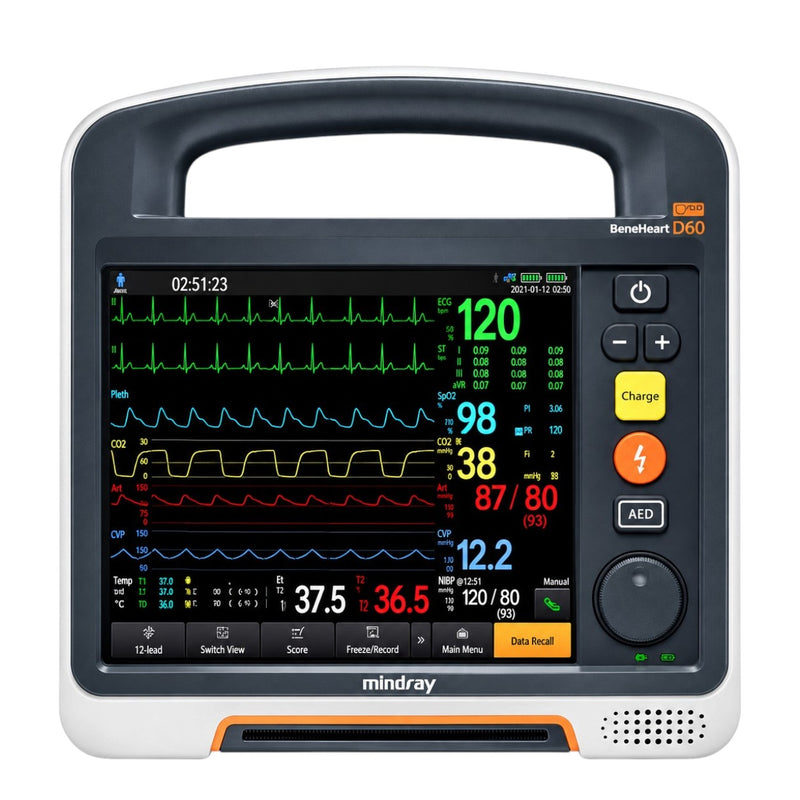

The Mindray BeneHeart D60 is a lightweight, high-end 4-in-1 defibrillator and patient monitor designed for emergency medical services and pre-hospital critical care. Weighing approximately 4.2 kg including the battery, the D60 integrates manual defibrillation, AED, non-invasive pacing, and multi-parameter patient monitoring into a compact platform.
The device combines 360J biphasic defibrillation technology, QShock rapid-shock technology, 12-lead ECG analysis, POCUS support, and advanced wireless connectivity for emergency response and hospital handover.
Key Features
-
4-in-1 emergency defibrillator and patient monitor
-
Manual defibrillation
-
AED functionality
-
Non-invasive pacing
-
Multi-parameter patient monitoring
- 360J biphasic technology – 360 BTe
-
QShock rapid-shock technology
-
9-inch high-resolution capacitive touchscreen
-
1200 × 1020 display resolution
-
Gesture control and automatic brightness
-
Physical knobs and buttons for critical operations
-
12-lead ECG analysis
-
POCUS support
-
ECG, SpO₂, NIBP, CO₂, IBP and TEMP monitoring
-
M-Connect IT connectivity
-
4G and Wi-Fi connectivity
-
Real-time 12-lead ECG and patient-data transmission
-
M-IoT Device Manager for fleet management
-
IP55 water and dust resistance
-
1.5 m six-surface drop protection without carry case
-
Up to 3 m drop protection with carry case
-
Operating temperature from -20°C to +55°C
-
Battery support for up to 200 shocks at 360J or 6 hours continuous monitoring
-
Approximately 4.2 kg including battery
4-in-1 Emergency Care Platform
The BeneHeart D60 combines four major functions in one device:
1. Manual Defibrillation
Provides professional manual defibrillation using 360J biphasic technology for emergency cardiac resuscitation.
2. AED
The AED function supports automated external defibrillation for emergency response scenarios.
3. Non-Invasive Pacing
The D60 integrates non-invasive cardiac pacing, providing an additional emergency intervention capability for appropriately indicated patients.
4. Multi-Parameter Monitoring
The D60 supports comprehensive patient monitoring, including:
360J Biphasic Defibrillation
The BeneHeart D60 incorporates 360 BTe biphasic technology with energy delivery up to 360J.
This high-energy capability is combined with QShock technology, designed to support rapid power-on, charging and shock delivery during time-critical resuscitation.
QShock Technology
QShock is Mindray's rapid-shock technology incorporated into the D60 platform to support fast emergency operation.
For pre-hospital teams, rapid device readiness and shock delivery can be particularly important when managing time-critical cardiac emergencies.
12-Lead ECG & Advanced Assessment
The BeneHeart D60 supports 12-lead ECG analysis, allowing emergency teams to acquire and assess a more comprehensive ECG.
The supplied specifications also identify Point-of-Care Ultrasound (POCUS) support, extending the device's capabilities beyond conventional defibrillation and vital-sign monitoring.
Connectivity & Hospital Data Transmission
The D60 is designed to support connected emergency-care workflows.
M-Connect IT
The device can use M-Connect IT and wireless connectivity to transmit patient information.
4G & Wi-Fi
The D60 supports:
-
4G connectivity
-
Wi-Fi connectivity
-
Real-time 12-lead ECG transmission
-
Patient-data transmission
-
Target-hospital communication
This can help emergency teams transmit relevant patient information ahead of hospital arrival.
M-IoT Device Manager
The D60 also supports M-IoT Device Manager, which is intended for fleet and device management.
Rugged Design for Pre-Hospital Use
The BeneHeart D60 is designed for demanding emergency and transport environments.
Temperature Resistance
Operating temperature range:
-20°C to +55°C
Drop Protection
The supplied specifications state:
-
1.5 m six-surface drop protection without a carry case
-
Up to 3 m drop protection with a carry case
IP55 Protection
The D60 has an IP55 rating for resistance against dust and water ingress.
Defibrillation Cable Durability
The defibrillation cable is described as:
-
Tested for more than 400,000 bends
-
Interfaces withstand more than 100 kg pulling force
These features support the device's intended use in demanding emergency and transport environments.
Lightweight Portable Design
One of the major advantages of the BeneHeart D60 is its low weight.
Weight: approximately 4.2 kg including battery
This lightweight design makes the D60 particularly suitable for:
-
Ambulance teams
-
Emergency medical services
-
Pre-hospital response
-
Critical-care transport
-
Hospital emergency departments
-
Mobile resuscitation teams
Technical Specifications
| Specification |
Details |
| Brand |
Mindray |
| Product |
BeneHeart D60
|
|
Device type
|
4-in-1 Defibrillator & Patient Monitor
|
| Defibrillation |
Manual + AED
|
|
Maximum energy
|
Up to 360J
|
|
Waveform technology
|
360 BTe biphasic
|
|
Rapid-shock technology
|
QShock |
| Pacing |
Non-invasive pacing
|
| ECG |
ECG + 12-lead ECG analysis
|
| SpO₂ |
Supported |
| NIBP |
Supported |
| CO₂ |
Supported |
| IBP |
Supported |
| TEMP |
Supported |
| POCUS |
Supported |
| Display |
9-inch capacitive full-touch screen
|
| Resolution |
1200 × 1020
|
|
Touch control
|
Capacitive touchscreen + gesture control
|
|
Physical controls
|
Knobs/buttons
|
| Connectivity |
4G + Wi-Fi
|
|
IT connectivity
|
M-Connect IT
|
|
Fleet management
|
M-IoT Device Manager
|
| Protection |
IP55 |
|
Drop protection
|
1.5 m six-surface / 3 m with case
|
|
Operating temperature
|
-20°C to +55°C
|
| Weight |
Approx. 4.2 kg including battery
|
|
Battery performance
|
Up to 200 × 360J shocks
|
|
Monitoring runtime
|
Up to 6 hours
|
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
