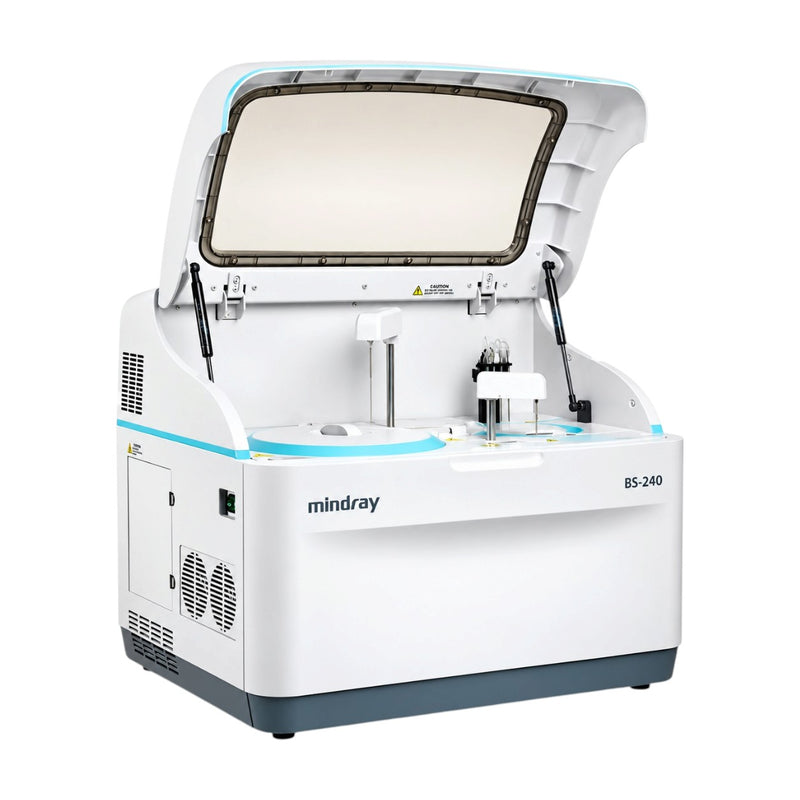

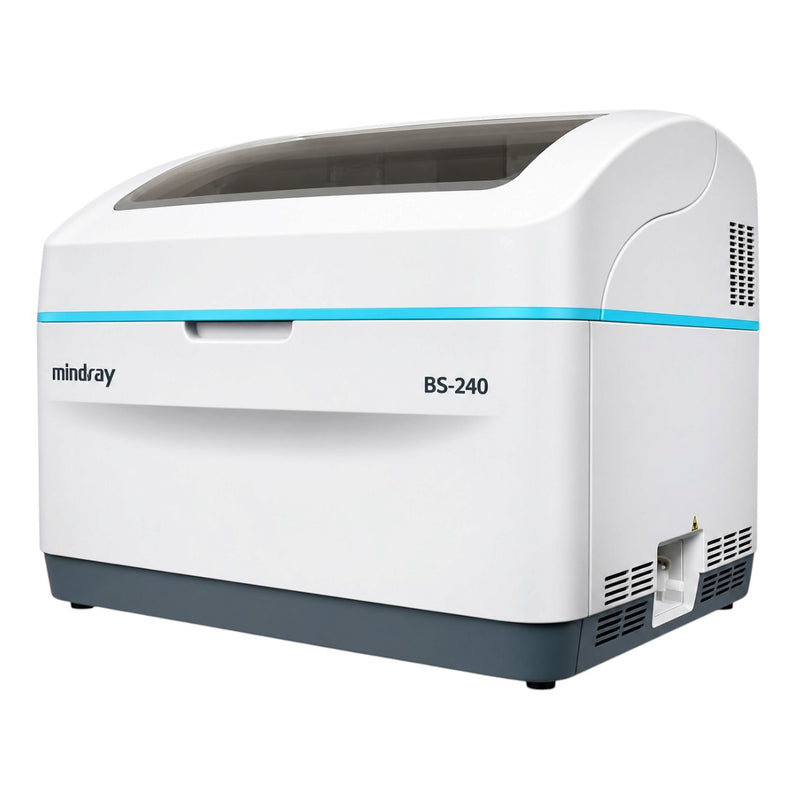

The Mindray BS-240 is a fully automatic clinical chemistry analyzer featuring discrete, random-access testing and a throughput of up to 200 tests per hour, or up to 400 tests per hour with ISE. It is designed to support clinical laboratory workflows with flexible sample and reagent loading, low reaction volumes, automatic sample dilution, and integrated quality-focused features.

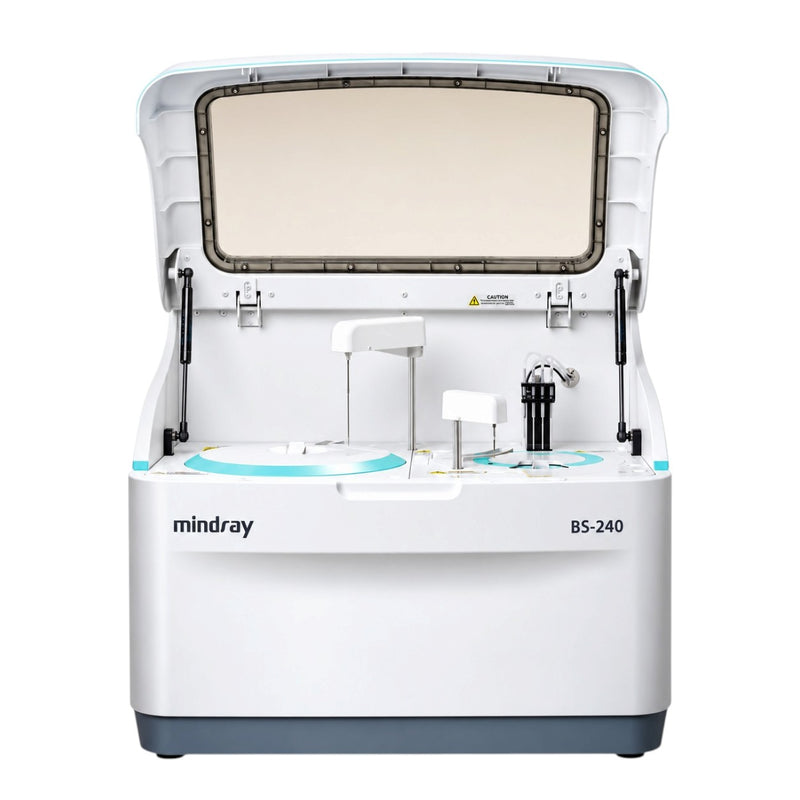

The Mindray BS-240 biochemistry analyzer includes a refrigerated reagent compartment, an upgraded auto-washing system, a built-in barcode reader, and an intelligent software interface. Its smart-sampling technology enables automatic hemolysate preparation for HbA1c testing without pretreatment.
Key Features of Mindray BS-240
-
Fully automatic clinical chemistry analyzer with random-access testing
-
Throughput of up to 200 tests/hour and up to 400 tests/hour with ISE
-
Upgraded auto-washing system designed for low carry-over and low water consumption
-
Smart-sampling technology for automatic hemolysate preparation for HbA1c testing without pretreatment
-
Built-in barcode reader and user-friendly software interface
-
Refrigerated reagent compartment maintained at 2–12°C
-
Multiple calibration methods, including linear, 4P, 5P, spline, exponential, polynomial, and parabola
Technical Specifications
| Specification |
Details |
| Product Name |
Mindray BS-240 |
| Analyzer Type |
Fully Automatic Clinical Chemistry Analyzer |
| System |
Automatic, discrete, random access, bench-top |
| Throughput |
Up to 200 tests/hour; up to 400 tests/hour with ISE |
| Reagent Positions |
Up to 80: 40 fixed + 40 interchangeable |
| Refrigerated Reagent Compartment |
2–12°C |
| Sample Volume |
2–45 µL |
| Reagent Volume |
10–250 µL |
| Carry-over |
Less than 0.05% |
| Automatic Sample Dilution |
Pre-dilution and post-dilution |
| Reaction Temperature |
37°C ±0.1°C |
| Cuvettes |
40 reusable cuvettes |
| Wavelengths |
340, 405, 450, 510, 546, 578, 630, and 670 nm |
| Absorbance Range |
0–4.0 Abs |
| Calibration Methods |
Linear, 4P, 5P, spline, exponential, polynomial, and parabola |
| Barcode Reader |
Built-in |
| Auto-Washing System |
Upgraded system designed for low carry-over and low water consumption |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
