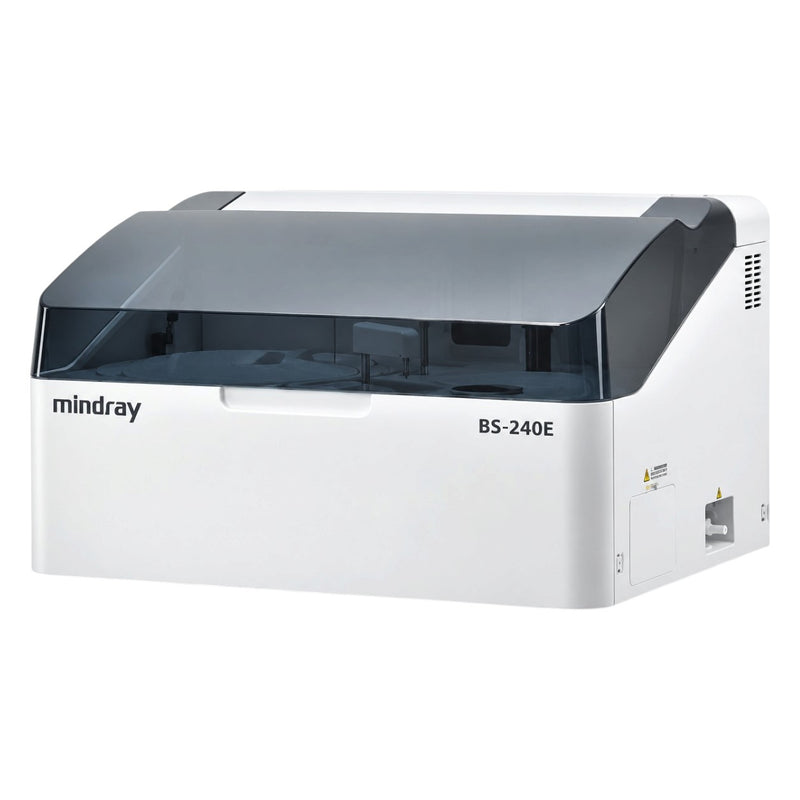

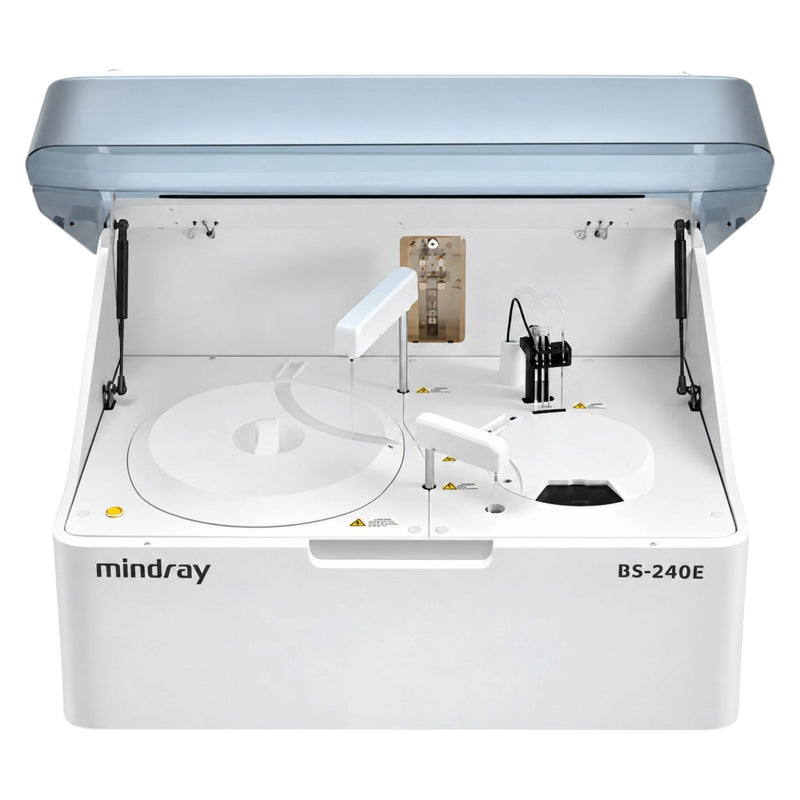

The Mindray BS-240E Fully Automatic Biochemistry Analyzer is a fully automatic clinical chemistry analyzer offering a constant throughput of 240 photometric tests per hour for routine laboratory testing. It features a compact, space-saving bench-top design, supports open and closed reagent systems, and includes reusable cuvettes with automatic washing. The analyzer also features a built-in barcode reader for reagent and sample identification, an optional ISE module for electrolyte analysis, and a user-friendly interface with Windows-based software.
Key Features
-
Fully automatic clinical chemistry analyzer
-
Throughput of 240 photometric tests/hour
-
Throughput of 400 tests/hour with ISE
-
Compact, space-saving bench-top design
-
Supports open and closed reagent systems
-
Reusable cuvettes with automatic washing
-
Built-in barcode reader for reagent and sample identification
-
Optional ISE module for electrolyte analysis
-
User-friendly interface with Windows-based software
-
Refrigerated reagent tray with 100 positions at 2–12 °C
-
Automatic pre-dilution and post-dilution
-
Quality control with Westgard multi-rule, Levey-Jennings, cumulative sum, and twin plot
Test Menu
-
Liver function tests: ALT, AST, ALP, bilirubin
-
Kidney function tests: Urea, creatinine, uric acid
-
Lipid profile: Cholesterol, triglycerides, HDL, LDL
-
Glucose and diabetes panel: Glucose, HbA1c, fructosamine
-
Electrolytes: Na⁺, K⁺, Cl⁻ with optional ISE module
-
Proteins and enzymes: Amylase, lipase, LDH, CK
-
Minerals: Calcium, phosphorus, magnesium
-
Specific proteins and immunoturbidimetric assays: CRP, RF, IgA, IgG, IgM
Technical Specifications
| Specification |
Details |
| Model |
Mindray BS-240E |
| Analyzer Type |
Fully automatic clinical chemistry analyzer |
| Throughput |
240 photometric tests/hour; 400 tests/hour with ISE |
| Reaction Volume |
100–360 µL |
| Reagent Tray |
100 refrigerated positions, 2–12 °C |
| Reaction Cuvettes |
80 reusable cuvettes |
| Wavelengths |
340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740, 800 nm |
| Automatic Dilution |
Pre-dilution and post-dilution |
| Calibration |
K-factor, linear, multipoint, 4P, 5P, spline, exponential, polynomial, parabola, 3P, and broken line |
| Quality Control |
Westgard multi-rule, Levey-Jennings, cumulative sum, and twin plot |
| Reagent System |
Open and closed reagent systems |
| Barcode Reader |
Built-in for reagent and sample identification |
| ISE Module |
Optional |
