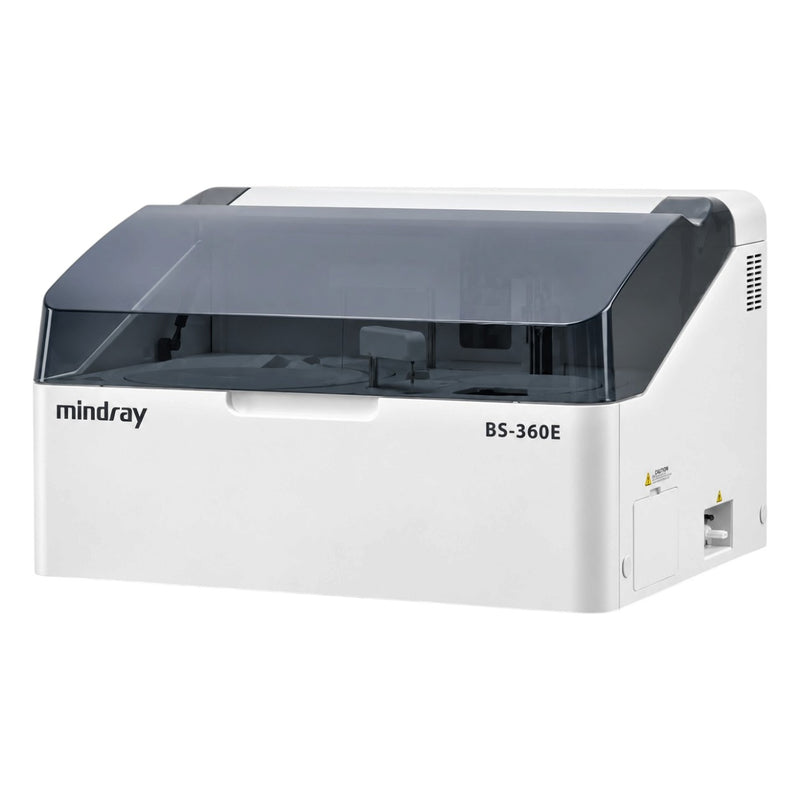

The Mindray BS-360E Fully Automated Chemistry Analyzer is a compact benchtop clinical chemistry analyzer designed for small-to-medium laboratories. It combines high throughput, flexible sample and reagent capacity, user-friendly operation, long uptime, and reliable performance in a space-efficient design.
With up to 100 sample positions and 100 reagent positions, refrigerated sample and reagent storage at 2–12°C, and a minimum reaction volume of 100 µL, the BS-360E is designed for efficient laboratory workflows. Its intelligent probe features liquid-level detection, collision protection, and optional clog detection, while an independent mixing bar supports thorough mixing.
The Mindray BS-360E features 12 wavelengths, 80 reusable cuvettes, STAT sample priority, and quality control tools including Westgard multi-rule, Levey-Jennings, CUSUM, and Twin-plot. An optional barcode reader supports sample and reagent tracking, while its calibration hierarchy is based on ISO standard EN/ISO 17511.
Key Features
-
Fully automatic, discrete, random-access benchtop chemistry analyzer
-
Up to 360 photometric tests per hour
-
Up to 540 tests per hour with the optional ISE module
-
STAT sample priority
-
Absorbance photometry and turbidimetry
-
Optional Ion-Selective Electrode (ISE) module
-
Up to 100 sample positions and 100 reagent positions
-
Refrigerated sample and reagent trays at 2–12°C
-
80 reusable cuvettes
-
HbA1c smart-sampling with onboard hemolysis
-
12 wavelengths from 340 to 800 nm
-
Optional barcode reader for sample and reagent tracking
-
Quality control using Westgard multi-rule, Levey-Jennings, CUSUM, and Twin-plot
-
One-key calibrator import
-
Compact benchtop design
Test Menu
-
Photometric assays (absorbance)
-
Turbidimetric assays
-
Ion-Selective Electrode (ISE) tests with optional module
-
Common biochemistry tests, including liver, kidney, and lipid tests
-
Electrolytes: K⁺, Na⁺, and Cl⁻ with the ISE module
-
HbA1c using smart-sampling and onboard hemolysis
Technical Specifications
| Specification |
Details |
| Product name |
Mindray BS-360E |
| System type |
Automatic, discrete, random-access, benchtop |
| STAT sample priority |
Yes |
| Photometric throughput |
Up to 360 tests/hour |
| Throughput with ISE |
Up to 540 tests/hour |
| Measuring principles |
Absorbance photometry, turbidimetry, optional ISE |
| Methodology |
End-point, fixed-time, kinetic; single/double reagent; mono-/bi-chromatic |
| Reaction volume |
Minimum 100 µL; up to 360 µL |
| Reaction tray |
80 reusable cuvettes |
| Sample tray capacity |
50–100 positions |
| Reagent tray capacity |
50–100 positions |
| Refrigeration |
2–12°C |
| Probe features |
Liquid-level detection, collision protection, optional clog detection |
| Probe cleaning |
Automatic internal and external washing |
| Quality control rules |
Westgard multi-rule, Levey-Jennings, CUSUM, Twin-plot |
| Light source |
Halogen-tungsten lamp |
| Wavelengths |
12 |
| Wavelength values |
340, 380, 412, 450, 505, 546, 570, 605, 660, 700, 740, 800 nm |
| Stray light |
4.9 Abs |
| Interface / operating system |
Windows 10, RS-232 communication |
| Calibration import |
One-key calibrator import |
| Automatic dilution |
Pre-dilution and post-dilution |
| Mixing |
Independent mixing bar |
| Barcode reader |
Optional |
| Supported barcode formats |
Codabar, ITF, Code128, Code39, UPC/EAN, Code93 |
| Power supply |
100–130 V, 60 Hz, ≤1300 VA |
| Alternative power supply |
200–240 V, 50/60 Hz, ≤1300 VA |
| Dimensions (L × W × H) |
86 × 66 × 55 cm |
| Weight |
Approximately 115 kg |
| Water consumption |
≤ 6.5 L/hour |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
