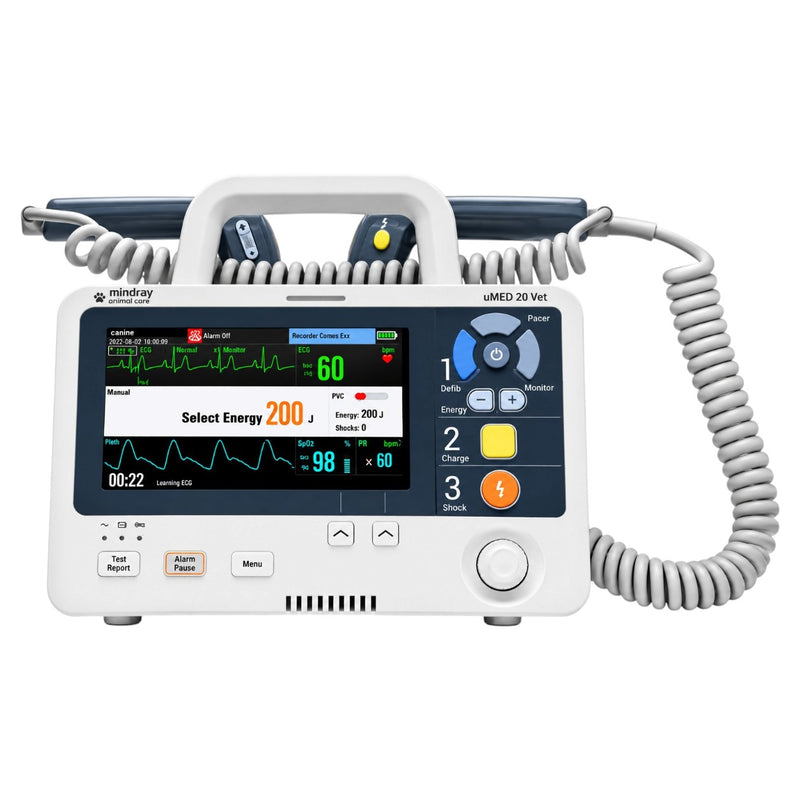

The Mindray uMED 20 Defibrillator / Monitor is a compact, portable emergency care device that combines manual defibrillation, AED, synchronized cardioversion, non-invasive pacing, and real-time ECG monitoring in a single unit.
Designed for emergency and resuscitation applications, the uMED 20 combines up to 360J biphasic defibrillation, intelligent rescue guidance, rapid-response technologies, and rugged construction in a portable approximately 5.3 kg platform.
Key Features
-
Manual defibrillation with simple 1-2-3 operation
-
AED mode with guided rescue workflow
- Synchronized cardioversion
- Non-invasive pacing
-
Up to 360J biphasic energy
- Automatic patient impedance compensation
-
ResQNavi™ intelligent rescue and CPR navigation
-
QShock™ rapid rescue technology
- 7-inch high-resolution color TFT display
-
800 × 480 pixel screen resolution
- Real-time patient-contact quality feedback
- External defibrillation paddles
- IP44 water and dust protection
-
6-surface 0.75 m drop resistance
-
Operating temperature: 0°C to 45°C
- AC power and high-capacity rechargeable battery
- Automatic power-on and power-off self-tests
- Graphical troubleshooting guidance
-
Approx. 5.3 kg weight
AED Mode
The integrated Automated External Defibrillator (AED) mode provides an assisted workflow for emergency resuscitation.
The uMED 20 incorporates ResQNavi™ Technology, which evaluates operator proficiency and provides intelligent step-by-step rescue and CPR navigation.
The guidance can be tailored according to the user's skill level, helping provide appropriate rescue instructions during emergency response.
ResQNavi™ Technology
ResQNavi™ is designed to provide intelligent assistance throughout the rescue process.
Its key functions include:
- Operator proficiency evaluation
- Step-by-step rescue navigation
- CPR navigation
- Tailored guidance for skilled and unskilled users
This technology is intended to help simplify the emergency workflow and provide structured guidance during resuscitation.
QShock™ Technology
The uMED 20 incorporates QShock™ Technology for rapid rescue performance.
The technology focuses on reducing delays during critical stages of the defibrillation workflow, including:
- Rapid power-on
- Fast charge-to-shock operation
- Rapid ECG recovery
The supplied specifications do not provide individual numerical times for these functions.
Biphasic Defibrillation
The Mindray uMED 20 supports:
- Biphasic defibrillation
-
Energy up to 360J
- Automatic impedance compensation
Automatic impedance compensation helps the system adapt the delivered therapy according to patient contact/impedance conditions.
Synchronized Cardioversion
The uMED 20 supports synchronized cardioversion, providing an additional therapeutic mode for appropriately trained clinical professionals managing relevant cardiac arrhythmias.
Non-Invasive Pacing
The device also provides non-invasive pacing, allowing temporary external pacing capability when clinically indicated.
The supplied information does not specify the pacing rate or output ranges, so these values should be confirmed from the exact device configuration/manual.
Patient Contact Monitoring
The uMED 20 provides real-time feedback regarding patient contact quality.
Patient contact information is provided through:
- External defibrillation paddles
- On-screen indicators
This helps the operator assess paddle-to-patient contact during defibrillation preparation.
Display
The uMED 20 features a:
- 7-inch high-resolution color TFT display
-
Resolution: 800 × 480 pixels
The display provides operating information and real-time ECG monitoring.
Durability & Portable Design
The uMED 20 is designed for demanding emergency environments.
Protection
-
IP44 water and dust protection
-
Tested for drops on 6 surfaces
-
Drop height: 0.75 m
Operating Temperature
0°C to 45°C
Dimensions & Weight
-
Width: approximately 275 mm
-
Depth: approximately 205 mm
-
Height: approximately 190 mm
-
Weight: approximately 5.3 kg
Its compact dimensions and battery operation make it suitable for portable emergency-care applications.
Self-Test & Maintenance
The uMED 20 includes comprehensive automatic self-testing capabilities.
The system performs automatic:
- Power-off tests
- Power-on tests
- Device checks
This is designed to reduce the need for daily manual checks.
Power Supply
The uMED 20 supports:
- AC power
- High-capacity rechargeable battery
The supplied specifications do not provide the battery capacity or exact operating time, so these should be confirmed for the specific configuration.
Technical Specifications
| Specification |
Mindray uMED 20 |
| Device Type |
Portable Defibrillator / Monitor |
| Manual Defibrillation |
Yes |
| AED |
Yes |
| Synchronized Cardioversion |
Yes |
| Non-Invasive Pacing |
Yes |
| Defibrillation Waveform |
Biphasic |
| Maximum Energy |
Up to 360J |
| Impedance Compensation |
Automatic |
| Manual Operation |
1-2-3 steps |
| Display |
7-inch color TFT |
| Resolution |
800 × 480 pixels |
| ECG Monitoring |
Real-time ECG |
| Patient Contact Feedback |
Yes |
| Water/Dust Protection |
IP44 |
| Drop Resistance |
0.75 m, 6-surface tested |
| Operating Temperature |
0°C to 45°C |
| Dimensions |
Approx. 275 × 205 × 190 mm |
| Weight |
Approx. 5.3 kg |
| Power |
AC + rechargeable battery |
| Self-Test |
Automatic power-on/off testing |
| Rescue Guidance |
ResQNavi™ |
| Rapid Rescue Technology |
QShock™ |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
