The Nidek ECG-712 12-Channel Electrocardiograph is a portable cardiac diagnostic device designed to record and display the heart's electrical activity for clinical assessment in hospitals, clinics and other healthcare facilities. Its 12-channel simultaneous acquisition capability supports comprehensive 12-lead ECG recording.
Equipped with a 7-inch color LCD display with 800 Ć 480 resolution, the ECG-712 provides a clear interface for viewing ECG waveforms and entering patient information. Its full alphanumeric keyboard facilitates patient data entry, while Manual, Auto and Arrhythmia Analysis modes support different ECG recording workflows.
The device features a built-in thermal printer compatible with 210 mm roll paper, along with USB and RS232 interfaces for connectivity. It is powered by AC electricity or a rechargeable 14.4 V, 4400 mAh lithium-ion battery, making it suitable for clinical environments that require flexible power options.
Key Features of the Nidek ECG-712
-
12-channel ECG acquisition: Supports simultaneous 12-channel recording.
-
7-inch color LCD: 800 Ć 480 resolution for viewing ECG waveforms and device information.
-
Alphanumeric keyboard: Facilitates entry of patient details.
-
Multiple operating modes: Manual, Auto and Arrhythmia Analysis.
-

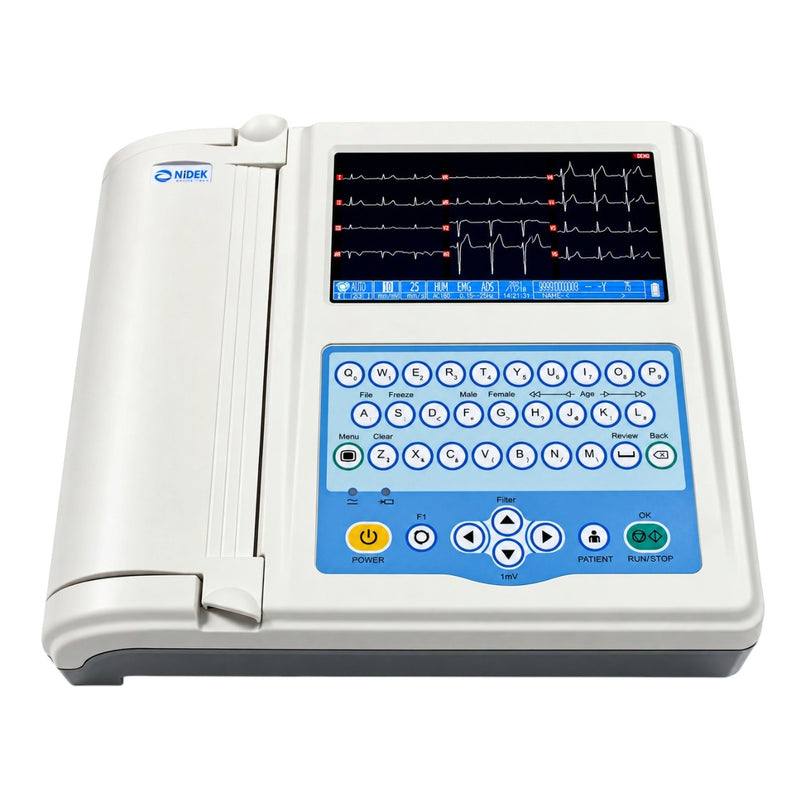

Built-in thermal printer: Supports 210 mm ECG paper rolls.
-
Rechargeable lithium-ion battery: 14.4 V, 4400 mAh battery.
-
AC power compatibility: 110ā230 V, 50/60 Hz.
-
USB and RS232 connectivity: Built-in interfaces for supported data-transfer functions.
-
Optional ECG NET software: Additional software support, subject to availability and compatibility.
-
Portable construction: Approximate weight of 3.0 kg.
-
Comprehensive accessory set: Supplied package information includes ECG cables, chest and limb electrodes, power and grounding cables, ECG paper and documentation.
Technical Specifications
| Specification |
Details |
| Brand |
Nidek |
| Model |
ECG-712 |
| Product type |
12-channel electrocardiograph |
| ECG acquisition |
12-channel simultaneous acquisition |
| Display |
7-inch color LCD |
| Display resolution |
800 Ć 480 pixels |
| Keyboard |
Full alphanumeric keyboard |
| Operating modes |
Manual, Auto and Arrhythmia Analysis |
| Printer |
Built-in thermal printer |
| Paper compatibility |
210 mm roll paper |
| Battery type |
Rechargeable lithium-ion |
| Battery capacity |
14.4 V, 4400 mAh |
| AC power supply |
110ā230 V AC, 50/60 Hz |
| Connectivity |
USB and RS232 |
| Optional software |
ECG NET, subject to compatibility |
| Dimensions |
320 Ć 270 Ć 66 mm |
| Approximate weight |
3.0 kg |
Ā
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
