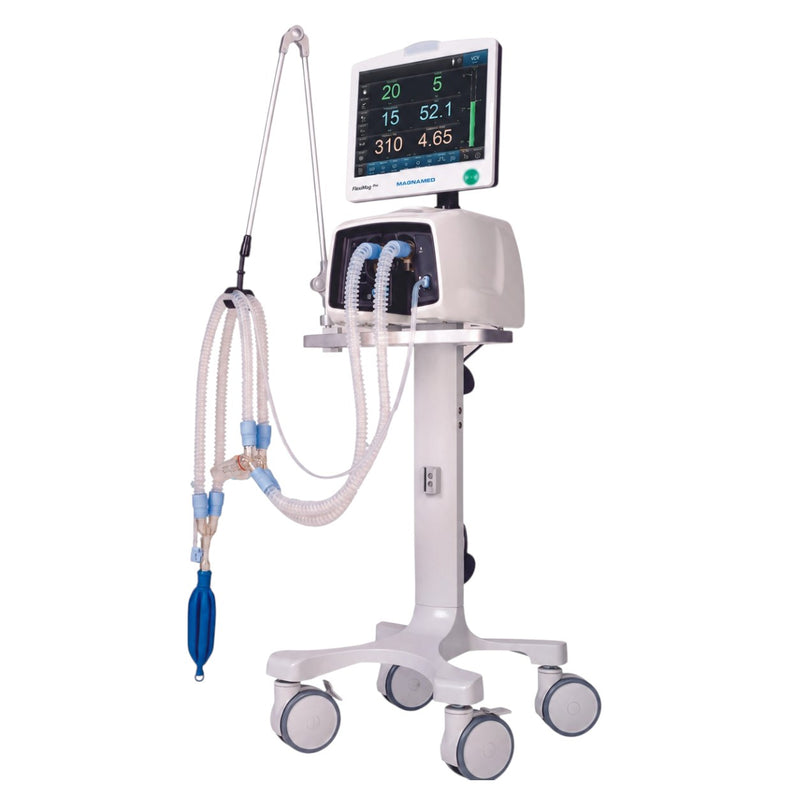

The Nidek FlexiMag Max 500 ICU Ventilator is a high-performance, turbine-driven mechanical ventilator designed for adult, pediatric and neonatal patients. It offers a broad selection of invasive and non-invasive ventilation modes to support respiratory care in intensive care units and other hospital settings.
Equipped with a 15-inch TFT-LCD touchscreen, the FlexiMag Max 500 provides access to ventilation controls, monitoring parameters and graphical respiratory displays. Its specified operating ranges include a tidal volume of 2–3,000 mL, inspiratory flow of 1–180 L/min, inspiratory pressure of 0–120 cmH₂O and PEEP of 0–50 cmH₂O.
Key Features of the Nidek FlexiMag Max 500
-
Adult, pediatric and neonatal ventilation: Designed for respiratory support across three patient groups.
-
Turbine-driven technology: Supports ventilator operation without relying solely on a compressed-air network; confirm the required gas connections for the installation.
-
Multiple ventilation modes: Includes volume control, pressure control, PRVC, SIMV, CPAP/PSV, Dual-PAP/APRV, PLV, MMV, Volume Support and NIV.
-
High-flow nasal therapy: Supports HFNT and oxygen therapy, according to the supplied product information.
-
15-inch touchscreen display: TFT-LCD interface for ventilation controls and monitoring.
-
Wide tidal-volume range: 2–3,000 mL.
-
Adjustable respiratory rate: 0–200 breaths per minute.
-
Proximal flow sensing: Designed to support responsive and accurate flow measurement.
-
Integrated capnography: EtCO₂ monitoring capability.
-
Oximetry monitoring: SpO₂ monitoring capability.
-
Respiratory graphics: Simulated lung graphics and graphical monitoring.
-
Extended data memory: Stores trends and events for up to 240 hours, according to the supplied specifications.
-
USB export: Supports data export through USB.
-
HL7 compatibility: Supports integration with compatible healthcare information systems.
-
Internal battery: Up to 210 minutes of operation, as specified.
-
Universal power input: 100–240 V AC, 50/60 Hz.
Technical Specifications
| Specification |
Details |
| Brand |
Nidek |
| Model |
FlexiMag Max 500 |
| Product type |
Turbine-driven ICU ventilator |
| Patient groups |
Adult, pediatric and neonatal |
| Tidal volume |
2–3,000 mL |
| Respiratory rate |
0–200 breaths/min |
| Inspiratory flow |
1–180 L/min |
| Inspiratory pressure |
0–120 cmH₂O |
| PEEP |
0–50 cmH₂O |
| Oxygen concentration (FiO₂) |
21–100% |
| Display |
15-inch TFT-LCD touchscreen |
| Flow sensing |
Proximal flow sensing |
| Capnography |
EtCO₂ monitoring |
| Oximetry |
SpO₂ monitoring |
| Graphics |
Simulated lung graphics and respiratory displays |
| Data memory |
240-hour trend and event memorization |
| Connectivity |
USB data export and HL7 compatibility |
| Battery backup |
Up to 210 minutes (3.5 hours) |
| Power supply |
100–240 V AC, 50/60 Hz |
| Dimensions |
453 × 1427 × 544 mm |
| Weight |
23 kg |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
