Product Description

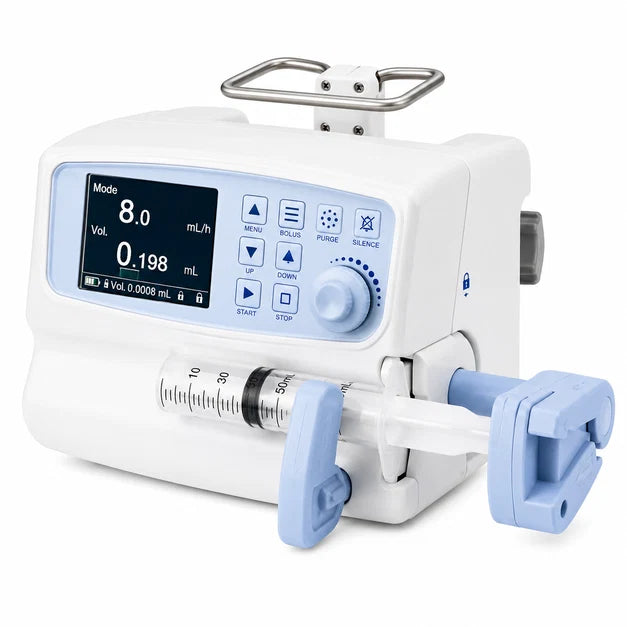

The Nidek Luna Syringe Pump is a precision syringe infusion pump designed for controlled and accurate delivery of medications and fluids in hospitals and critical care environments. Manufactured by Nidek Medical India Private Limited, the Luna combines smooth infusion performance, straightforward operation, and comprehensive safety features in a compact front-loading design.
The pump automatically detects the syringe size and supports standard 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, and 60 ml syringes. Multiple infusion modes, including flow-rate, time-based, and body-weight-based operation, provide flexibility for different clinical requirements.
The Nidek Luna Syringe Pump also includes a drug library, bolus function, automatic anti-bolus protection, adjustable occlusion pressure, KVO functionality, internal memory, and audio-visual alarms. Its rechargeable lithium-ion battery provides up to 6 hours of backup, supporting continued operation during power interruptions.
It is suitable for ICU, OT, oncology and chemotherapy, emergency and trauma care, and post-operative recovery applications.
Key Features

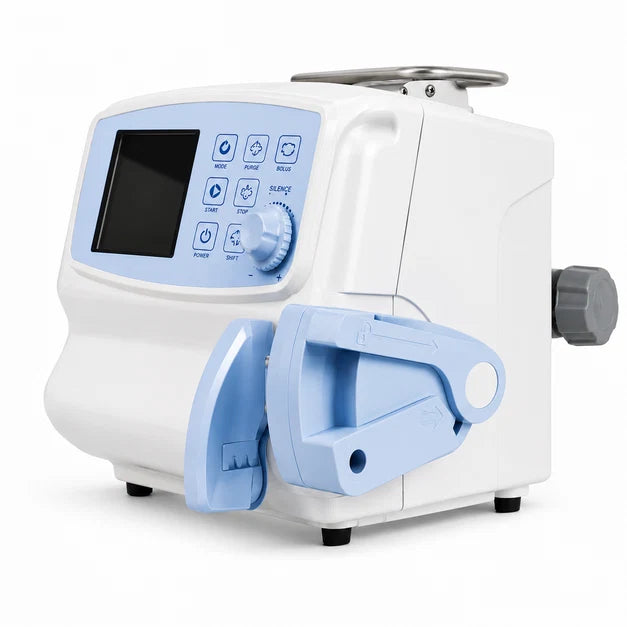

Front-Loading Syringe Mechanism
The front-loading design allows healthcare professionals to load and secure the syringe efficiently for convenient setup.
Automatic Syringe Detection
The Luna automatically identifies the syringe size, supporting 5 ml to 60 ml standard syringes and reducing manual setup requirements.
Multiple Infusion Modes
The pump supports:
-
Flow Rate Mode
-
Time-Based Mode
-
Body-Weight-Based Mode
-
Easy Mode
Wide Flow Rate Capability
Flow rates vary according to syringe size, supporting precise low-flow infusion as well as higher-rate delivery.
Drug Library
A built-in drug library helps streamline medication administration and supports consistent infusion setup.
Bolus & Anti-Bolus
The bolus function allows rapid medication delivery when clinically required, while automatic anti-bolus protection helps reduce unintended post-occlusion delivery.
Adjustable Occlusion Pressure
Three occlusion pressure settings—Low, Medium, and High—allow the pump to be configured according to clinical requirements.
KVO Function
The Keep Vein Open (KVO) function helps maintain IV line patency after completion of the programmed infusion.
Audio-Visual Alarms
The Luna provides alarms for conditions including occlusion, near-empty syringe, end of infusion, low battery, AC power failure, motor malfunction, system errors, and syringe installation problems.
Internal Memory & History
The system stores important infusion information and history logs for review.
Rechargeable Battery
A built-in 14.8 V rechargeable lithium-ion battery provides up to approximately 6 hours of backup when fully charged.
Hospital & Clinical Applications
The Nidek Luna Syringe Pump is designed for use in:
-
Intensive Care Units (ICU)
-
Operation Theatres (OT)
-
Oncology and chemotherapy
-
Emergency and trauma care
-
Post-operative recovery wards
-
General hospital infusion applications
Technical Specifications
| Specification |
Details |
| Product Name |
Nidek Luna Syringe Pump |
| Brand |
Nidek |
| Manufacturer |
Nidek Medical India Private Limited |
| Model |
Luna |
| Pump Type |
Syringe Infusion Pump |
| Loading Type |
Front Loading |
| Supported Syringes |
5, 10, 20, 30, 50 & 60 ml |
| Syringe Compatibility |
Standard syringes |
| Infusion Modes |
Flow Rate, Time-Based, Body-Weight-Based |
| Flow Rate – 5 ml |
0.1–100 ml/h |
| Flow Rate – 10 ml |
0.1–300 ml/h |
| Flow Rate – 20 ml |
0.1–600 ml/h |
| Flow Rate – 30 ml |
0.1–800 ml/h |
| Flow Rate – 50/60 ml |
0.1–1200 ml/h |
| Infusion Volume |
0.1–999.9 ml |
| VTBI |
1–1000 ml |
| Bolus |
Yes |
| Anti-Bolus |
Automatic |
| Accuracy |
±2% |
| Mechanical Accuracy |
≤1% |
| KVO Rate |
0.1–1 ml/h |
| Occlusion Settings |
Low / Medium / High |
| Drug Library |
Available |

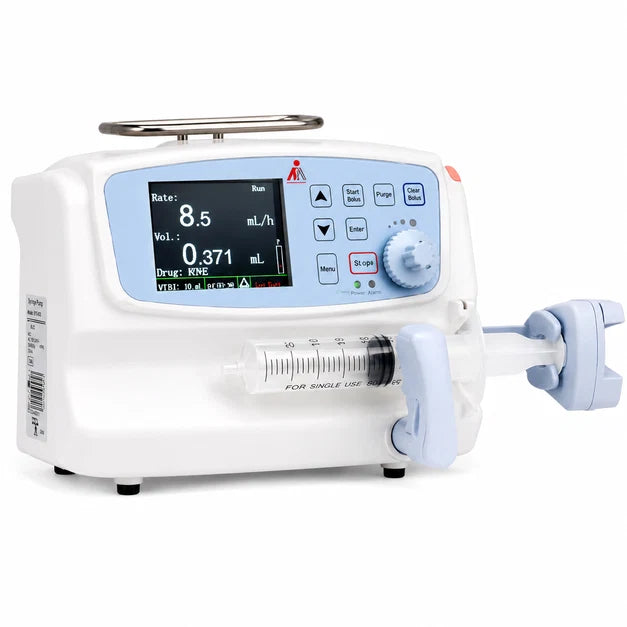

| Display |
High-resolution colour display |
| Touchscreen |
No |
| Battery |
14.8 V Rechargeable Lithium-Ion |
| Battery Backup |
Up to 6 hours |
| AC Input |
100–240 VAC, 50–60 Hz |
| Power Consumption |
20 VA |
| Operating Temperature |
5°C–40°C |
| Relative Humidity |
20%–90%, non-condensing |
| Atmospheric Pressure |
700–1060 hPa |
| Dimensions |
245 × 124 × 115 mm |
| Weight |
Approx. 2.5 kg |
| Warranty |
1 Year |
Safety & Infusion Functions
The Luna incorporates several functions intended to support safe infusion operation, including automatic syringe identification, real-time infused-volume display, automatic power switching, purge, bolus, anti-bolus protection, adjustable occlusion settings, KVO, system memory, and comprehensive audio-visual alarms.
What's Included
-
Nidek Luna Syringe Pump
-
Power Cord
-
User Manual
-
Warranty Card
Product condition: Brand New
Warranty: 1 Year Manufacturer Warranty
Quantity: 1 Unit per Box
Disclaimer: Content is reviewed by our Biomedical Product Expert and verified against available manufacturer documentation. Specifications may vary by model or batch. Use the equipment strictly as directed by the manufacturer. This information is for general product guidance only and does not replace professional medical advice, diagnosis, or treatment.
