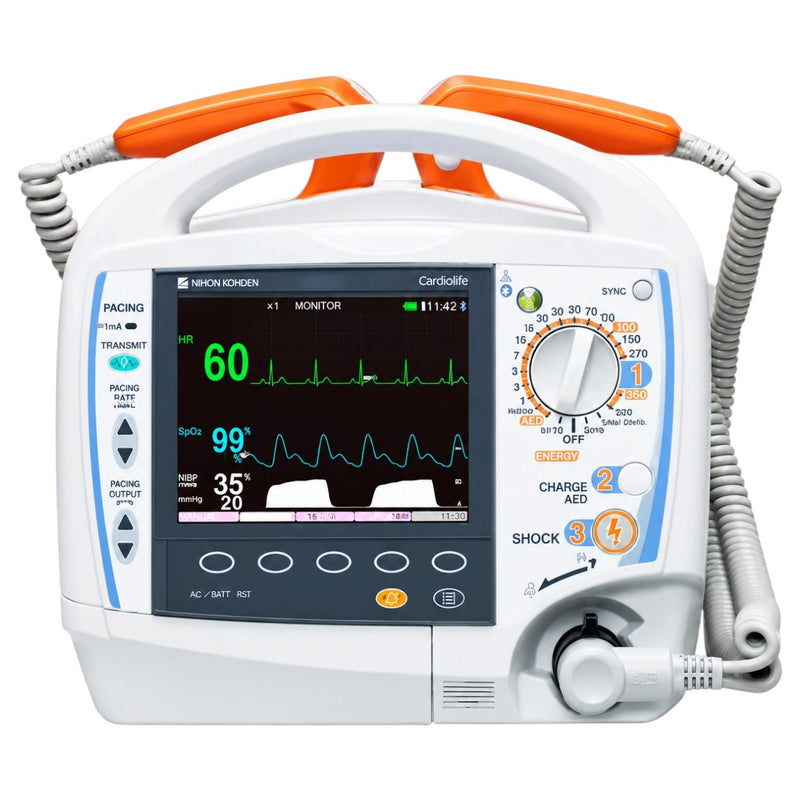

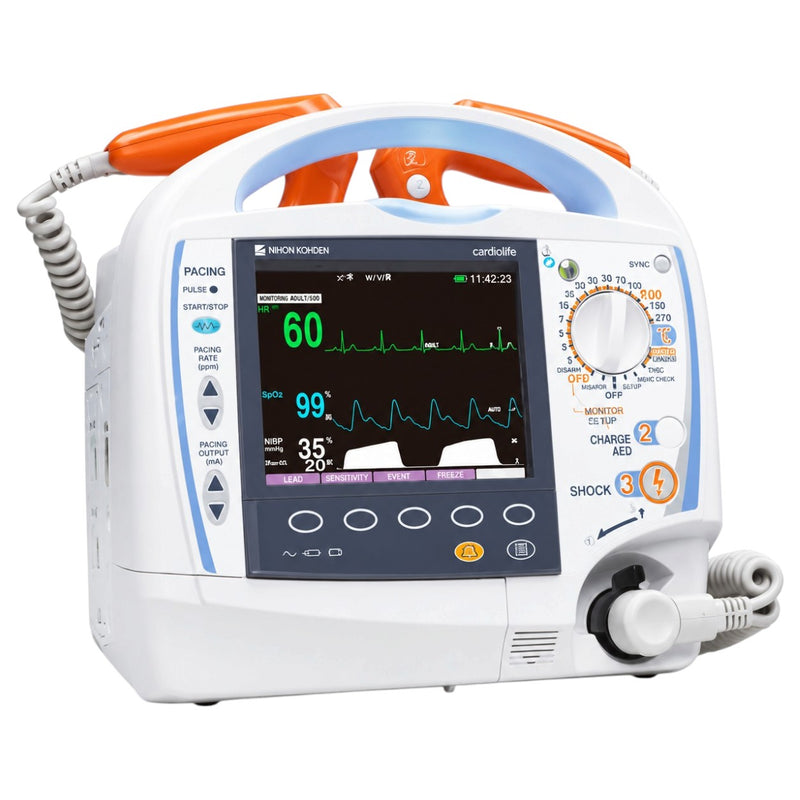

The Nihon Kohden Cardiolife TEC-5600 Multi-Parameter Monitor/Defibrillator is a professional portable monitor/defibrillator designed to support Basic Life Support (BLS) and Advanced Life Support (ALS) teams in hospitals, emergency rooms, ICUs, and transport vehicles.
The system combines AED, manual defibrillation, synchronized cardioversion, and non-invasive pacing with multi-parameter monitoring and data connectivity. It features ActiBiphasic technology, continuous VF analysis during CPR, rapid charging, and a high-resolution color display.
Key Features
-
Professional multi-parameter monitor/defibrillator
-
Designed for BLS and ALS teams
-
Automatic External Defibrillation (AED)
- Manual defibrillation
- Synchronized cardioversion
- Non-invasive pacing
- ActiBiphasic technology
-
Charges to 200J in less than 4 seconds
-
ECG baseline recovery in under 3 seconds after shock delivery
-
Continuous VF analysis during CPR
- Pre-charging before a shock is advised
- 6.5-inch high-resolution color TFT LCD
-
640 × 480 pixel display resolution
- Backlit display
- Smart Cable System
- Plug-and-play ECG, SpO₂ and EtCO₂ sensors
- Bluetooth connectivity
- SD card interface for data transmission
Defibrillation & ActiBiphasic Technology
The Cardiolife TEC-5600 utilizes ActiBiphasic technology for lower-energy defibrillation.
The system supports both automatic external defibrillation and manual defibrillation, allowing the device to be used across different levels of emergency cardiac care.
Synchronized Cardioversion
The TEC-5600 also supports synchronized cardioversion, enabling synchronized shock delivery when clinically indicated.
Non-Invasive Pacing
The device includes non-invasive pacing, providing an additional therapy capability for appropriately trained clinical teams.
Rapid Charging & ECG Recovery
The supplied specification states that the TEC-5600 can charge to 200J in less than 4 seconds when operating with AC power or a charged battery.
Following shock delivery, the ECG baseline recovers in under 3 seconds, supporting rapid continuation of patient assessment and resuscitation.
Continuous VF Analysis During CPR
A key feature of the Cardiolife TEC-5600 is its ability to perform continuous ECG waveform analysis during CPR.
The system can also pre-charge energy before a shock is advised, helping reduce delays during the resuscitation workflow.
6.5-Inch Color Display
The TEC-5600 features a 6.5-inch high-resolution color TFT LCD display with:
- 640 × 480 pixel resolution
- Backlit screen
- High-resolution color display
The display provides the interface for monitoring and defibrillation-related information.
Smart Cable System
The Smart Cable System uses plug-and-play modular sensors for:
The supplied information states that these sensors are interchangeable with other Nihon Kohden monitors, supporting flexible clinical monitoring configurations.
Connectivity & Data Management
The TEC-5600 provides:
- Bluetooth connectivity
- SD card interface
- Mobile ECG data transmission
- Event data transmission
These connectivity features support transfer and management of ECG and event information.
Technical Specifications
| Specification |
Details |
| Brand |
Nihon Kohden |
| Model |
Cardiolife TEC-5600 |
| Product Type |
Multi-Parameter Monitor/Defibrillator |
| Intended Teams |
BLS & ALS |
| AED |
Yes |
| Manual Defibrillation |
Yes |
| Synchronized Cardioversion |
Yes |
| Non-Invasive Pacing |
Yes |
| Defibrillation Technology |
ActiBiphasic |
| Charging |
200J in <4 seconds* |
| ECG Recovery |
<3 seconds after shock delivery* |
| VF Analysis |
Continuous during CPR |
| Display |
6.5-inch color TFT LCD |
| Display Resolution |
640 × 480 pixels |
| Display |
Backlit |
| Smart Cable Parameters |
ECG, SpO₂, EtCO₂ |
| Connectivity |
Bluetooth |
| Data Interface |
SD card |
| Intended Environments |
Hospital, ER, ICU & transport vehicles |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
