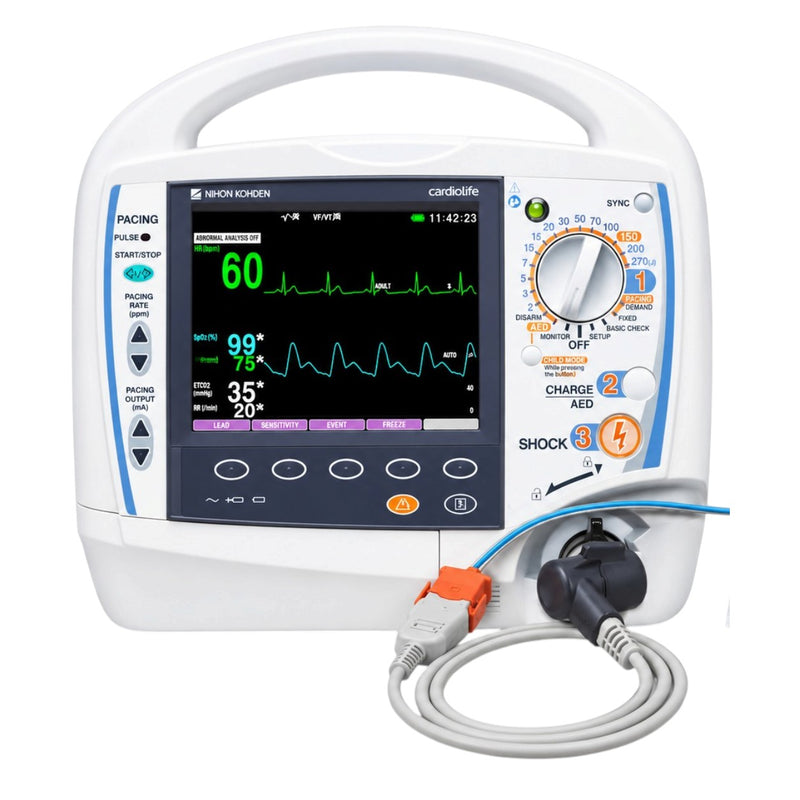

The Nihon Kohden Cardiolife TEC 5621 is a professional portable biphasic monitor-defibrillator designed for emergency medical services and hospital critical-care environments. It combines defibrillation, AED functionality, synchronized cardioversion, non-invasive pacing, and modular patient monitoring in a portable platform.
The device uses ActiBiphasic technology and provides energy selection from 2 to 270J, with rapid charging to 200J in under 4 seconds.
Key Features
-
Professional portable biphasic monitor-defibrillator
-
AED and manual defibrillation modes
-
Energy selection from 2–270J
-
ActiBiphasic defibrillation technology
-
Synchronized cardioversion
-
Non-invasive pacing support
- 6.5-inch high-resolution color TFT LCD
-
Display of up to 4 simultaneous waveforms
-
Rapid charging to 200J in under 4 seconds
-
ECG baseline recovery in under 3 seconds after shock
-
Approx. 180 minutes of continuous monitoring
-
At least 100 discharges at 270J with the specified battery condition
-
Adult and pediatric resuscitation support
- ec1 arrhythmia analysis
-
Plug-and-play Smart Cable System
-
Optional SpO₂, EtCO₂, NIBP and ECG monitoring
-
Bluetooth data transmission
-
Built-in voice recorder
-
Optional SD card storage
-
IP41 protection with external paddles / IP44 with pad adapters
Defibrillation & Cardioversion
The Cardiolife TEC 5621 uses ActiBiphasic technology for biphasic defibrillation.
Energy Range
-
Energy selection: 2–270J
-
Charging to 200J: under 4 seconds
-
ECG baseline recovery: under 3 seconds after a shock
The device supports both AED and manual defibrillation, allowing it to be used in different levels of emergency response according to operator training and configuration.
Synchronized Cardioversion
The TEC 5621 also supports synchronized cardioversion, allowing appropriately trained clinicians to deliver synchronized therapy for arrhythmias such as atrial fibrillation.
AED Function
The Cardiolife TEC 5621 provides an Automated External Defibrillation (AED) mode in addition to manual defibrillation.
This provides flexibility for emergency medical services and hospital resuscitation teams that may require both automated and professional manual operating modes.
Non-Invasive Pacing
The device supports non-invasive pacing, with availability dependent on the particular model/configuration.
This provides temporary external pacing capability when clinically indicated.
Advanced Patient Monitoring
The TEC 5621 can function as a monitor-defibrillator rather than simply a defibrillation device.
Available / Optional Monitoring
| Parameter |
Availability |
| ECG |
3- or 6-lead options
|
| SpO₂ |
Optional |
| EtCO₂ |
Optional |
| NIBP |
Optional |
|
Arrhythmia Analysis
|
ec1 |
|
Waveform Display
|
Up to 4 simultaneous waveforms
|
The optional cap-ONE mainstream EtCO₂ sensor is listed among the supported monitoring technologies.
ec1 Arrhythmia Analysis
The Cardiolife TEC 5621 incorporates ec1 arrhythmia analysis, an advanced algorithm designed to improve analysis accuracy and reduce false alarms.
This supports continuous clinical assessment alongside the device's defibrillation and monitoring functions.
Smart Cable System
The Smart Cable System provides plug-and-play modular connectivity for patient monitoring.
It allows compatible monitoring modules and sensors to be connected according to the required clinical configuration, helping make the monitor-defibrillator adaptable to different emergency and critical-care applications.
Display
The device features a:
- 6.5-inch high-resolution color TFT LCD
-
Up to 4 simultaneous waveforms
The display provides visualization of patient monitoring information during emergency care and resuscitation.
Data Management & Connectivity
The TEC 5621 provides several options for managing clinical and event information:
- Bluetooth data transmission
-
Built-in voice recorder
-
Optional SD card storage
These features can support event documentation and transfer of relevant device data.
Adult & Pediatric Use
The Cardiolife TEC 5621 supports adult and pediatric resuscitation using appropriate color-coded/size-specific electrodes and adult/child pad options.
Selection of the appropriate electrodes and configuration should follow the manufacturer's instructions and applicable clinical protocols.
Battery Performance
The supplied specifications indicate:
-
Approximately 180 minutes of continuous monitoring
-
At least 100 discharges at 270J
These figures are dependent on the specified battery condition and operating configuration.
Physical Specifications
| Specification |
Cardiolife TEC 5621
|
|
Device Type
|
Portable Biphasic Monitor-Defibrillator
|
| Dimensions |
31.1 W × 28.8 H × 24.2 D cm
|
| Weight |
Approx. 5.7–6.8 kg
|
| Display |
6.5-inch high-resolution color TFT LCD
|
|
Waveform Display
|
Up to 4 simultaneous waveforms
|
|
Energy Range
|
2–270J
|
| Charging |
<4 sec to 200J
|
|
ECG Recovery
|
<3 sec after shock
|
|
Water/Dust Protection
|
IP41 with external paddles; IP44 with pad adapters
|
|
Battery Monitoring
|
Approx. 180 min
|
|
Battery Defibrillation
|
≥100 discharges at 270J
|
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
