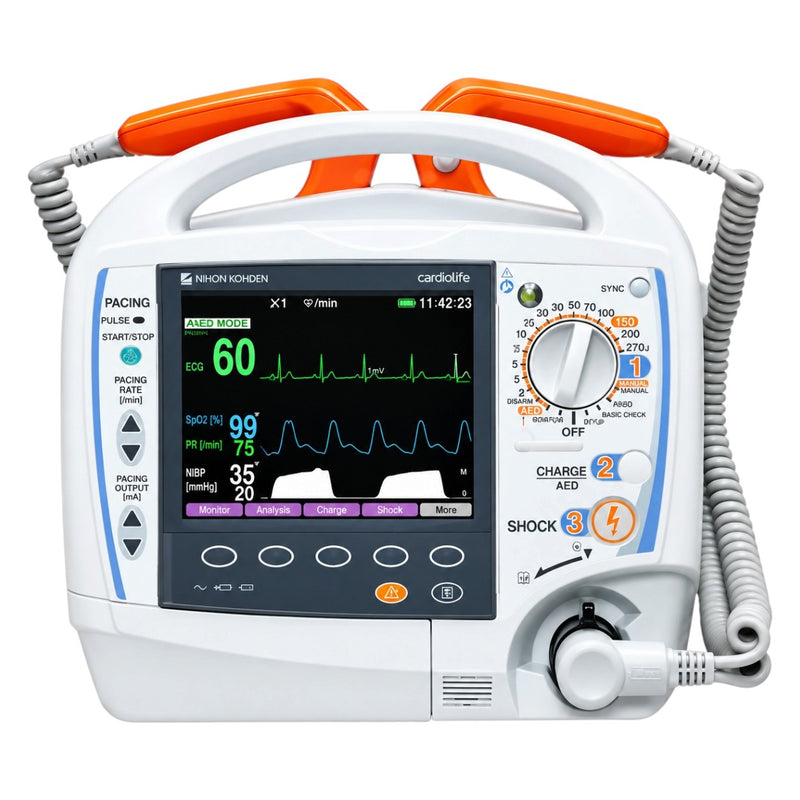

The Nihon Kohden Cardiolife TEC-5631 is a professional multi-parameter biphasic monitor and defibrillator designed for emergency cardiac care, resuscitation, and critical-care applications. It combines ActiBiphasic defibrillation, ECG monitoring, synchronized cardioversion, AED functionality, and built-in non-invasive external cardiac pacing in a portable system.
The TEC-5631 supports demand and fixed transthoracic pacing, making it suitable for situations where temporary external cardiac pacing is required. Its Smart Cable technology also allows selected configurations to support SpO₂, EtCO₂ and NIBP monitoring.
Key Features
- Nihon Kohden Cardiolife TEC-5631
- Professional biphasic monitor-defibrillator
-
ActiBiphasic T-circuit waveform
-
Defibrillation energy up to 270J
-
Fast charging to 200J in under 4 seconds
-
Built-in non-invasive external pacing
- Demand and fixed pacing modes
- Semi-automatic AED mode
- Synchronized cardioversion
- 3-lead or 6-lead ECG monitoring
- Continuous VF analysis during CPR and charging
-
Advanced ec1 arrhythmia analysis
- 6.5-inch high-power backlit color TFT LCD
- 640 × 480 display resolution
- Optional SpO₂, EtCO₂ and NIBP through Smart Cable technology
- Quick-toggle Child Mode for pediatric applications
-
Bluetooth data transmission
- Approximately 150 minutes of continuous monitoring or ≥70 discharges at 270J
ActiBiphasic Defibrillation
The Cardiolife TEC-5631 uses an ActiBiphasic T-circuit waveform and provides defibrillation energy up to 270J.
The system is designed for rapid emergency response, with charging to 200J in less than 4 seconds when powered by AC or the battery.
| Parameter |
Specification |
| Waveform |
ActiBiphasic T-circuit |
| Maximum energy |
Up to 270J |
| Charging |
<4 seconds to 200J |
| Power source |
AC or battery |
Built-In Non-Invasive Pacing
One of the key features of the TEC-5631 is its built-in external pacing capability.
It provides:
- Demand pacing
- Fixed pacing
- Transthoracic cardiac pacing
- Quick access to pacing functionality for emergency care
This allows the device to provide temporary non-invasive pacing when clinically indicated.
ECG Monitoring & VF Analysis
The TEC-5631 provides 3-lead or 6-lead ECG monitoring.
It also supports continuous ventricular fibrillation (VF) analysis, including during:
- CPR
- Charging
- Emergency resuscitation workflows
The device incorporates ec1 arrhythmia analysis for advanced ECG rhythm assessment.
AED & Synchronized Cardioversion
The Cardiolife TEC-5631 provides both:
Semi-Automatic AED Mode
The AED function supports semi-automatic external defibrillation during cardiac emergencies.
Synchronized Cardioversion
The device also supports synchronized cardioversion for appropriately indicated cardiac rhythms.
Multi-Parameter Monitoring
Through Nihon Kohden's Smart Cable technology, selected configurations can support additional monitoring parameters.
| Parameter |
Availability |
| ECG |
Standard |
| SpO₂ |
Optional |
| EtCO₂ |
Optional |
| NIBP |
Optional |
6.5-Inch Color Display
The TEC-5631 features a:
- 6.5-inch color TFT LCD
- High-power backlight
- 640 × 480 resolution
The display provides visualization of relevant ECG and monitoring information during emergency and critical-care use.
Child Mode
A dedicated Child Mode button allows quick switching to pediatric applications.
This can help streamline operation when the device is being used for pediatric resuscitation, subject to the appropriate accessories and clinical protocols.
Connectivity & Data Management
The TEC-5631 provides connectivity features including:
- Bluetooth data transmission
- Mobile network/ECG data forwarding
- Optional voice recording
- SD card support for voice recording
These features can support documentation and transfer of relevant patient/device information.
Automatic Self-Tests
The device incorporates automatic self-testing at multiple intervals:
- Daily self-test
- Monthly self-test
- Power-on/off self-tests
These functions are intended to support device readiness and operational checks.
Battery & Power Specifications
The TEC-5631 uses a rechargeable Ni-MH battery pack.
| Battery Parameter |
Specification |
| Battery type |
Rechargeable Ni-MH |
| Battery voltage |
12.0V |
| Capacity |
2800 mAh |
| Example battery |
NKB-301V |
| Defibrillation performance |
≥70 discharges at 270J |
| Continuous monitoring |
Approximately 150 minutes |
| Recharge time |
Approximately 2–3 hours |
Actual battery performance can depend on configuration, battery condition, operating conditions and usage.
Technical Specifications
| Specification |
Details |
| Brand |
Nihon Kohden |
| Product |
Cardiolife TEC-5631 |
| Device type |
Multi-parameter monitor-defibrillator |
| Defibrillation |
Biphasic |
| Waveform |
ActiBiphasic T-circuit |
| Maximum energy |
Up to 270J |
| Charging time |
<4 sec to 200J |
| Pacing |
Built-in non-invasive external pacing |
| Pacing modes |
Demand and fixed |
| Cardioversion |
Synchronized |
| AED |
Semi-automatic |
| ECG |
3-lead / 6-lead |
| VF analysis |
Continuous, including during CPR and charging |
| Arrhythmia analysis |
ec1 |
| Display |
6.5-inch color TFT LCD |
| Resolution |
640 × 480 |
| SpO₂ |
Optional |
| EtCO₂ |
Optional |
| NIBP |
Optional |
| EtCO₂ technology |
cap-ONE sensor |
| Child mode |
Yes |
| Connectivity |
Bluetooth, mobile network/ECG forwarding |
| Voice recording |
Optional, SD card |
| Protection |
IP44 |
| Battery |
Rechargeable Ni-MH, 12V 2800mAh |
| Battery monitoring |
Approx. 150 min |
| Battery defibrillation |
≥70 discharges at 270J |
| Battery recharge |
Approx. 2–3 hours |
| Weight |
Approx. 5.7–6.9 kg, configuration dependent |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
