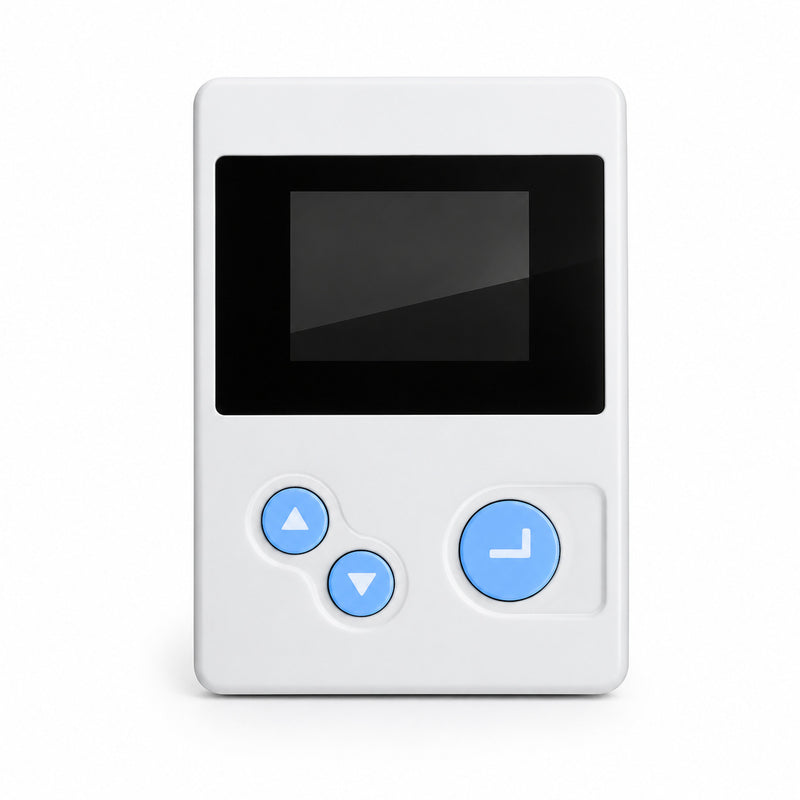

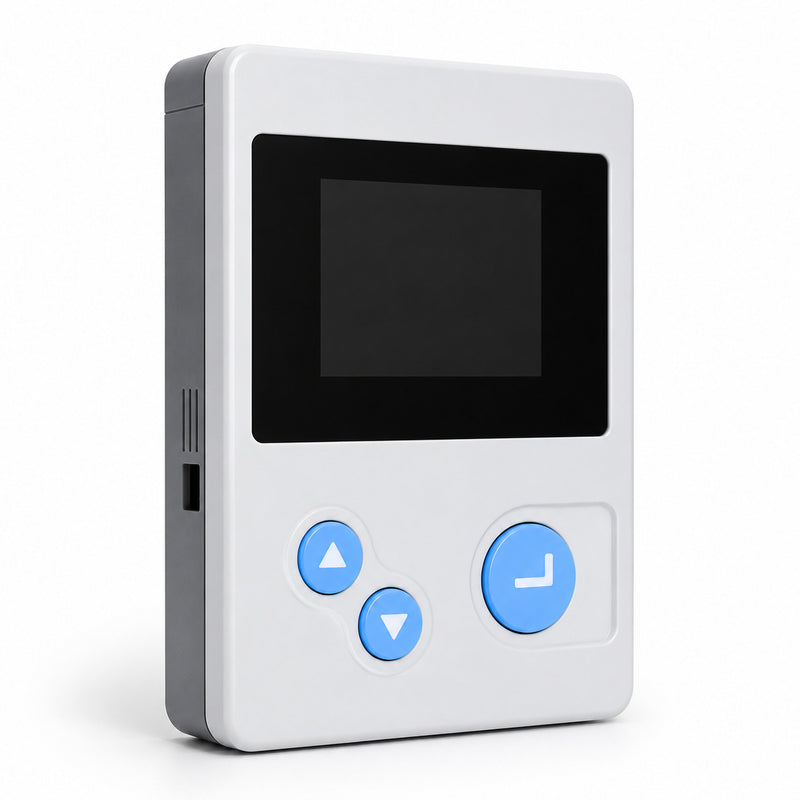

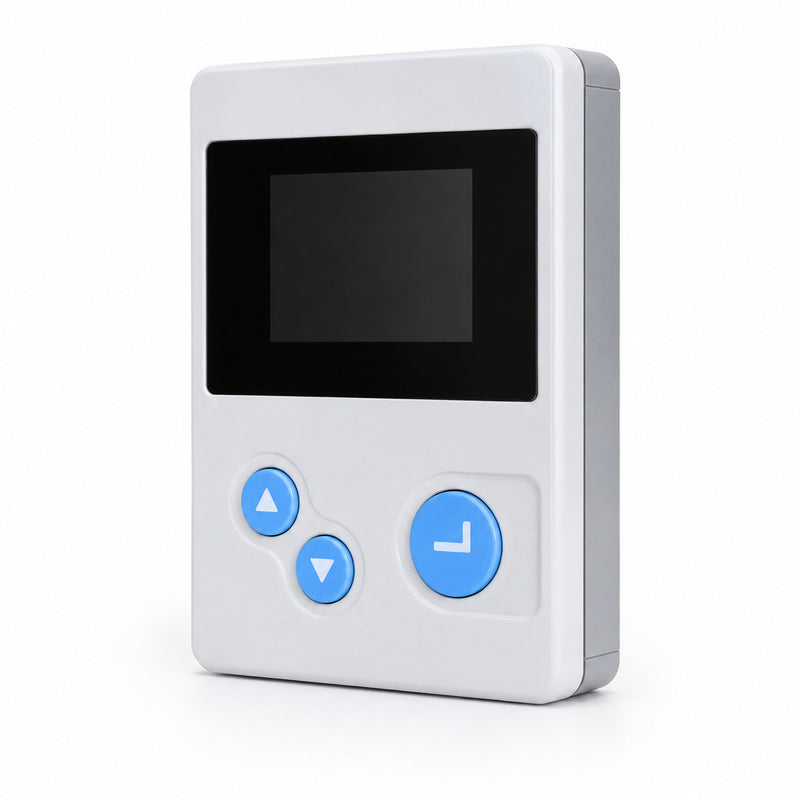

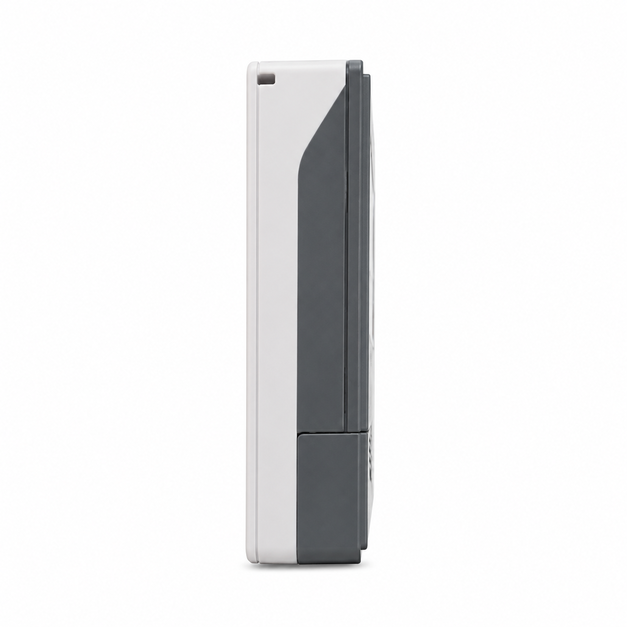

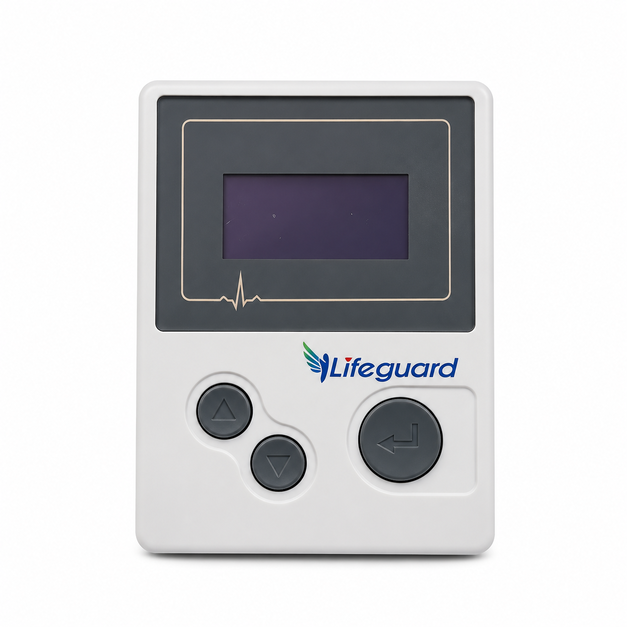

Lifeguard 3 Channel ECG Holter Monitor
Product Selection • Best Price • Technical Support
The Lifeguard 3 Channel ECG Holter Monitor is a compact and dependable ambulatory ECG monitoring device designed for continuous cardiac rhythm recording over extended periods. Ideal for hospitals, cardiology clinics, diagnostic centers, and physician practices, it enables healthcare professionals to monitor patients for 1 to 7 days, helping detect intermittent arrhythmias and cardiac abnormalities that may not be captured during a standard ECG examination.
Featuring 3-channel ECG recording, a 1024 Hz sampling rate, and 16-bit resolution, the monitor delivers highly accurate, noise-free ECG signals for precise cardiac analysis. Its 1.3-inch OLED display provides real-time waveform visualization, allowing clinicians to verify signal quality during setup.
Designed with patient comfort in mind, the Lifeguard Holter Monitor weighs only 50 grams and is powered by a single AAA alkaline battery, offering up to 168 hours (7 days) of uninterrupted recording. Advanced features such as Pacemaker Detection, Sleep Management, and Event Mark enhance diagnostic capabilities by capturing clinically significant events during daily activities.
The device stores ECG data on a removable Micro SD Card (8 GB or above) and supports fast data transfer via USB 2.0 or an SD card reader, ensuring seamless integration into hospital workflows. Lightweight, portable, and easy to operate, the Lifeguard 3 Channel ECG Holter Monitor is an excellent solution for long-term cardiac monitoring and accurate arrhythmia diagnosis.
Product Highlights
- Continuous 3-channel ECG recording
- Records ECG for 1 to 7 days
- 1024 Hz sampling rate with 16-bit resolution
- 1.3-inch OLED display with real-time ECG waveform
- Up to 168 hours of battery backup
- Lightweight 50 g portable design
- Pacemaker Detection, Sleep Management & Event Mark
- Removable Micro SD Card storage (8 GB or above)

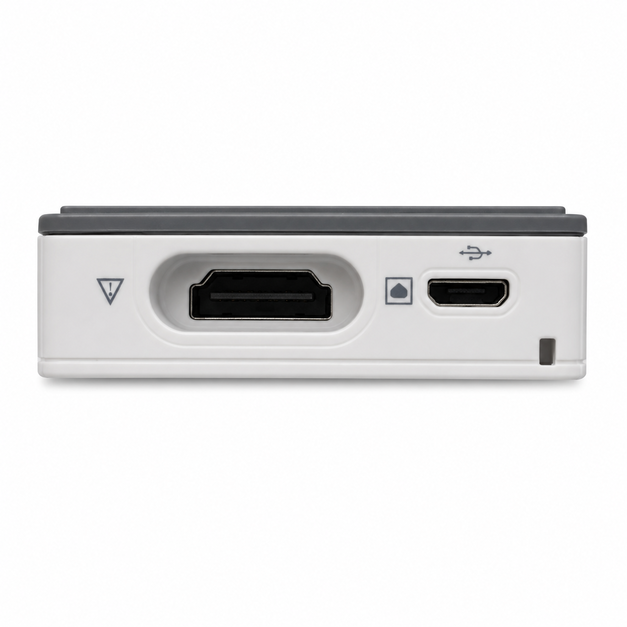

- Fast USB 2.0 and SD card data transfer
- Ideal for hospitals, cardiology departments, and diagnostic centers
Technical Specifications
| Feature | Specification |
|---|---|
| Product Name | Lifeguard 3 Channel ECG Holter Monitor |
| ECG Channels | 3 Channel |
| Recording Duration | 1–7 Days |
| Display | 1.3-inch OLED (128 × 64) |
| Sampling Rate | 1024 Hz |
| Resolution | 16-bit |

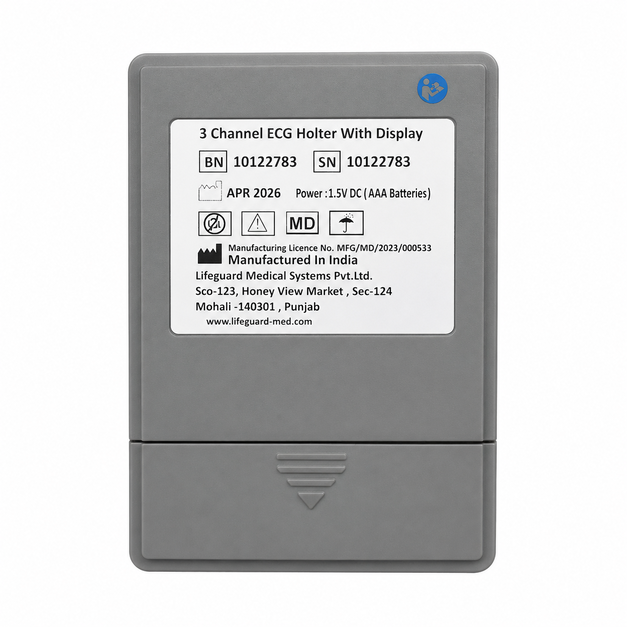

| Battery | 1 × AAA Alkaline Battery |
| Battery Backup | Up to 168 Hours |
| Storage | Removable Micro SD Card (8 GB or Higher) |
| Data Transfer | USB 2.0 / SD Card Reader |
| Pacemaker Detection | Yes |
| Sleep Management | Yes |
| Event Mark | Yes |
| Dimensions | 7.0 × 5.5 × 1.6 cm |
| Weight | 50 g (Battery Not Included) |
Box Contents
- 1 × Lifeguard 3 Channel ECG Holter Monitor
- 1 × ECG Patient Cable
- 1 × Micro SD Card
- 1 × USB Cable
- 1 × Carrying Pouch
- 1 × User Manual
- 1 × Warranty Card
Warranty
1 Year Manufacturer Warranty covering manufacturing defects, as per the manufacturer's warranty terms and service policy.
