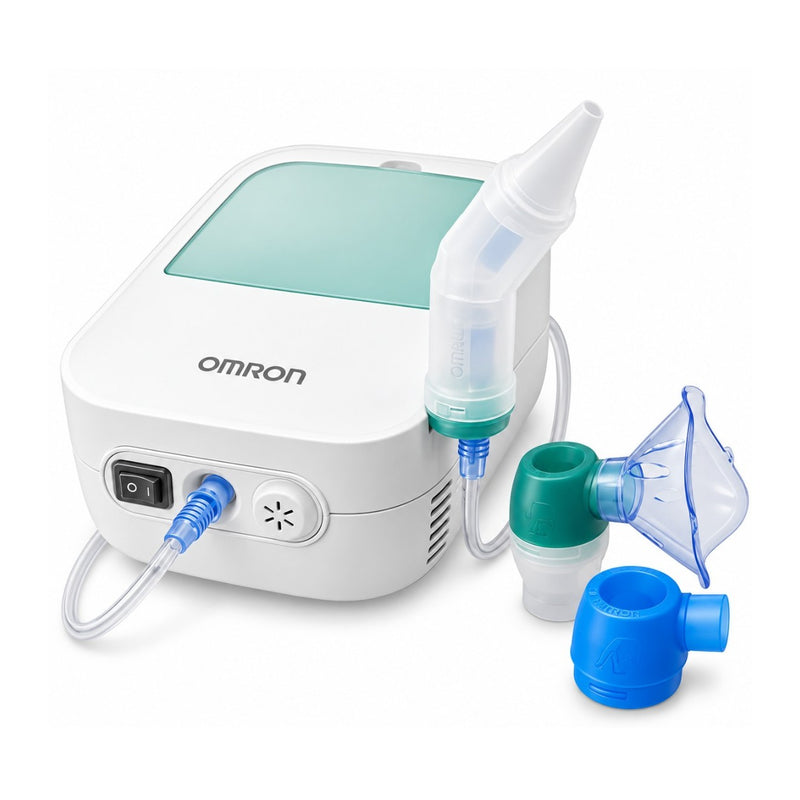

The Omron NE-C301 DuoBaby is a specialized 2-in-1 pediatric respiratory care device that combines a compressor nebulizer and nasal aspirator in one unit. It is designed for infants and children aged one month and older, helping clear nasal mucus while also delivering prescribed respiratory medication through aerosol therapy.
The DuoBaby features interchangeable inhalation kits designed for different respiratory tract areas. The Blue Top Kit produces approximately 4 µm particles for lower respiratory tract conditions, while the Green Top Kit produces approximately 9 µm particles for upper respiratory tract conditions.
Its Venturi-based nasal aspiration system collects mucus in a washable chamber while helping prevent mucus from entering the compressor mechanism.
Key Features
-
2-in-1 Pediatric Respiratory Device: Combines a compressor nebulizer and nasal aspirator.
-
For Infants & Children: Designed for babies and children aged 1 month and older.
-
Nasal Aspirator: Helps clear mucus from blocked nasal passages.
-
Compressor Nebulizer: Delivers respiratory medication as an aerosol when prescribed.
-
Two Interchangeable Inhalation Kits: Different particle sizes for upper and lower respiratory tract applications.
-
Blue Top Kit: Approximately 4 µm particle size for lower respiratory tract conditions.
-
Green Top Kit: Approximately 9 µm particle size for upper respiratory tract conditions.
-
Venturi Nasal Aspiration System: Helps trap mucus safely in a washable collection chamber.
-
Washable Collection Chamber: Designed for convenient cleaning and hygiene.
-
Compressor Protection: The aspiration system is designed to keep mucus away from the compressor mechanism.
-
Built-In Storage Compartment: Provides convenient storage for accessories.
-
Noise Level: Approximately 63 dB according to the supplied information.
2-in-1 Nebulizer & Nasal Aspirator
The main advantage of the Omron DuoBaby nebulizer is that it combines two functions in one device.
Nasal Aspiration
The integrated nasal aspirator helps remove mucus and clear blocked nasal passages.
Clearing nasal secretions can help make breathing, feeding, and sleeping more comfortable for babies and young children when they have nasal congestion.
Compressor Nebulization
The compressor nebulizer converts prescribed liquid medication into an aerosol that can be inhaled.
The device includes different inhalation kits to support aerosol delivery for different areas of the respiratory tract.
Medication should only be used as prescribed by a qualified healthcare professional.
Interchangeable Inhalation Kits
The DuoBaby includes two inhalation kits designed around different particle sizes.
| Kit |
Colour |
Approx. Particle Size |
Intended Application |
| Kit 1 |
Blue Top |
Approx. 4 µm |
Lower respiratory tract |
| Kit 2 |
Green Top |
Approx. 9 µm |
Upper respiratory tract |
Blue Top Kit – Lower Respiratory Tract
The Blue Top inhalation kit produces particles of approximately 4 µm and is intended for lower respiratory tract conditions such as:
- Asthma
- Bronchitis
- Bronchiolitis
Green Top Kit – Upper Respiratory Tract
The Green Top kit produces particles of approximately 9 µm and is intended for upper respiratory tract conditions such as:
- Colds
- Blocked nose
- Allergies
The appropriate inhalation kit should be selected according to the intended treatment and manufacturer's instructions.
Venturi Nasal Aspirator
The nasal aspirator uses a Venturi system to help remove nasal mucus.
Mucus is collected inside a dedicated washable collection chamber, helping prevent secretions from contaminating the compressor mechanism.
This design makes the nasal aspiration function easier to clean and maintain.
Hygienic & Washable Design
Hygiene is particularly important when respiratory equipment is used for infants and children.
The nasal aspirator's collection chamber is washable, allowing it to be cleaned after use according to the manufacturer's instructions.
Regular cleaning of the appropriate components can help maintain hygienic operation.
Built-In Storage Compartment
The DuoBaby features a built-in accessory storage compartment, providing a convenient place to keep components when the device is not being used.
This can help keep the nebulizer and nasal aspiration accessories organized.
Noise Level
The supplied information states a noise level of approximately 63 dB.
The manageable operating noise is intended to support practical use around infants and children.
Clinical & Home Applications
The Omron NE-C301 DuoBaby can be useful for pediatric respiratory care involving:
- Nasal congestion
- Blocked nose
- Colds
- Allergies
- Asthma
- Bronchitis
- Bronchiolitis
- Other respiratory conditions requiring prescribed nebulized medication
The device is intended for infants and children aged one month and older, according to the supplied product information.
Technical Specifications
| Specification |
Details |
| Brand |
Omron |
| Model |
NE-C301 DuoBaby |
| Product Type |
2-in-1 Compressor Nebulizer & Nasal Aspirator |
| Patient Group |
Infants & Children |
| Minimum Age |
1 Month+ |
| Nebulizer Type |
Compressor |
| Nasal Aspirator |
Integrated |
| Inhalation Kits |
2 Interchangeable Kits |
| Blue Top Kit |
Approx. 4 µm |
| Green Top Kit |
Approx. 9 µm |
| Blue Top Application |
Lower Respiratory Tract |
| Green Top Application |
Upper Respiratory Tract |
| Nasal Aspiration System |
Venturi |
| Mucus Collection |
Washable Collection Chamber |
| Built-In Storage |
Yes |
| Operating Noise |
Approx. 63 dB |
| Intended Use |
Pediatric Respiratory Care |
Product Disclaimer
Specifications and included accessories may vary by production batch, market, or manufacturer revision. Please verify the exact configuration with the seller before purchase. This product information is intended for general product guidance and does not replace professional medical advice, diagnosis, or treatment.
