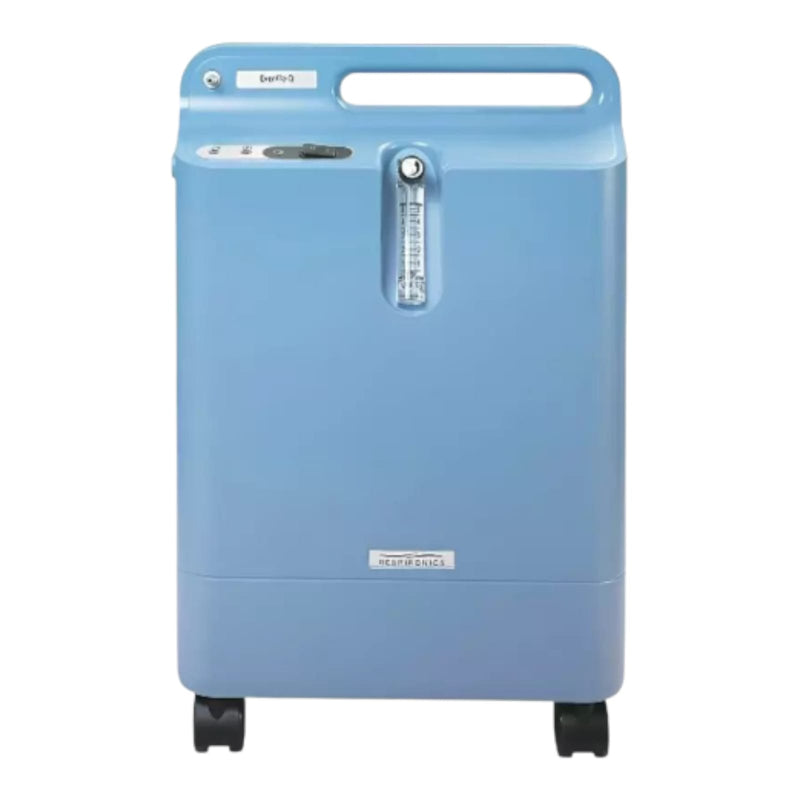

Philips Respironics EverFlo Oxygen Concentrator 5 LPM, Brand New, 3-Year Warranty

Product Description

The Philips Respironics EverFlo 5 LPM Oxygen Concentrator is a stationary oxygen therapy device designed to provide a continuous supply of concentrated oxygen for home care and healthcare environments. Its compact and lightweight design makes it convenient for placement and movement, while its low-noise operation supports comfortable use in indoor settings.

The Philips EverFlo oxygen concentrator uses Pressure Swing Adsorption (PSA) technology to concentrate oxygen from room air and deliver oxygen at a flow rate of 0.5–5 L/min. The supplied specifications state an oxygen concentration of approximately 93% ±3% at 5 LPM.

With approximately 45 dB sound output, 350 W power consumption, a recessed flow meter, external and internal filters, and a durable metal cannula connection, the EverFlo is designed for dependable long-term oxygen therapy applications.

The EverFlo 5L oxygen concentrator is suitable for homes, hospitals, clinics, nursing homes, and other healthcare environments where prescribed continuous-flow oxygen therapy is required.

Key Features

• 5 LPM Continuous Oxygen Flow: Provides adjustable oxygen flow from 0.5 to 5 L/min.

• High Oxygen Concentration: Supplied specifications state approximately 93% ±3% oxygen concentration at 5 LPM.

• PSA Technology: Uses Pressure Swing Adsorption technology to concentrate oxygen from ambient air.

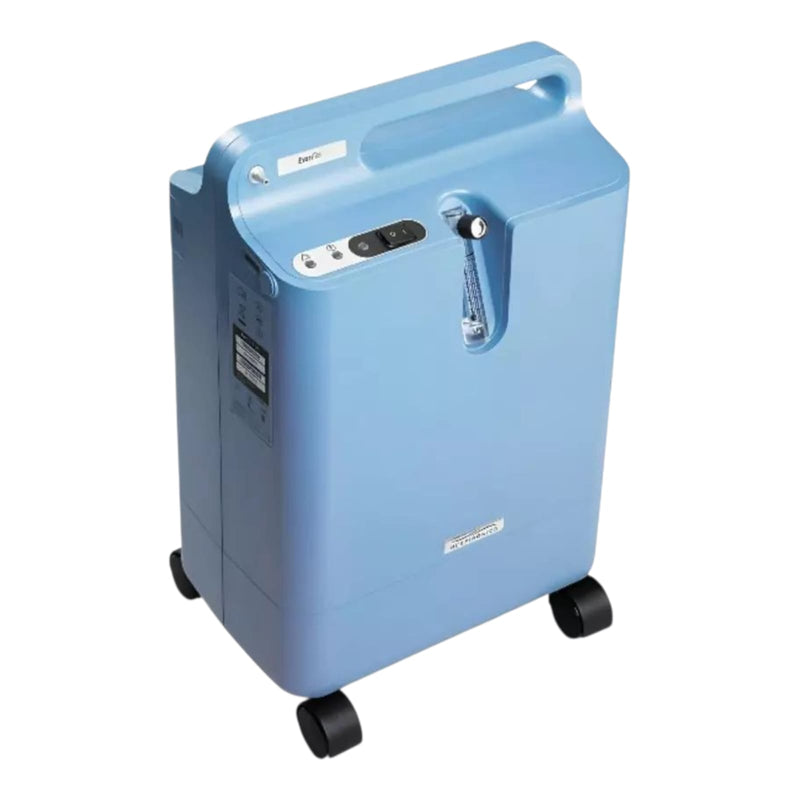

• Compact & Lightweight: Approximately 14 kg, making the unit easier to position and move.

• Quiet Operation: Approximate sound level of 45 dB.

• Energy Efficient: Approximately 350 W power consumption.

• Low-Maintenance Design: Features accessible external and internal filters for routine maintenance.

• Recessed Flow Meter: Helps protect the flow meter from accidental damage.

• Durable Cannula Connection: Features a metal oxygen cannula connection.

• Oxygen Purity Indicator: Available with an OPI (Oxygen Purity Indicator) option according to the supplied information.

• Humidifier Compatibility: Includes a compatible humidifier bottle platform.

• Stationary Design: Designed for home and professional oxygen therapy environments.

• Long-Term Use: The supplied information describes the EverFlo as suitable for continuous/long-term oxygen therapy.

Technical Specifications

Uses & Applications

The Philips EverFlo 5 LPM oxygen concentrator is intended for prescribed oxygen-therapy applications such as:

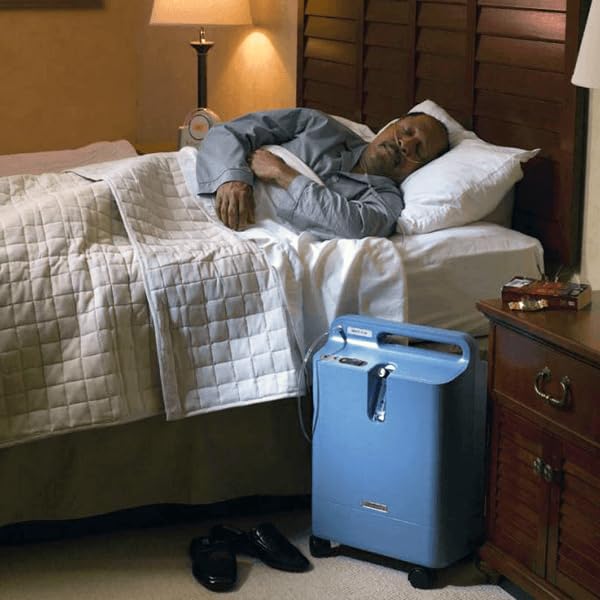

• Home oxygen therapy

• Long-term oxygen therapy

• COPD-related oxygen support

• Hypoxemia-related oxygen therapy

• Post-operative oxygen support

• Pulmonary and respiratory care

• Hospitals

• Clinics

• Nursing homes

• Long-term care facilities

The appropriate oxygen flow rate and duration of therapy should be determined by a qualified healthcare professional.

How Philips EverFlo Works

The EverFlo uses Pressure Swing Adsorption (PSA) technology:

1. Air Intake: The concentrator draws room air containing approximately 21% oxygen.

2. Filtration: Air passes through filters to reduce dust and particles entering the system.

3. Nitrogen Separation: Zeolite sieve beds separate nitrogen from the air.

4. Oxygen Concentration: The remaining oxygen-enriched gas is collected.

5. Oxygen Delivery: Concentrated oxygen is delivered through the outlet at the prescribed flow rate.

6. Monitoring: The system monitors operating conditions, with an OPI option available on applicable configurations.

How to Use Philips EverFlo 5 LPM Oxygen Concentrator

Step 1 – Position the Machine

Place the oxygen concentrator in a well-ventilated area. Keep the vents unobstructed and maintain adequate clearance from walls, curtains, and other objects.

Step 2 – Connect the Accessories

Connect the oxygen tubing and, where prescribed, the humidifier bottle to the appropriate outlet.

Step 3 – Connect the Power

Connect the power cord to the appropriate grounded electrical supply matching the specific EverFlo configuration.

Step 4 – Switch On

Turn the concentrator on and allow the device to begin operation.

Step 5 – Set Oxygen Flow

Adjust the flow meter to the oxygen flow rate prescribed by the physician. Do not change the prescribed flow rate without professional medical guidance.

Step 6 – Begin Oxygen Therapy

Use the supplied nasal cannula or appropriate oxygen delivery interface as instructed by the healthcare professional.

Step 7 – Monitor the Device

Observe the unit's indicators and alarms, including the oxygen purity indication where applicable. If an abnormal warning occurs, follow the manufacturer's troubleshooting instructions.

Maintenance Guide

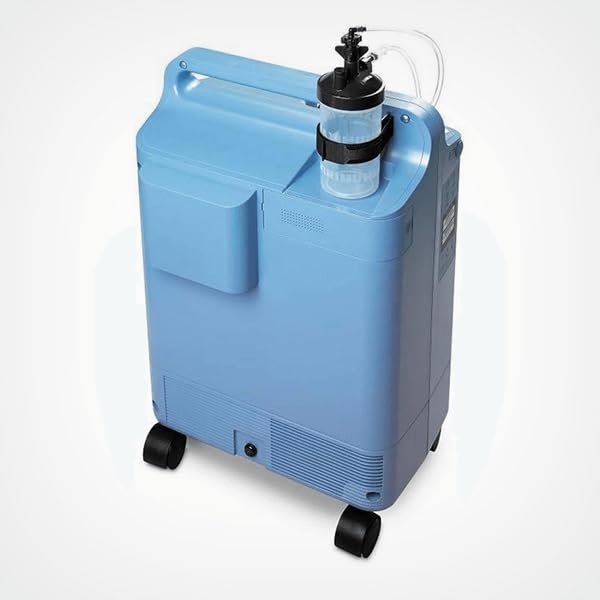

• Inspect the external inlet filter regularly.

• Clean the external filter area according to the manufacturer's recommended maintenance procedure.

• Keep ventilation openings free from dust and obstruction.

• Wipe the external casing with an appropriate clean, dry or slightly damp cloth.

• Replace filters according to the manufacturer's recommended schedule and environmental conditions.

• Keep oxygen tubing and accessories clean and properly connected.

• Do not place the concentrator near heat sources or open flames.

• Service the device through qualified biomedical/technical personnel when required.

What’s in the Box

According to the supplied product information, the package includes:

• Philips EverFlo Oxygen Concentrator

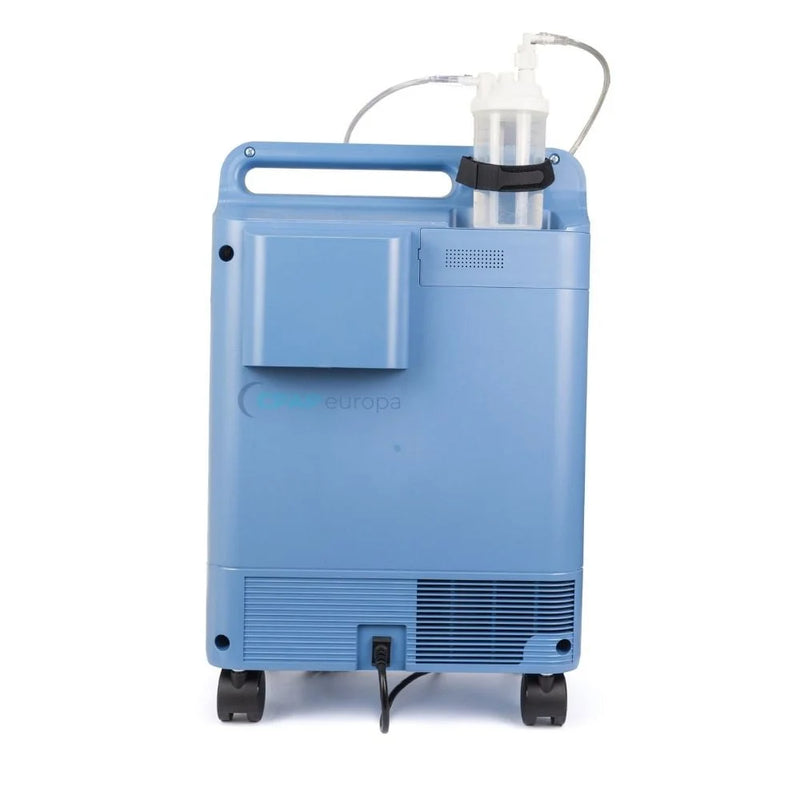

• Power Cable / Power Cord

• Nasal Cannula

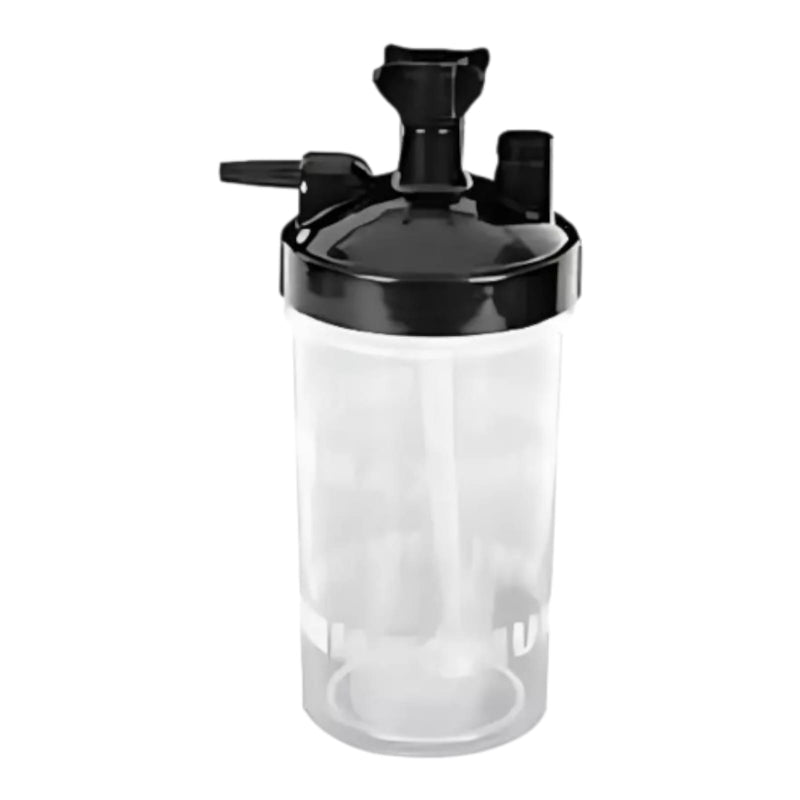

• Humidifier Bottle

• Humidifier Bottle Platform

• Air Inlet Filter

• User Manual / Documentation

Warranty

Manufacturer Warranty: The supplied product information states a 3-year manufacturer warranty for the Philips EverFlo.

Warranty coverage, exclusions, and service conditions should be confirmed for the specific unit and market before purchase.
